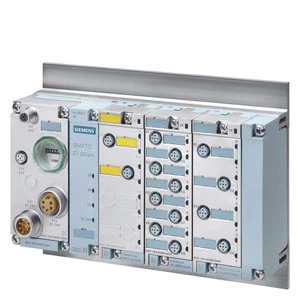

ET200PRO 3F-DO 6ES7148-4FS00-0AB0
Product number
4504831
ET200PRO 3F-DO
SIMATIC DP, ET 200PRO FAILSAFE ELECTRONIC MODULE F-SWICH PROFISAFE, 3 FAILSAFE PP-SWITCHING OUTPUTS TO SAFELY SWITCH THE BACKPLANE RAILS (2L+, F0, F1) 2 FAILSAFE DIGITALE INPUTS, 45 MM, USEABLE UP TO CAT. 4 (EN954)/ SIL3 (IEC61508)
Product details
Technical specifications
Supply voltage DC20.4 - 28.8 V
Voltage type (supply voltage)DC
Number of digital inputs2
Number of digital outputs3
Digital inputs configurableyes
Digital outputs configurableyes
Input current at signal 13.5 mA
Permitted voltage at input-30 - 30 V
Type of voltage (input voltage)DC
Type of digital outputOther
Permitted voltage at output0 - 28.8 V
Type of output voltageDC
Short-circuit protection, outputs availableyes
Number of HW-interfaces industrial Ethernet0
Number of interfaces PROFINET0
Product codes
SAPGCP534
El number4504831
Product number4504831
GTIN/EAN4025515075219
Manufacturer part number6ES7148-4FS00-0AB0
Vendor material number6ES7148-4FS00-0AB0
Basic information
Package measurements (L x W x H)13.9 x 7.5 x 6.6 mm
Package volume0.001 l
Package weight0.196 kg
Base uniteach
Package units1
Usage quantity1
UNSPSC32000000
BrandSIEMENS
Country of OriginDE Germany
Documents (1)
Links
Sustainability info
Global Warming Potential (GWP)
GWP value for A1– A31.526
GWP uniteach
Data source for GWPEandoX
