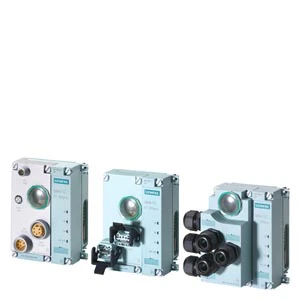

ET200PRO 8/16 F-DI 6ES7194-4DD00-0AA0
Product number
4504847
ET200PRO 8/16 F-DI
SIMATIC DP, ET200PRO CONNECTING MODULE FOR FAILSAFE ELECTRONIC MODULE 8/16 F-DI DC24V/2A
Product details
Technical specifications
With integrated power supplyno
Input voltage DC20.4 - 28.8 V
Type of voltage (input voltage)DC
Max. input current DC8 A
Output voltage DC20.4 - 28.8 V
Type of output voltageDC
Max. output current DC8 A
System accessoryyes
Number of slots1
With pluggable modules, digital I/Oyes
With pluggable modules, analogue I/Ono
With pluggable modules, communication modulesno
With pluggable modules, function and technology modulesno
With pluggable modules, central modulesno
With pluggable modules, othersno
Product codes
SAPGCP623
El number4504847
Product number4504847
GTIN/EAN4025515073079
Manufacturer part number6ES7194-4DD00-0AA0
Vendor material number6ES7194-4DD00-0AA0
Basic information
Package measurements (L x W x H)13.4 x 11.6 x 6.8 mm
Package volume0.001 l
Package weight0.59 kg
Base uniteach
Package units1
Usage quantity1
UNSPSC32000000
BrandSIEMENS
Country of OriginDE Germany
