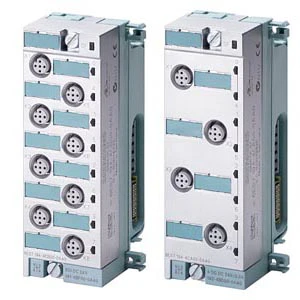

ET200PRO EM 8DI DC24V HF 6ES7141-4BF00-0AB0
Product number
4510703
ET200 PRO EM 8DI 24V HF
SIMATIC DP, ELECTRONIC MODULES FOR ET200PRO 8 DI DC 24V HIGH FEATURE, CHANNEL DIAGNOSTICS SHORT CIRCUIT AND WIRE BREAK INCLUSIVE BUS MODULE CONNECTING MODULE IO 6ES7194-4..00-0AA0 MUST BE ORDERED SEPERATELY
Product details
Technical specifications
Supply voltage DC20.4 - 28.8 V
Voltage type (supply voltage)DC
Number of digital inputs8
Number of digital outputs0
Digital inputs configurableyes
Input current at signal 17 mA
Permitted voltage at input-3 - 30 V
Type of voltage (input voltage)DC
Type of digital outputNone
Type of output voltageDC
Number of HW-interfaces industrial Ethernet0
Number of interfaces PROFINET0
Number of HW-interfaces RS-2320
Number of HW-interfaces RS-4220
Number of HW-interfaces RS-4850
Product codes
SAPGBF391
El number4510703
Product number4510703
GTIN/EAN4025515072584
Manufacturer part number6ES7141-4BF00-0AB0
Vendor material number6ES7141-4BF00-0AB0
Basic information
Package measurements (L x W x H)13.7 x 7.3 x 6.5 mm
Package volume0.001 l
Package weight0.18 kg
Base uniteach
Package units1
Usage quantity1
UNSPSC32000000
BrandSIEMENS
Country of OriginDE Germany
