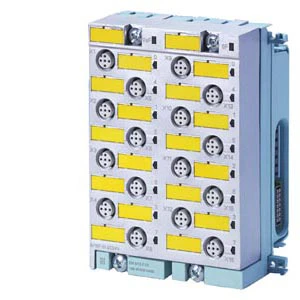

ET200PRO FS EM 8/16 -DI DC24V 6ES7148-4FA00-0AB0
Product number
4510581
ET200PRO FS EM 8/16 -DI DC24V
ET200PRO FS EM 8/16 -DI DC24V SIMATIC DP, ET 200PRO FAILSAFE ELECTRONIC MODULE 8/16 F-DI DC24V PROFISAFE, 90 MM WIDTH, UP TO CATEGORY 4 (EN954-1)/ SIL3 (IEC61508)
Product details
Technical specifications
Supply voltage DC20.4 - 28.8 V
Voltage type (supply voltage)DC
Number of digital inputs16
Number of digital outputs0
Digital inputs configurableyes
Digital outputs configurableyes
Input current at signal 13.7 mA
Permitted voltage at input-30 - 30 V
Type of voltage (input voltage)DC
Type of digital outputNone
Type of output voltageDC
Number of HW-interfaces industrial Ethernet0
Number of interfaces PROFINET0
Number of HW-interfaces RS-2320
Number of HW-interfaces RS-4220
Product codes
SAPGBF576
El number4510581
Product number4510581
GTIN/EAN4025515073062
Manufacturer part number6ES7148-4FA00-0AB0
Vendor material number6ES7148-4FA00-0AB0
Basic information
Package measurements (L x W x H)13.4 x 11.9 x 6.8 mm
Package volume0.001 l
Package weight0.303 kg
Base uniteach
Package units1
Usage quantity1
UNSPSC32000000
BrandSIEMENS
Country of OriginDE Germany
