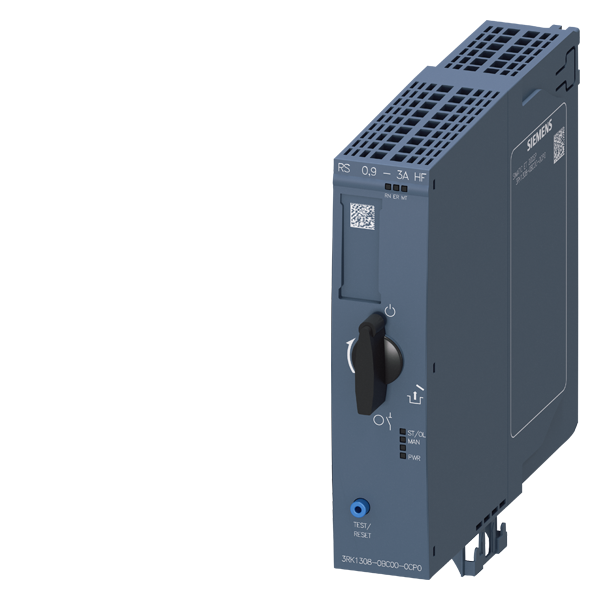

ET200SP MOTORSTARTER RS 3A
Product number
4160864
ET200SP Motorstarter RS 0.9-3.0 A, 30mm bredde
ET200SP motorertarter RS 0.9-3.0 A, 30mm, komplett beskyttelse mot kortslutting og elektronisk overlastvern
Product details
Technical specifications
With short-circuit releaseyes
Voltage type for actuatingDC
Rated operation current Ie3 A
Overload release current setting0.9 - 3 A
Release classOther
With transformerno
Coordination class according to IEC 60947-4-3Class 1
Degree of protection (IP)IP20
Supporting protocol for ASIno
Width30 mm
Height142 mm
Depth150 mm
Product codes
SAPDIO171
El number4160864
Product number4160864
GTIN/EAN4047621012278
Manufacturer part number3RK1308-0BC00-0CP0
Vendor material number3RK1308-0BC00-0CP0
Basic information
Package measurements (L x W x H)161 x 70 x 185 mm
Package volume2.085 l
Package weight0.776 kg
Base uniteach
Package units1
Usage quantity–
UNSPSC32000000
BrandSIEMENS
Country of OriginDE Germany
Sustainability info
Global Warming Potential (GWP)
GWP value for A1– A35.6668
GWP uniteach
Data source for GWPEandoX
