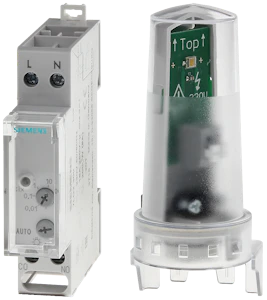

FOTOCELLE 18MM+SENSOR
Product number
1432194
Fotocelle DIN 18MM+ekstern sensor, justerbar opp til 100K LUX
Fotocelle DIN montert med ekstern sensor med jutering helt oppp til 100000 lux for fleksibel løsning for å spare energi.
Product details
Technical specifications
Rated voltage230 V
Rated frequency50 - 60 Hz
Max. incandescent lamp load2000 W
Max. load fluorescent lamp2000 VA
Max. load fluorescent lamp (Duo circuit)1000 VA
Max. load fluorescent lamp (parallel compensated)1000 VA
Max. switching current (cos phi = 0.6)8.7 A
Rated switch current16 A
Adjustment range brightness value2 - 100000 lx
With programmable overnight shutoffno
Push button inputno
Rated voltage light sensor230 V
Max. conductor length light sensor50 m
Protection class light sensorII
Mounting method light sensorWall surface mounted
Product codes
SAPDIN261
El number1432194
Product number1432194
GTIN/EAN4001869521626
Manufacturer part number7LQ2300
Vendor material number7LQ2300
Basic information
Package measurements (L x W x H)97 x 56 x 83 mm
Package volume0.451 l
Package weight0.35 kg
Base uniteach
Package units1
Usage quantity–
UNSPSC32000000
BrandSIEMENS
Country of OriginDE Germany
Documents (3)
Sustainability info
Global Warming Potential (GWP)
GWP value for A1– A31.1336
GWP uniteach
Data source for GWPEandoX
