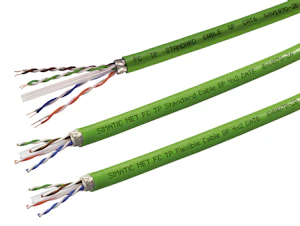

IE FC TP FLEKS.KABEL GP 4X2 6XV1878-2B
Product number
4504890
IE FC TP FLEKS.KABEL GP 4X2
SIMATIC NET, Industriell Ethernet (IE) FastConnect (FC) TP universal fleksibel kabel 4X2, TP-installasjonskabel for CAT6 for kobling till IE FC RJ45 plugg 4X2, AWG24, metervare, max. lengde 1000 m, minste ordre: 20
Product details
Technical specifications
Conductor materialCopper
Diameter conductor0.6 mm
Conductor categoryClass 2 = stranded
Number of cores8
Stranding elementPairs
Core identificationColour
Screen over stranding elementNone
Screen over strandingFoil + braiding
Suitable for underground installationno
Material outer sheathPolyvinyl chloride (PVC)
Colour outer sheathGreen
Reaction-to-fire according to EN 13501-6: ClassEca
Reaction-to-fire according to EN 13501-6: Smoke productionNone
Reaction-to-fire according to EN 13501-6: Flaming droplets/particlesNone
Reaction-to-fire according to EN 13501-6: AcidityNone
Product codes
SAPGCP647
El number4504890
Product number4504890
GTIN/EAN4019169853385
Manufacturer part number6XV1878-2B
Vendor material number6XV1878-2B
Basic information
Package measurements (L x W x H)1 x 1 x 1 mm
Package volume0 l
Package weight0.072 kg
Base unitm
Package units1
Usage quantity1
UNSPSC32000000
BrandSIEMENS
Country of OriginDE Germany
Documents (1)
Links
Sustainability info
Global Warming Potential (GWP)
GWP value for A1– A30.3783
GWP unitm
Data source for GWPEandoX
