KOMPLETT TRAN RØD KNAPP,1NC,
Product number
4331679

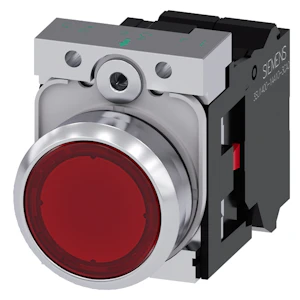

SIRIUS ACT Betjeningsmateriell Komplett tran rød knapp,1NC,
Komplett transparent rød tryknapp med holder og 1NC fjærklemmer.22MM blank metall design med 230 V AC/DC LED
Product details
Technical specifications
Number of command positions1
Type of buttonMushroom
Colour buttonRed
Hole diameter22.3 mm
Width opening29.5 mm
Height opening11 mm
Suitable for lightingyes
Switching function latchingno
Spring-returnno
Supply voltage lamp230 V
Number of contacts as normally open contact0
Number of contacts as normally closed contact1
Number of contacts as change-over contact0
With front ringyes
Material front ringPlastic
Product codes
SAPDIQ355
El number4331679
Product number4331679
GTIN/EAN4011209966475
Manufacturer part number3SU1156-0AB20-3CA0
Vendor material number3SU1156-0AB20-3CA0
Basic information
Package measurements (L x W x H)200 x 150 x 30 mm
Package volume0.9 l
Package weight10.2 kg
Base uniteach
Package units1
Usage quantity–
UNSPSC32000000
BrandSIEMENS
Country of OriginDE Germany
