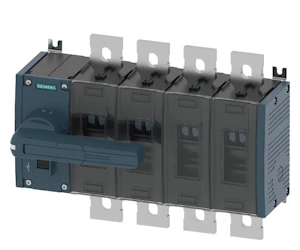

LASTBRYTER 800A,ST4,4P,VRIDER,BOLT
Product number
4332836
Lastbr. 800A, ST4, 4P, med vrider flat terminal
Lastbryter 800A, ST 4, 4P, front betjent venstre ,komplett med grå vrider flat terminal
Product details
Technical specifications
Version as main switchyes
Version as maintenance-/service switchyes
Version as safety switchyes
Version as emergency stop installationno
Version as reversing switchno
Number of switches1
Max. rated operation voltage Ue AC690 V
Rated permanent current Iu800 A
Rated permanent current at AC-21, 400 V800 A
Rated operation power at AC-23, 400 V400 kW
Switching power at 400 V355 kW
Number of poles4
Number of auxiliary contacts as normally closed contact8
Number of auxiliary contacts as normally open contact8
Number of auxiliary contacts as change-over contact0
Product codes
SAPDIQ563
El number4332836
Product number4332836
GTIN/EAN4001869473215
Manufacturer part number3KD4842-0QE10-0
Vendor material number3KD4842-0QE10-0
Basic information
Package measurements (L x W x H)343 x 258 x 212 mm
Package volume18.761 l
Package weight10.2 kg
Base uniteach
Package units1
Usage quantity–
UNSPSC32000000
BrandSIEMENS
Country of OriginCN China
