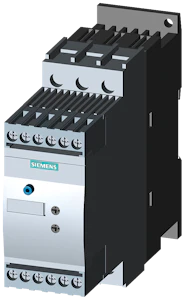

MYKST.38A 200-480VAC 24V AC/DC 3RW3028-1BB04
Product number
4161797
3RW30 mykstarter38A 200-480VAC 24V AC/DC
SIRIUS SOFT STARTER, SIZE S0, 38A, 18.5KW/400V, 40 DEGREES, 200-480V AC, 24V AC/DC, SCREW TERMINALS
Product details
Technical specifications
Rated operation current Ie at 40 °C Tu38 A
Rated operating voltage Ue200 - 480 V
Rated power three-phase motor, inline, at 230 V11 kW
Rated power three-phase motor, inline, at 400 V18.5 kW
Rated power three-phase motor, inside delta, at 230 V-99999 kW
Rated power three-phase motor, inside delta, at 400 V-99999 kW
FunctionSingle direction
Internal bypassyes
With displayno
Torque controlno
Rated surrounding temperature without derating40 °C
Rated control supply voltage AC 50 Hz24 - 24 V
Rated control supply voltage AC 60 Hz24 - 24 V
Rated control supply voltage DC24 - 24 V
Voltage type for actuatingAC/DC
Product codes
SAPGBQ167
El number4161797
Product number4161797
GTIN/EAN4011209719460
Manufacturer part number3RW3028-1BB04
Vendor material number3RW3028-1BB04
Basic information
Package measurements (L x W x H)183 x 155 x 58 mm
Package volume1.645 l
Package weight0.625 kg
Base uniteach
Package units1
Usage quantity1
UNSPSC39121009
BrandSIEMENS
Country of OriginNO Norway
