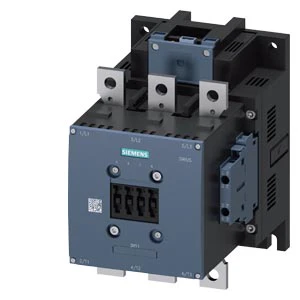

S10 KONTAKTOR, 132KW/400V/AC-3 3RT1065-6AF36
Product number
4164755
S10 kontaktor, 132KW/400V/AC-3
CONTACTOR, 132KW/400V/AC-3 AC(40...60HZ)/DC OPERATION UC 110-127V AUXILIARY CONTACTS 2NO+2NC 3-POLE, SIZE S10 BAR CONNECTIONS CONVENT. OPERATING MECHANISM SCREW TERMINAL
Product details
Technical specifications
Rated control supply voltage AC 50 Hz110 - 127 V
Rated control supply voltage AC 60 Hz110 - 127 V
Rated control supply voltage DC110 - 127 V
Voltage type for actuatingAC/DC
Number of normally closed contacts as main contact-99999
Number of normally open contacts as main contact3
Type of electrical connection of main circuitScrew connection
Rated operation current Ie at AC-1, 400 V330 A
Rated operation current Ie at AC-3, 400 V265 A
Rated operation power at AC-3, 400 V132 kW
Rated operation current Ie at AC-4, 400 V230 A
Rated operation power at AC-4, 400 V132 kW
Number of auxiliary contacts as normally open contact2
Number of auxiliary contacts as normally closed contact2
Suitable for distribution boardyes
Product codes
SAPGCB182
El number4164755
Product number4164755
GTIN/EAN4011209507913
Manufacturer part number3RT1065-6AF36
Vendor material number3RT1065-6AF36
Basic information
Package measurements (L x W x H)196 x 265 x 234 mm
Package volume12.154 l
Package weight6.57 kg
Base uniteach
Package units1
Usage quantity1
UNSPSC32000000
BrandSIEMENS
Country of OriginDE Germany
Customs tariff code85364900
