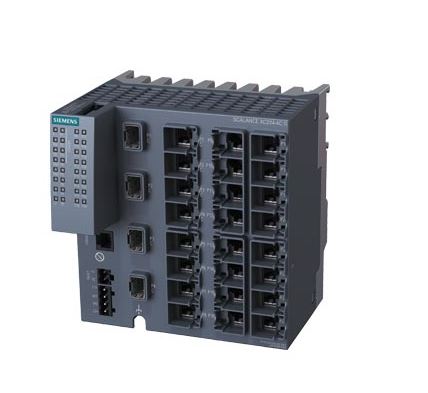

SCALANCE XC224-4C G
Product number
4361962
SCALANCE XC224-4C G managed Layer2IE-switch 20x10/100/1000Mbps RJ45 porter+4x1000 Mbps combo porter
SCALANCE XC224-4C G managed Layer 2 IE-switch 20 x 10/100/1000 Mbps RJ45 porter + 4 x 1000 Mbps combo porter (enten 1000 Mbps SFPs eller 10/100/1000 Mbps RJ45 porter kan brukes) + 1 x console RJ11 port, LED-diagnose, IP20, 24V DC redundant strømforsyning, temperaturområde: -40 ... +70 °C
Product details
Technical specifications
Ethernetyes
Number of ports 10/100 Mbps RJ450
Number of ports 10/100/1000 Mbps RJ4524
Number of ports 1000 Mbps RJ450
Number of ports 10 Gbps RJ450
Number of ports 10 Gbps Mini GBIC0
Number of ports 100/1000 Mbps Mini GBIC0
Number of ports 1000 Mbps Mini GBIC0
Number of ports 40 Gbps Mini GBIC0
Number of ports 100 Gbps Mini GBIC0
Number of combination-ports RJ45/Mini GBIC24
Number of ports 1000 Mbps GBIC0
Number of ports 10/100 Mbps M120
Number of ports 100 Mbps SC0
Number of ports 1000 Mbps SC (SX)0
Product codes
SAPDIQ616
El number4361962
Product number4361962
GTIN/EAN4047622642566
Manufacturer part number6GK5224-4GS00-2AC2
Vendor material number6GK5224-4GS00-2AC2
Basic information
Package measurements (L x W x H)123 x 123 x 120 mm
Package volume1.815 l
Package weight6.2 kg
Base uniteach
Package units1
Usage quantity–
UNSPSC32000000
BrandSIEMENS
Country of OriginDE Germany
Documents (2)
Sustainability info
Global Warming Potential (GWP)
GWP value for A1– A35.1089
GWP uniteach
Data source for GWPEandoX
