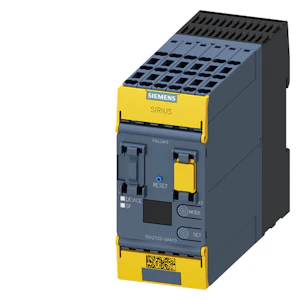

SIKKHERH.RELE 20FDI 4FDQ,2DQ F
Product number
4301077
SIRIUS 3SK2 Sikkerhetsrele, 20 F-DI,4 F-DO, fjærklemmer
3SK2 SIRIUS sikkerhetsrele, basic enhet, 3SK2 serie 20 F-DI, 4 F-DQ, 2 DQ, 24 V DC parametiserbar via SIRIUS safety ES bredde 45mm, fjærklemmer, opp til SIL3 (IEC 61508) opp til performance level e, (ISO 13849-1) 3SK1 utgangs utvidelser og 3RM1 fail-safe motorstarter tilkoblingsmulighet via tilkoblingsenhet
Product details
Technical specifications
ModelOther
Suitable for rail mountingno
With detachable clampsyes
Type of electric connectionSpring clamp connection
Suitable for monitoring of position switchesyes
Suitable for monitoring of emergency-stop circuitsyes
Suitable for monitoring of valvesyes
Suitable for monitoring of optoelectronic protection equipmentyes
Suitable for monitoring of magnetic switchesyes
Suitable for monitoring of proximity switchesyes
With muting functionno
Number of outputs, safety related, undelayed, with contact0
Number of outputs, safety related, undelayed, semiconductors4
Stop category according to IEC 602040 + 1
SIL according to IEC 615083
Product codes
SAPDIP053
El number4301077
Product number4301077
GTIN/EAN4047621004587
Manufacturer part number3SK2122-2AA10
Vendor material number3SK2122-2AA10
Basic information
Package measurements (L x W x H)153 x 111 x 62 mm
Package volume1.053 l
Package weight0.57 kg
Base uniteach
Package units1
Usage quantity–
UNSPSC32000000
BrandSIEMENS
Country of OriginDE Germany
