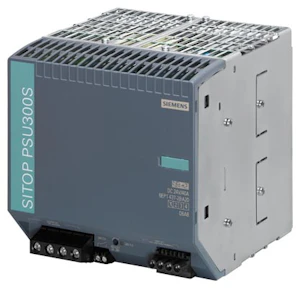

SITOP PSU300S 24V/40A 6EP1437-2BA20
Product number
4504632
SITOP PSU300S 24V/40A
SITOP PSU300S 40A Stabilisert strømforsyning Inngang: 400-500V 3AC Utgang: 24V DC/40 A
Product details
Technical specifications
Voltage type (supply voltage)AC
1st secondary output voltage24.0 - 24.0 V
Max. output current 140 A
Secondary voltage adjustableyes
Nominal value output voltage 124 V
Nominal value output current 140 A
Short-circuit-proofyes
Rated supply voltage AC 50 Hz400 - 400 V
Rated supply voltage AC 60 Hz500 - 500 V
Output voltage stabilizedyes
Power output960 W
Stabilizedyes
Type of electric connectionScrew connection
Suitable for rail mountingyes
Suitable for distribution boardyes
Product codes
SAPGCP472
El number4504632
Product number4504632
GTIN/EAN4025515151395
Manufacturer part number6EP1437-2BA20
Vendor material number6EP1437-2BA20
Basic information
Package measurements (L x W x H)225 x 220 x 185 mm
Package volume9.158 l
Package weight3.1 kg
Base uniteach
Package units1
Usage quantity1
UNSPSC32000000
BrandSIEMENS
Country of OriginNO Norway
