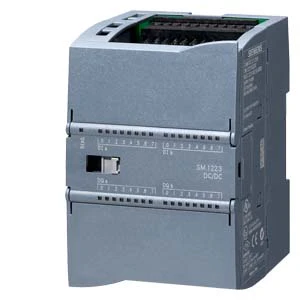

SM1223,16X24VDCIN/16X24VDC OUT 6ES7223-1BL32-0XB0
Product number
4510347
SM 1223, 16 x 24V DC input /16 x 24V DC output
SIMATIC S7-1200, DIGITAL I/O SM 1223, 16DI / 16DO, 16DI DC 24 V, SINK/SOURCE, 16DO, TRANSISTOR 0.5A
Product details
Technical specifications
Supply voltage DC20.4 - 28.8 V
Voltage type (supply voltage)DC
Number of digital inputs16
Number of digital outputs16
Digital inputs configurableyes
Digital outputs configurableyes
Input current at signal 14 mA
Permitted voltage at input0 - 30 V
Type of voltage (input voltage)DC
Type of digital outputTransistor
Output current0.5 A
Permitted voltage at output20.4 - 28.8 V
Type of output voltageDC
Short-circuit protection, outputs availableno
Redundancyno
Product codes
SAPGBQ614
El number4510347
Product number4510347
GTIN/EAN6940408101715
Manufacturer part number6ES7223-1BL32-0XB0
Vendor material number6ES7223-1BL30-0XB0
Basic information
Package measurements (L x W x H)11.1 x 8.8 x 8.5 mm
Package volume0.001 l
Package weight0.282 kg
Base uniteach
Package units1
Usage quantity1
UNSPSC32000000
BrandSIEMENS
Country of OriginDE Germany
