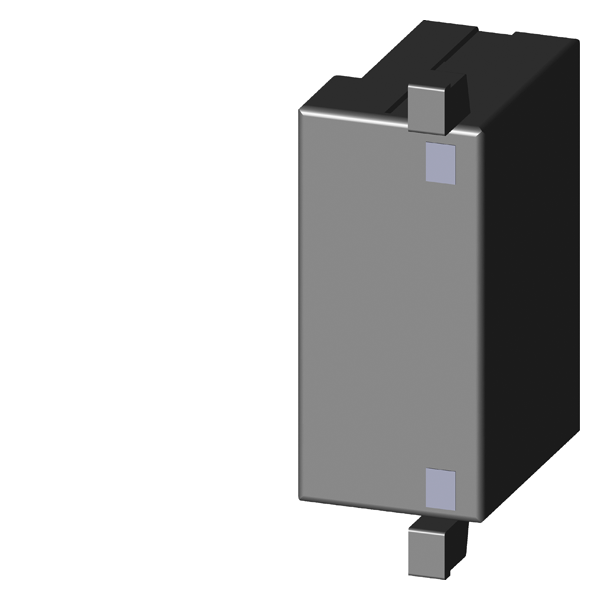

VARISTOR PROTECTOR 3RT2926-1BB00
Product number
4162227
SIRIUS NG CONTACTORS ACCESSORY
Surge suppressor, varistor, 24 ... 48 V AC, 24 ... 70 V DC, for motor contactors Size S0 Thanks to the slot already available in the contactor, the surge suppressor can easily be inserted without any effect on the external dimensions.
Simple, efficient and always up to date - SIRIUS modular system.
Product details
Technical specifications
FunctionVaristor (voltage-sensitive resistor)
Voltage type (operating voltage)AC/DC
Operating voltage AC 50 Hz24-48 V
Operating voltage AC 60 Hz24-48 V
Operating voltage DC24-70 V
With LED indicationno
Product codes
SAPCOX072
El number4162227
Product number4162227
GTIN/EAN4011209779310
Manufacturer part number3RT2926-1BB00
Vendor material number3RT2926-1BB00
Basic information
Package measurements (L x W x H)56 x 31 x 13 mm
Package volume0.023 l
Package weight0.004 kg
Base uniteach
Package units1
Usage quantity–
UNSPSC39121610
BrandSIEMENS
Country of OriginCZ Czech Republic
