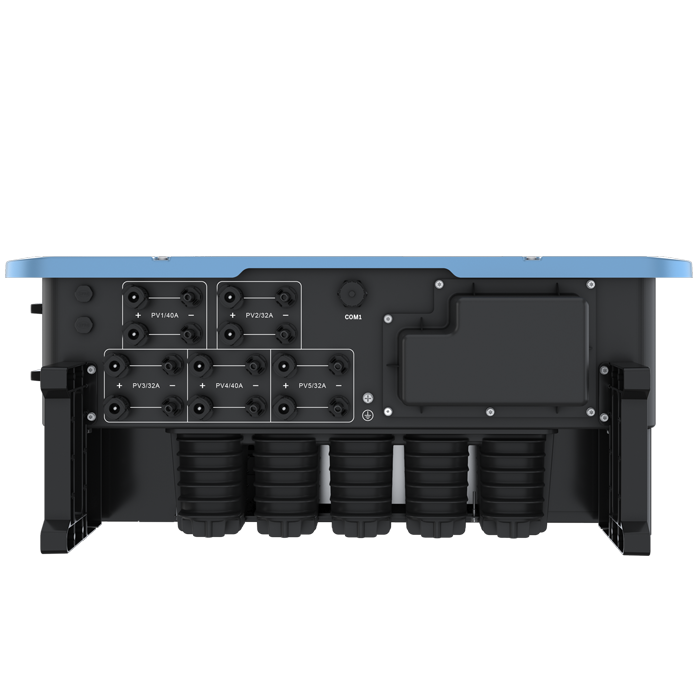

ASW60K-LT-G3 W/ AFCI
Product number
7050066
Solplanet ASW 60kW LT-G3 Trefase inverter for 400V TN nett. 5 MPPT, 2 utganger per MPPT
60 kW, 3-fase string inverter med Ai Dongle LAN/WLAN, 40A2+32A3, DC m/SPD, AC m/MOV, DC m/Sunclix, AC m/OT, m/SPS, smart målergrensesnitt, lysbuevern innebygd, IP66-klassifisering.
Product details
Technical specifications
Max. input power DC90000 W
Max. input voltage DC1100 V
Max. input current DC per MPP tracker40 A
Rated MPP-voltage1000 - 2000 V
Max. short circuit current per MPPT60 A
Number of independent MPPT inputs5
Max. efficiency99 %
European efficiency98 %
With transformerno
Integrated DC switchyes
With data loggingyes
DisplayNone
Wirelessyes
Built-in batteryno
Suitable for outdoor installationyes
Product codes
SAPDII734
El number7050066
Product number7050066
GTIN/EAN6975870781011
Manufacturer part numberSC0060-60-00-AHP
Vendor material numberSC0060-60-00-AHP
Basic information
Package measurements (L x W x H)670 x 270 x 640 mm
Package volume115.776 l
Package weight42.67 kg
Base uniteach
Package units1
Usage quantity–
UNSPSC32000000
BrandSOLPLANET
Country of OriginCH Switzerland
Customs tariff code85044010
