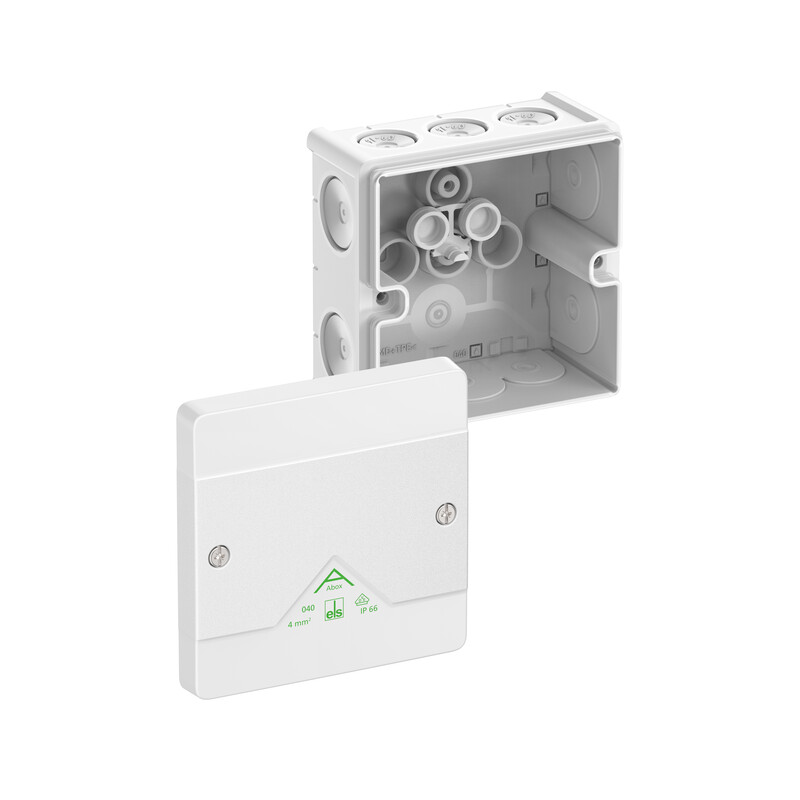

JUNCTION BOX W. MEMBRAIN ABOX ABOX 040-L/W
Product number
1236652
Forgreningsboks, IP66, max. 4², IK07, KL II, Ui 1000V AC, Ui 1000V DC, DLG, VDE, halogenfri
Forgreningsboks, med beskyttelsesklasse IP66, Nominelt tverrsnitt 4mm², Sertifisert til VDE (DIN EN 60670-1/-22 (VDE 0606-1/-22)), DLG (ammoniakkresistens), Selv tettende, fleksible innsats membraner, M20/M25, Tetningsområde 4-21mm, (1 bak, 10 Side), innvendige feste-punkt, for standard innendørs og beskyttet utendørs installasjoner, hvit, Ui=1000 V AC, uten klemmer Dimensjoner: 102 x 102 x 57mm
Product details
Technical specifications
ModelJunction box
Equipped withNone
Max. conductor cross section4 mm²
Number of poles0
Number of clamp positions per pole0
ShapeSquare
Mounting methodWall-/ceiling mounting
Mounting in the soilno
Mounting under waterno
Number of inlets11
Inlet from the rearyes
Length102 mm
Width102 mm
Depth57 mm
Number of cable glands included0
Product codes
SAPDFL515
El number1236652
Product number1236652
GTIN/EAN4013902661596
Manufacturer part number80410001
Vendor material number80410001
Basic information
Package measurements (L x W x H)100 x 100 x 60 mm
Package volume0.593 l
Package weight0.13 kg
Base uniteach
Package units1 / 60 / 1080 / 2520
Usage quantity–
UNSPSC39121332
BrandSPELSBERG
Country of OriginDE Germany
Customs tariff code85389000
