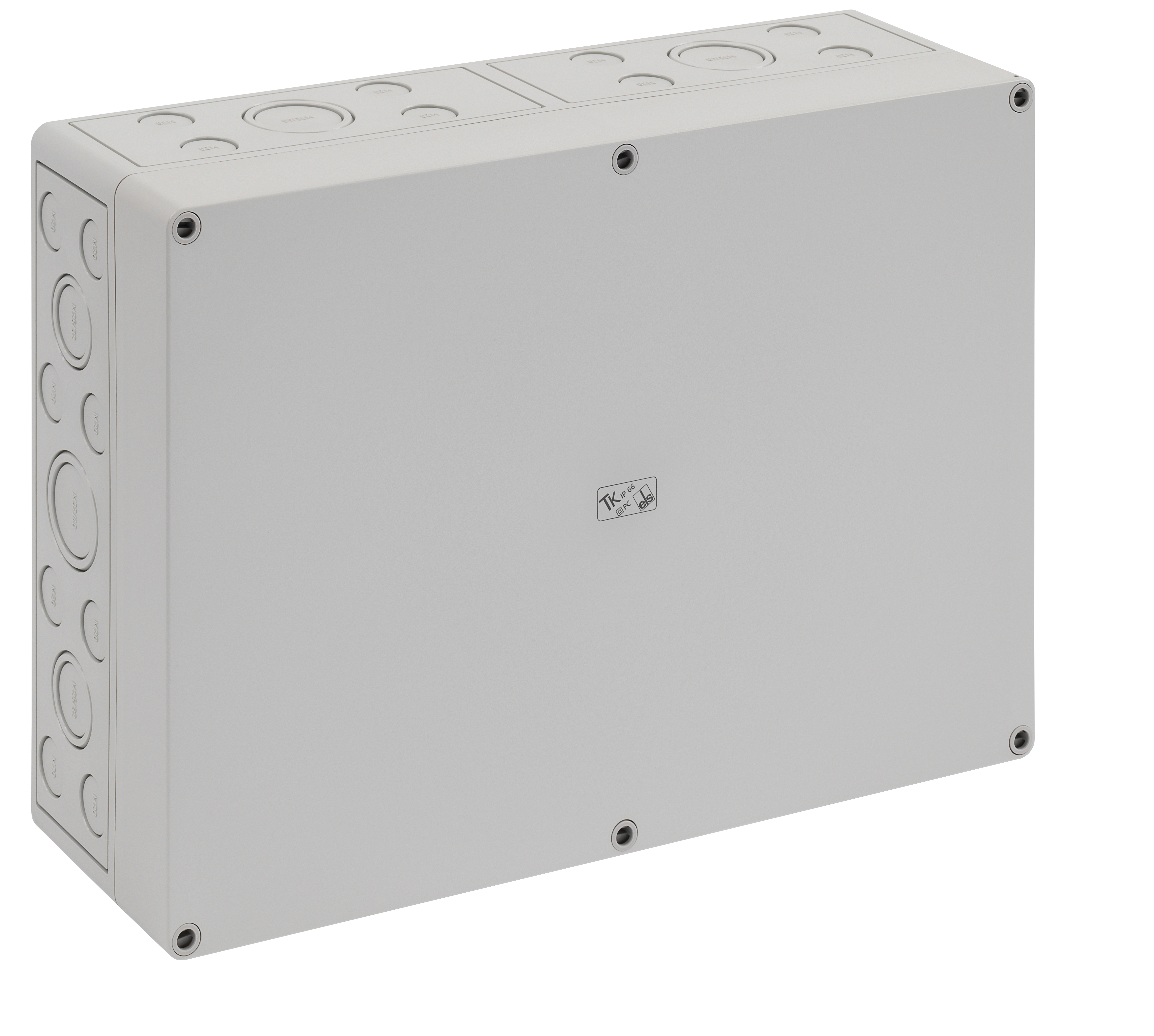

BOX TK ENCLOSURE TK PC 3625-11-M
Product number
2543425
Tom kapsling, IP66, IK08, Beskyttelsesklasse II, Ui 690V AC, Ui 1000V DC, UL, DLG, DNV, halogenfri
Tom kapsling, med beskyttelsesklasse IP66, Polykarbonat, Sertifisert til UL (UL 50 & CSA 22.2 No. 94.1-07, UL 50E & CSA C22.2 No. 94.2-07), DLG (ammoniakkresistens), DNV (Klasse: Skip og offshoreinstallasjoner), Ui=690V AC, Ui=1000V DC, innvendige feste-punkt, for installasjoner i industriarenaen og vernede uteområder, boks: Polykarbonat, grå, lokk: Polykarbonat, glassfiberforsterket, grå, Push-out membran, M20/M25/M32/M40, (42 Side)Dimensjoner: 361 x 254 x 111mm
Product details
Technical specifications
Width361 mm
Height254 mm
Depth111 mm
MaterialPlastic
Material qualityOther
Surface finishingUntreated
ColourGrey
RAL-number7035
Freestandingno
Floor standing wall modelno
Suitable for wall mountingyes
Corner modelno
Intermediate mountingno
Couplableno
With mounting plateno
Product codes
SAPCFL091
El number2543425
Product number2543425
GTIN/EAN4013902861835
Manufacturer part number12741201
Vendor material number12741201
Basic information
Package measurements (L x W x H)254 x 111 x 361 mm
Package volume10.178 l
Package weight1.467 kg
Base uniteach
Package units1
Usage quantity–
UNSPSC39121303
BrandSPELSBERG
Country of OriginDE Germany
Customs tariff code85389000
