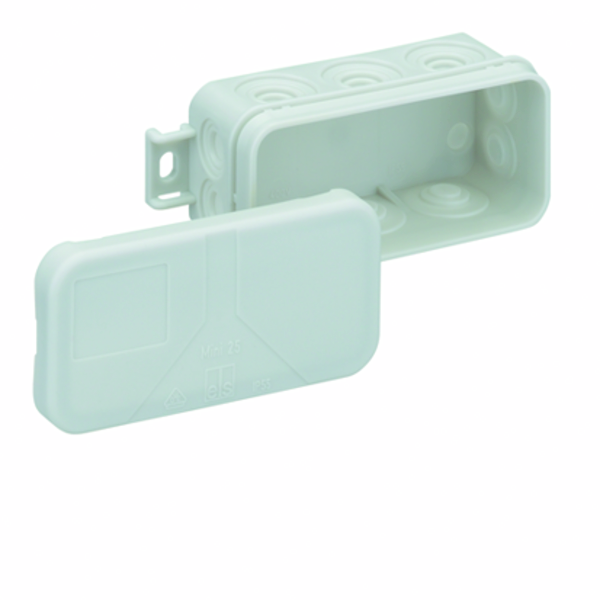

JUNCTION BOX RED RANGE JUNCTION BOX MINI 25-L
Product number
1239116
31090801, koblingsboks, tom, Mini 25-L, IP55, grå,
Koblingsboks, tom, IP55, grå, halogenfri , 10 innganger i siden + 2 på undersiden, integrert membran for kabelgjennomføring, koblingsboksen er i hht DIN IEC 60998-2-5.
Product details
Technical specifications
ModelJunction box
Equipped withNone
Max. conductor cross section2.5 mm²
ShapeRectangular
Mounting methodWall-/ceiling mounting
Mounting in the soilno
Mounting under waterno
For tube diameterOther
Number of inlets10
Inlet from the rearyes
Length43 mm
Width89 mm
Depth38 mm
Diameter89 mm
Connectableno
Product codes
SAPCFL178
El number1239116
Product number1239116
GTIN/EAN4013902020041
Manufacturer part number31090801
Vendor material number1239116
Basic information
Package measurements (L x W x H)95 x 40 x 30 mm
Package volume0.114 l
Package weight0.02 kg
Base uniteach
Package units1 / 10 / 60 / 4200
Usage quantity–
UNSPSC39121303
BrandSPELSBERG
Country of OriginDE Germany
Customs tariff code85381000
