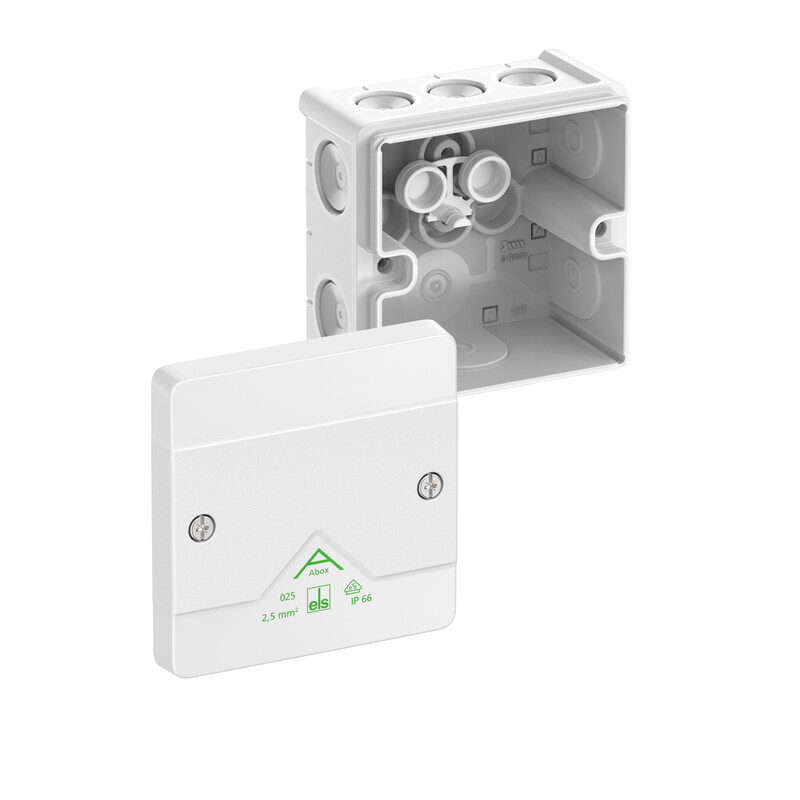

JUNCTION BOX W. MEMBRAIN ABOX ABOX 025-L/W
Product number
1236651
Forgreningsboks, IP66, max. 2,5², IK07, KL II, Ui 1000V AC, Ui 1000V DC, DLG, VDE, halogenfri
Forgreningsboks, med beskyttelsesklasse IP66, Nominelt tverrsnitt 2,5mm², Sertifisert til VDE (DIN EN 60670-1/-22 (VDE 0606-1/-22)), DLG (ammoniakkresistens), Selv tettende, fleksible innsats membraner, M16/M20, Tetningsområde 4-16mm, (1 bak, 8 Side), innvendige feste-punkt, for standard innendørs og beskyttet utendørs installasjoner, hvit, Ui=1000 V AC, uten klemmer Dimensjoner: 87 x 87 x 52mm
Product details
Technical specifications
ModelJunction box
Equipped withNone
Max. conductor cross section2.5 mm²
Number of poles0
Number of clamp positions per pole0
ShapeSquare
Mounting methodWall-/ceiling mounting
Mounting in the soilno
Mounting under waterno
Number of inlets11
Inlet from the rearyes
Length87 mm
Width87 mm
Depth52 mm
Number of cable glands included0
Product codes
SAPDFL514
El number1236651
Product number1236651
GTIN/EAN4013902663125
Manufacturer part number80210001
Vendor material number80210001
Basic information
Package measurements (L x W x H)85 x 85 x 50 mm
Package volume0.394 l
Package weight0.1 kg
Base uniteach
Package units1 / 60 / 1440 / 3240
Usage quantity–
UNSPSC39121332
BrandSPELSBERG
Country of OriginDE Germany
Customs tariff code85389000
