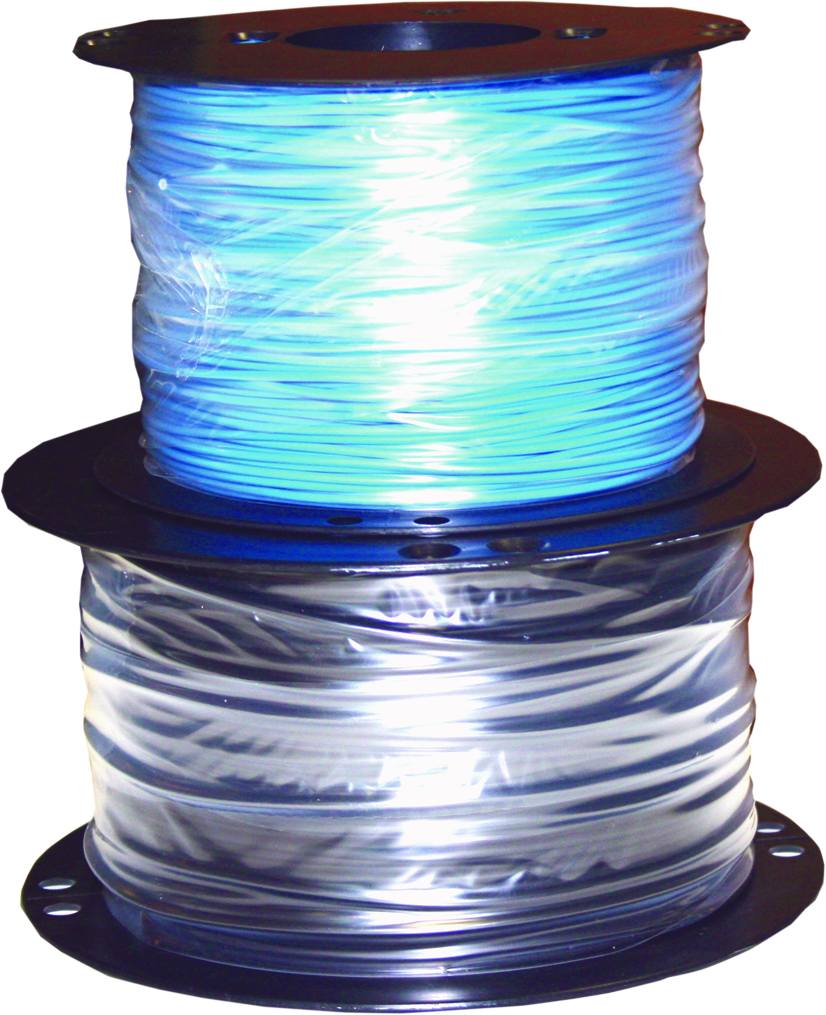

RQ 90 TEC H07Z-K 35MM² GU/ Koblingsledning
Product number
1011918
kap. Fleksibel og lett å avisolere.
Halogenfri monteringsledning utviklet til montering av tavler og fordelingsskap. EN 50525-3-4
Product details
Technical specifications
Conductor materialCopper
Conductor surfaceBare
Nominal cross section conductor35 mm²
Conductor categoryClass 5 = flexible
Number of strands per conductor455
Strand diameter0.3 mm
Conductor resistance at 20 °C0.554 Ohm/km
Screen over stranding elementNone
Screen over strandingNone
Material core insulationOther
Core identificationColour
Suspension elementNone
Armouring/reinforcementNone
Flame retardant according to IEC 60332-1-2yes
Low smoke according to EN IEC 61034-2yes
Product codes
SAPCFF855
El number1011918
Product number1011918
GTIN/EAN7042720119184
Manufacturer part number1011918
Vendor material number1011918
Basic information
Package measurements (L x W x H)1000 x 10.2 x 10.2 mm
Package volume0.104 l
Package weight0.347 kg
Base unitm
Package units1 / 500 / 500
Usage quantity–
UNSPSC32000000
BrandTECCON
Country of OriginNO Norway
Customs tariff code85444931
Sustainability info
Global Warming Potential (GWP)
GWP value for A1– A30.
GWP unitm
Data source for GWPco2data.fi
ID from emition database7000000480
