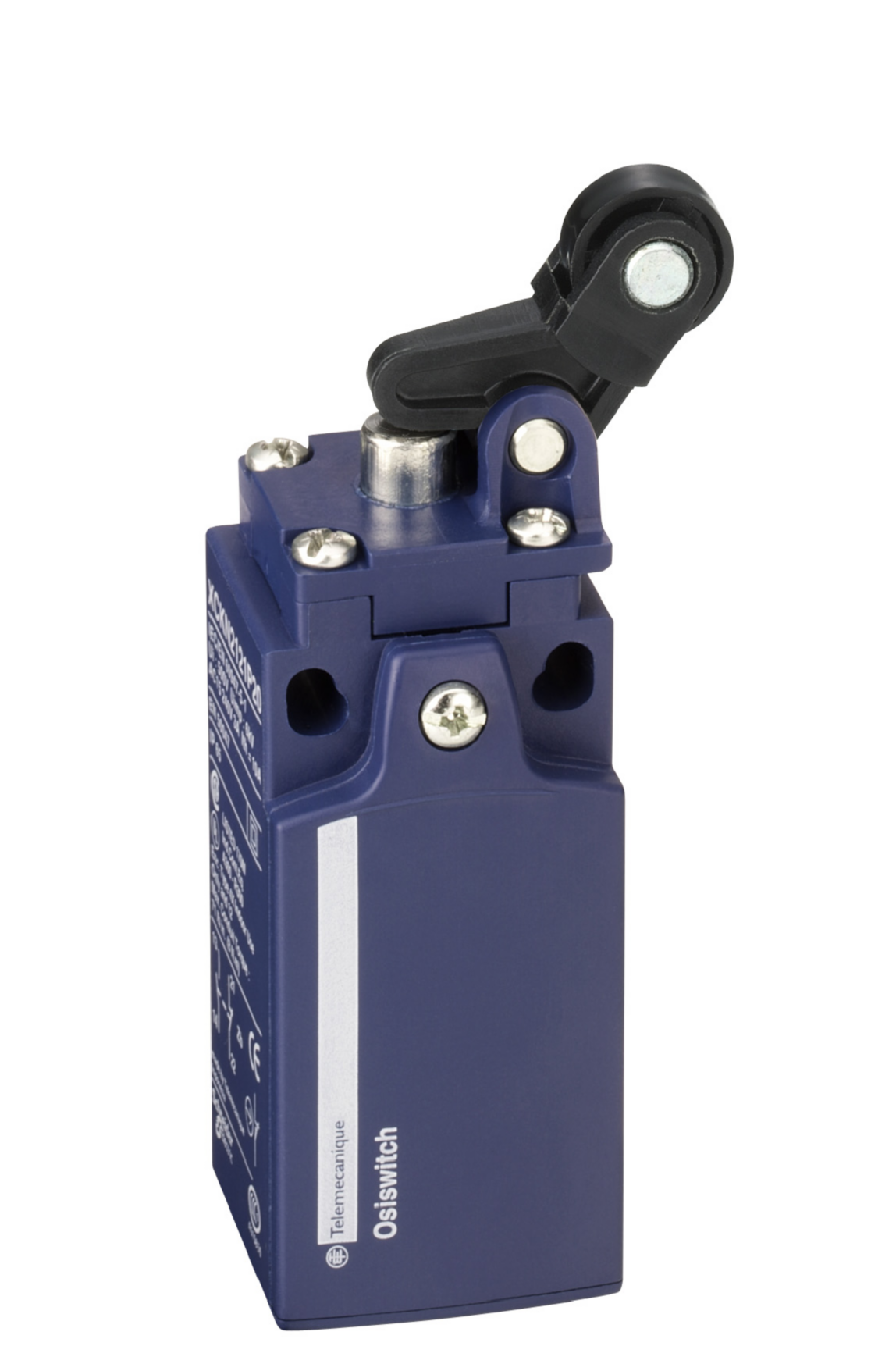

ENDEBR.STEMPL HJ/ARM NC+NO M20 XCKN2127P20
Product number
4354354
Endebryter stempl hj/arm NC+NO M21
Endebryter stempel hjul med arm NC+NO, kabelinngang M20
Product details
Technical specifications
Width sensor42.5 mm
Diameter sensor0 mm
Height of sensor96 mm
Length of sensor30 mm
Rated operation current Ie at AC-15, 24 V0 A
Rated operation current Ie at AC-15, 125 V0 A
Rated operation current Ie at AC-15, 230 V3 A
Rated operation current Ie at DC-13, 24 V0 A
Rated operation current Ie at DC-13, 125 V0 A
Rated operation current Ie at DC-13, 230 V0.1 A
Switching functionQuick-break switch
Switching function latchingno
Output electronicno
Forced openingyes
Number of safety auxiliary contacts0
Product codes
SAPGCN129
El number4354354
Product number4354354
GTIN/EAN3666916055175
Manufacturer part numberXCKN2127P20
Vendor material numberXCKN2127P20
Basic information
Package measurements (L x W x H)140 x 500 x 100 mm
Package volume7 l
Package weight0.071 kg
Base uniteach
Package units20
Usage quantity1
UNSPSC39121500
BrandTELEMECANIQUE
Country of OriginNO Norway
Customs tariff code85364900
Sustainability info
Global Warming Potential (GWP)
GWP value for A1– A30.3469
GWP uniteach
Data source for GWPEandoX
