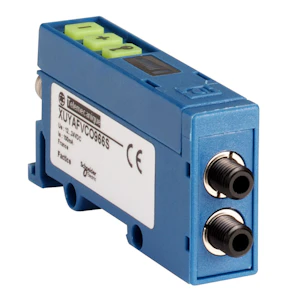

FORSTERKER GLASSFIBER M8PLUGG XUYAFVCO946S
Product number
4394189
FORSTERKER GLASSFIBER M8
FORSTERKER GLASSFIBER M8 plugg
Product details
Technical specifications
Number of semiconductor outputs with signalling function1
Number of contact energized outputs with signalling function0
Analogue output 0 V ... 10 Vno
Analogue output 0 mA ... 20 mAno
Analogue output 4 mA ... 20 mAno
Analogue output -10 V ... +10 Vno
Type of electric connectionCable radial
Type of switching outputPNP/NPN
Type of switch functionProgrammable/configurable
With blanking functionno
Operation agent-safety classSafety class 0
Rated control supply voltage DC12 - 24 V
Voltage typeAC/DC
Width amplifier13 mm
Height amplifier30 mm
Product codes
SAPGCO094
El number4394189
Product number4394189
GTIN/EAN3666916038048
Manufacturer part numberXUYAFVCO946S
Vendor material numberXUYAFVCO946S
Basic information
Package measurements (L x W x H)70 x 130 x 36 mm
Package volume0.328 l
Package weight0.047 kg
Base uniteach
Package units1 / 35
Usage quantity1
UNSPSC39121528
BrandTELEMECANIQUE
Country of OriginNO Norway
Customs tariff code85364900
