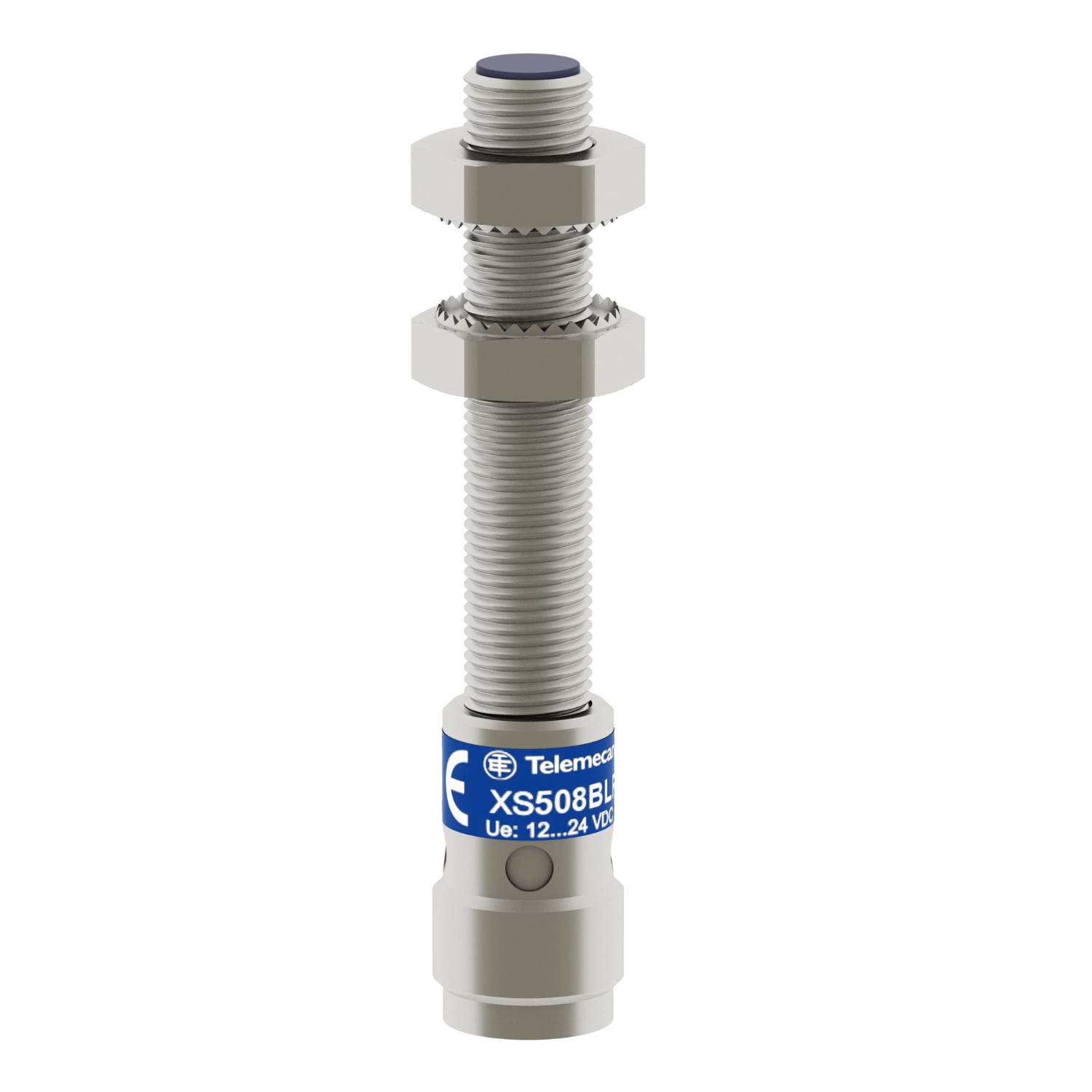

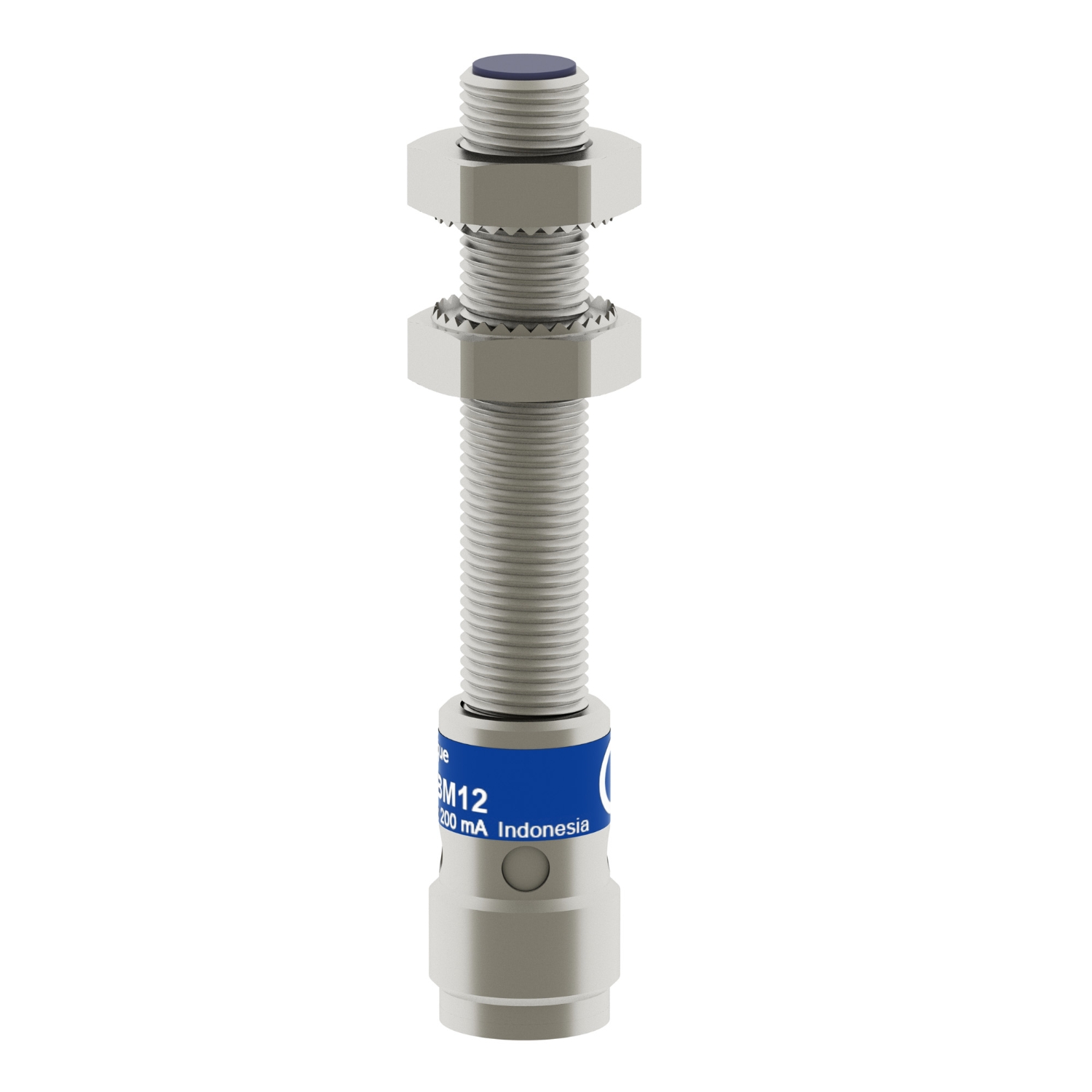

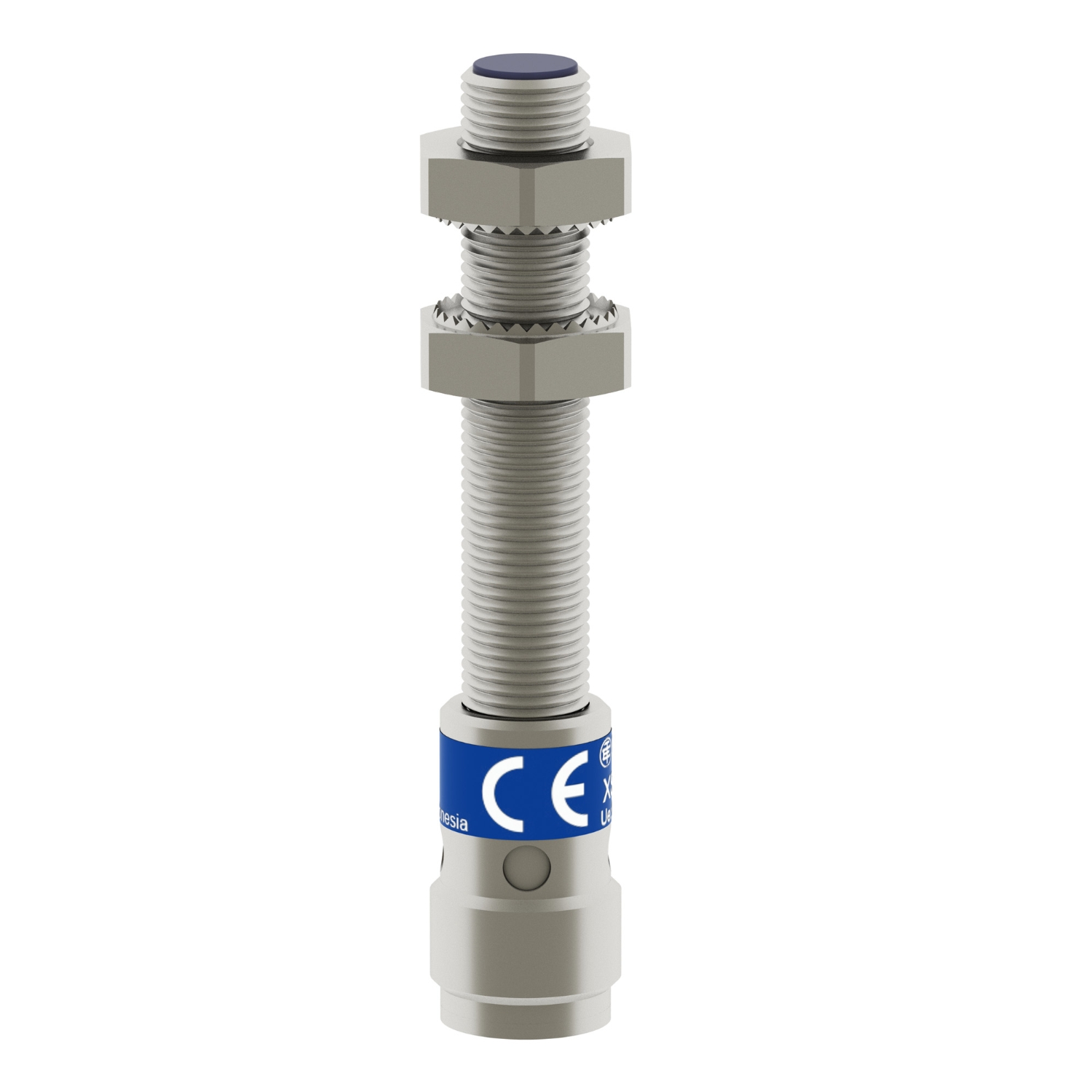

IND.GIV.Ø8,SN=1,5MM NO,NPN M12 XS508BLNBM12
Product number
4316887
Induktiv givere .Ø8,sn=1,5mm NO,NPN M12 12-4
Induktiv givere .Ø8,sn=1,5m kabelm NO,NPN M12 12-4
Product details
Technical specifications
Width sensor0 mm
Height of sensor0 mm
Length of sensor51 mm
Diameter sensor8 mm
Mechanical mounting condition for sensorConcise
Switching distance1.5 mm
Suitable for safety functionsno
Type of switch functionBreaker contact (NC)
Type of switching outputNPN/NPN
Type of electric connectionConnector M12
Number of semiconductor outputs with signalling function1
Number of contact energized outputs with signalling function0
Number of protected semiconductor outputs1
Number of protected contact energized outputs0
Type of actuationMetallic Target
Product codes
SAPGCN607
El number4316887
Product number4316887
GTIN/EAN3666916013687
Manufacturer part numberXS508BLNBM12
Vendor material numberXS508BLNBM12
Basic information
Package measurements (L x W x H)41 x 94 x 64 mm
Package volume0.247 l
Package weight0.015 kg
Base uniteach
Package units1
Usage quantity1
UNSPSC39121550
BrandTELEMECANIQUE
Country of OriginFR France
Customs tariff code85364900
