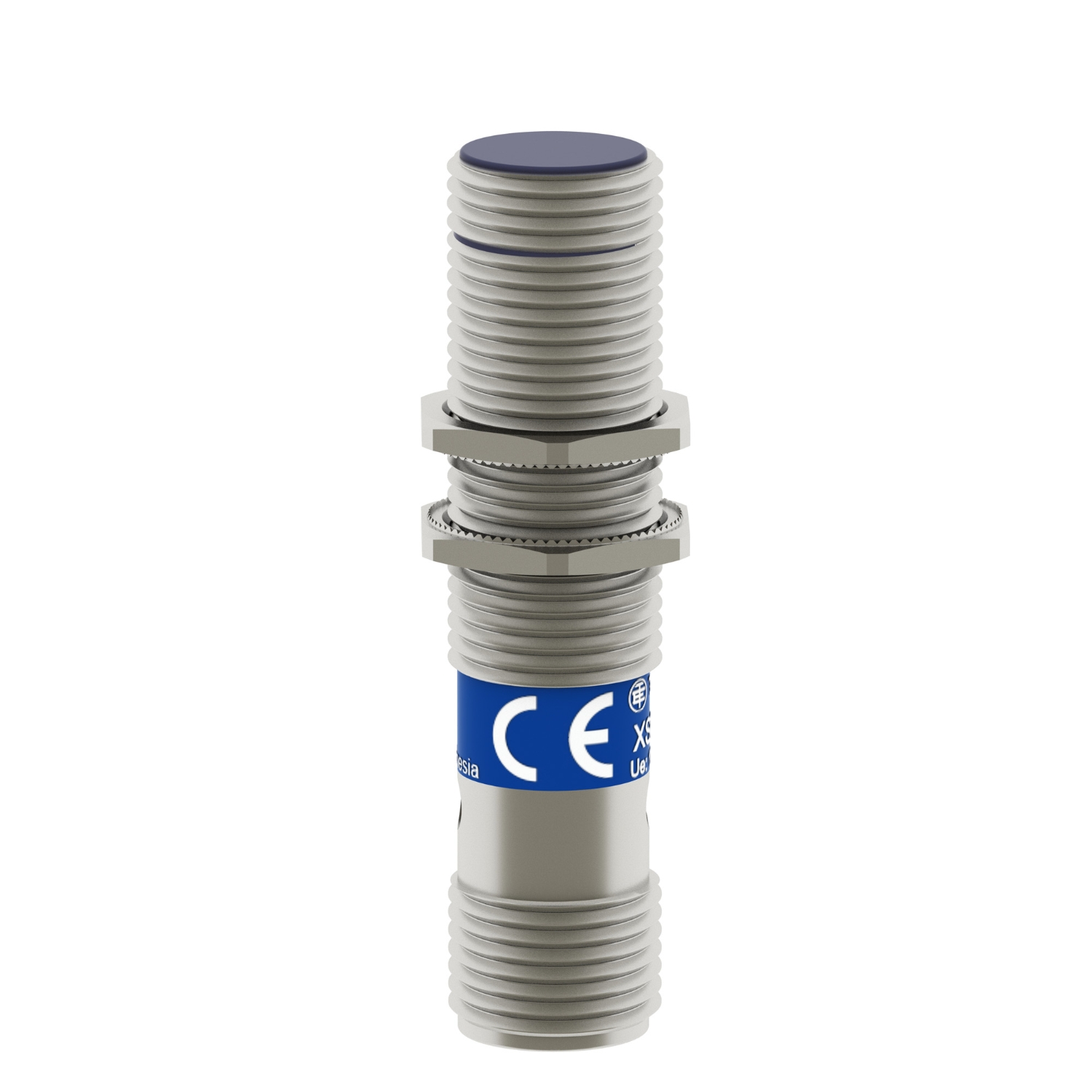

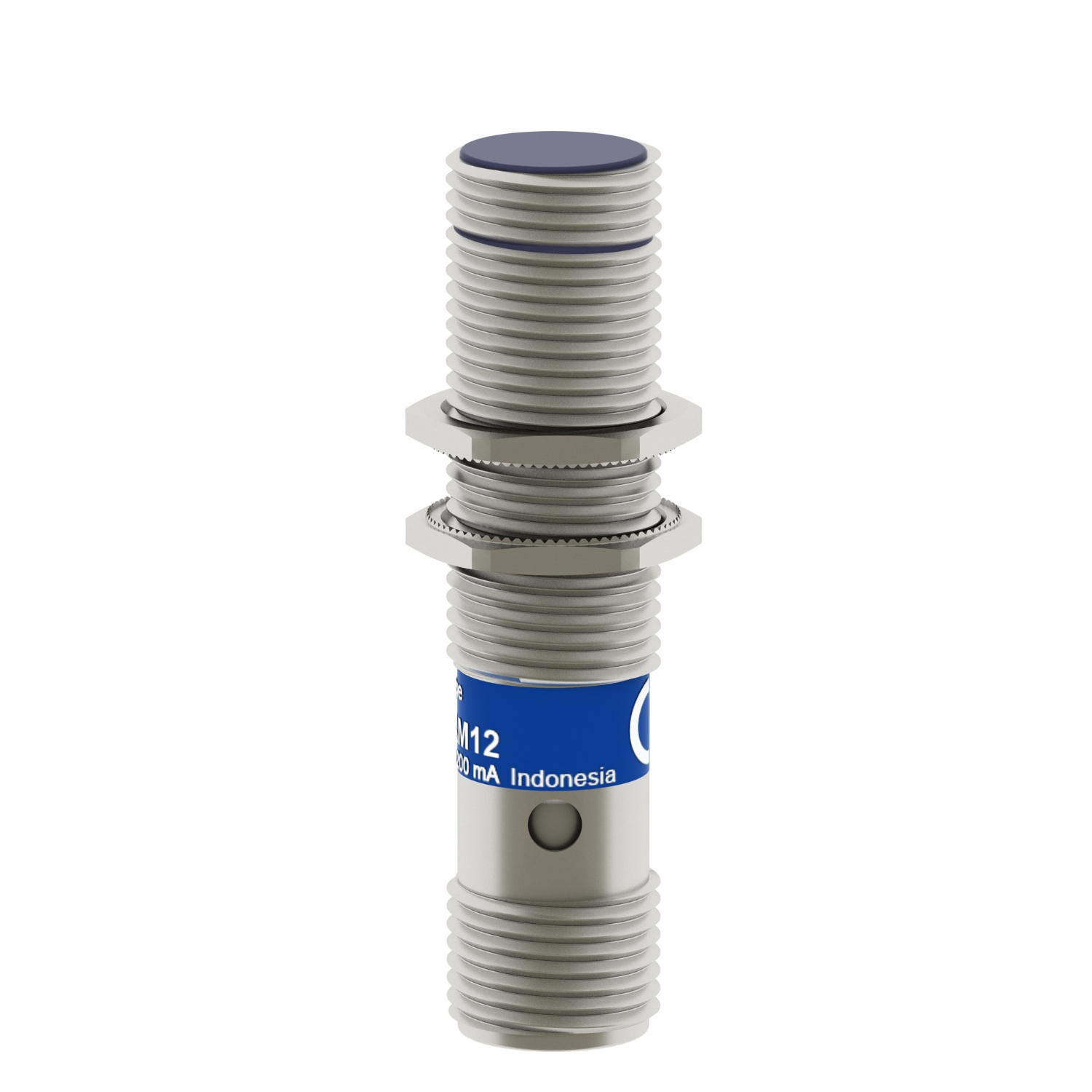

Induktiv giver Ø12 sn=4mm NC,12-48VDC
Product number
4316947
Induktiv givere .Ø12,sn=4mm NC,12-48VDC,M12
Induktiv givere Ø12,sn=4mm NC,12-48VDC,M12 plugg
Product details
Technical specifications
Width sensor0 mm
Height of sensor0 mm
Length of sensor62 mm
Diameter sensor12 mm
Mechanical mounting condition for sensorConcise
Switching distance4 mm
Suitable for safety functionsno
Type of switch functionBreaker contact (NC)
Type of electric connectionConnector M12
Number of semiconductor outputs with signalling function1
Number of contact energized outputs with signalling function0
Number of protected semiconductor outputs1
Number of protected contact energized outputs0
Type of actuationMetallic Target
Type of interfaceNone
Product codes
SAPGCM342
El number4316947
Product number4316947
GTIN/EAN3666916013007
Manufacturer part numberXS612B1DBM12
Vendor material numberXS612B1DBM12
Basic information
Package measurements (L x W x H)41 x 94 x 64 mm
Package volume0.247 l
Package weight0.02 kg
Base uniteach
Package units1
Usage quantity1
UNSPSC39121550
BrandTELEMECANIQUE
Country of OriginFR France
Customs tariff code85364900
