Roll over image to zoom in

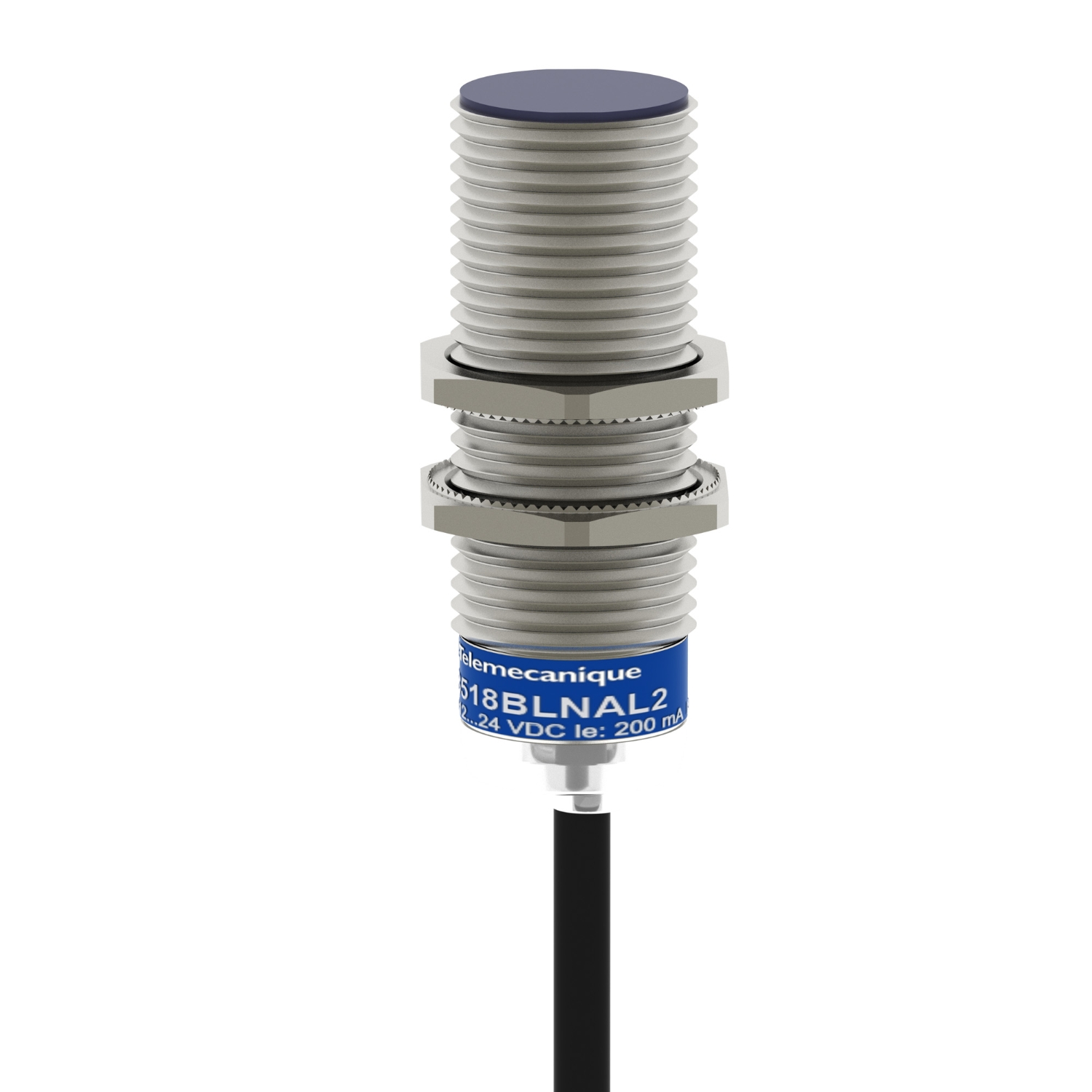

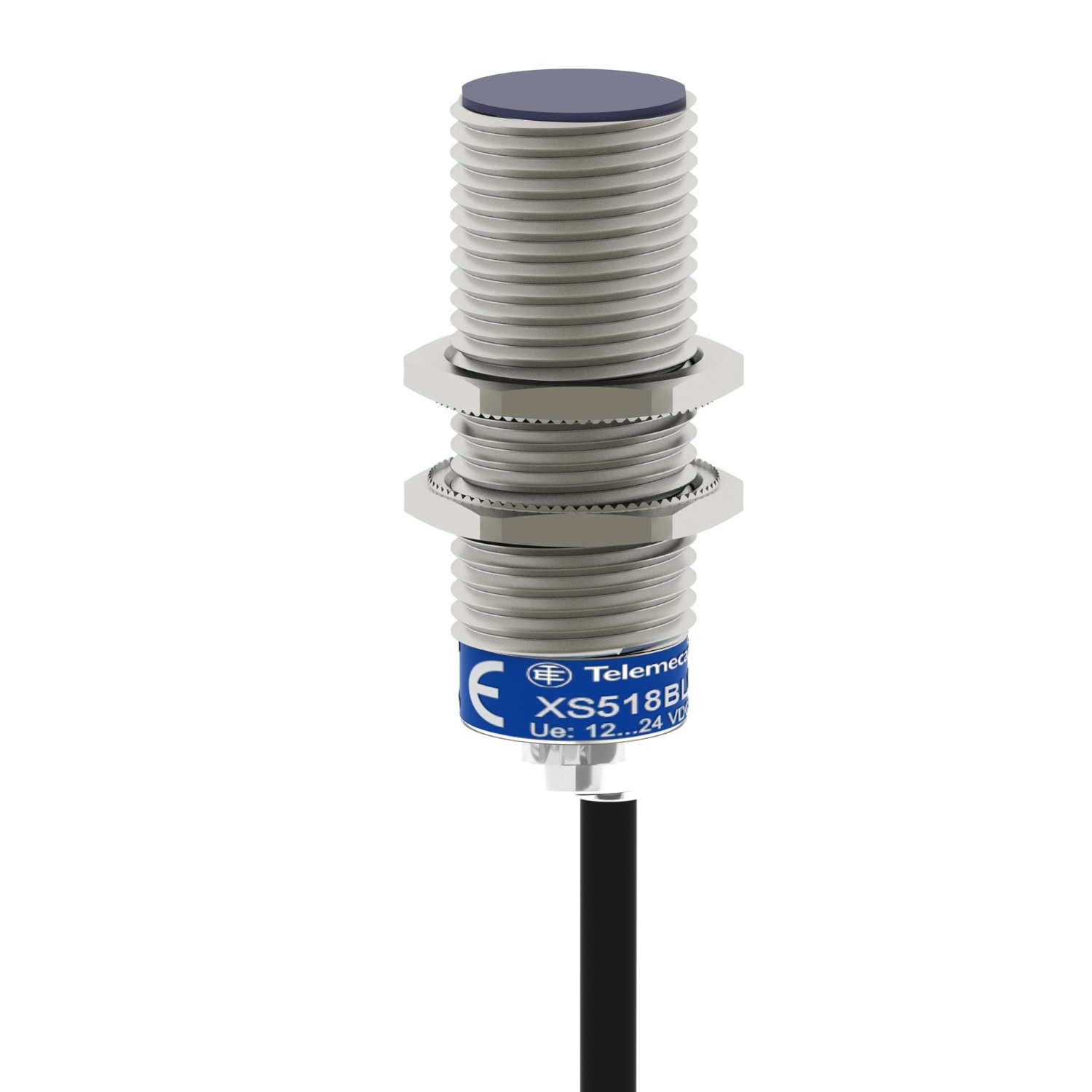

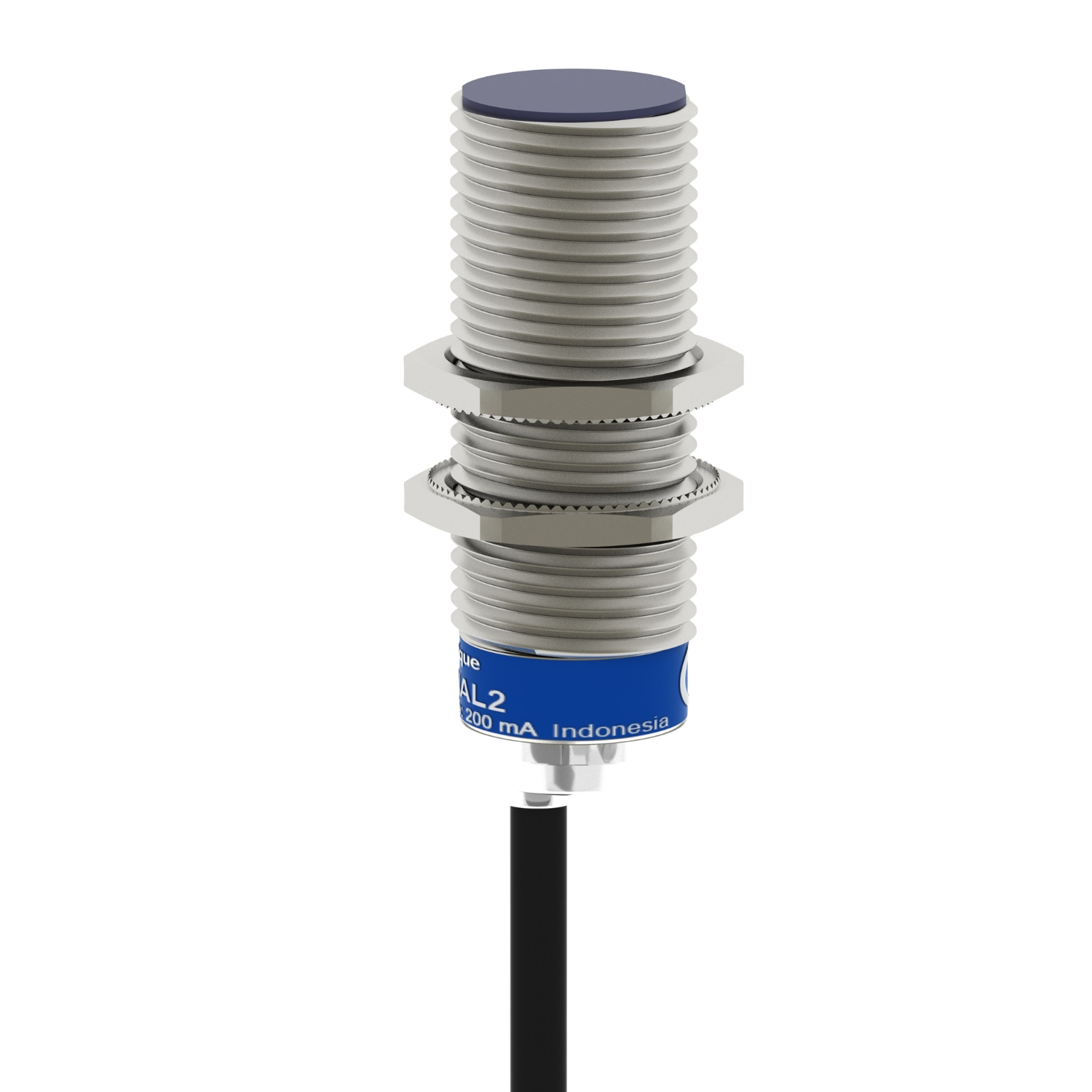

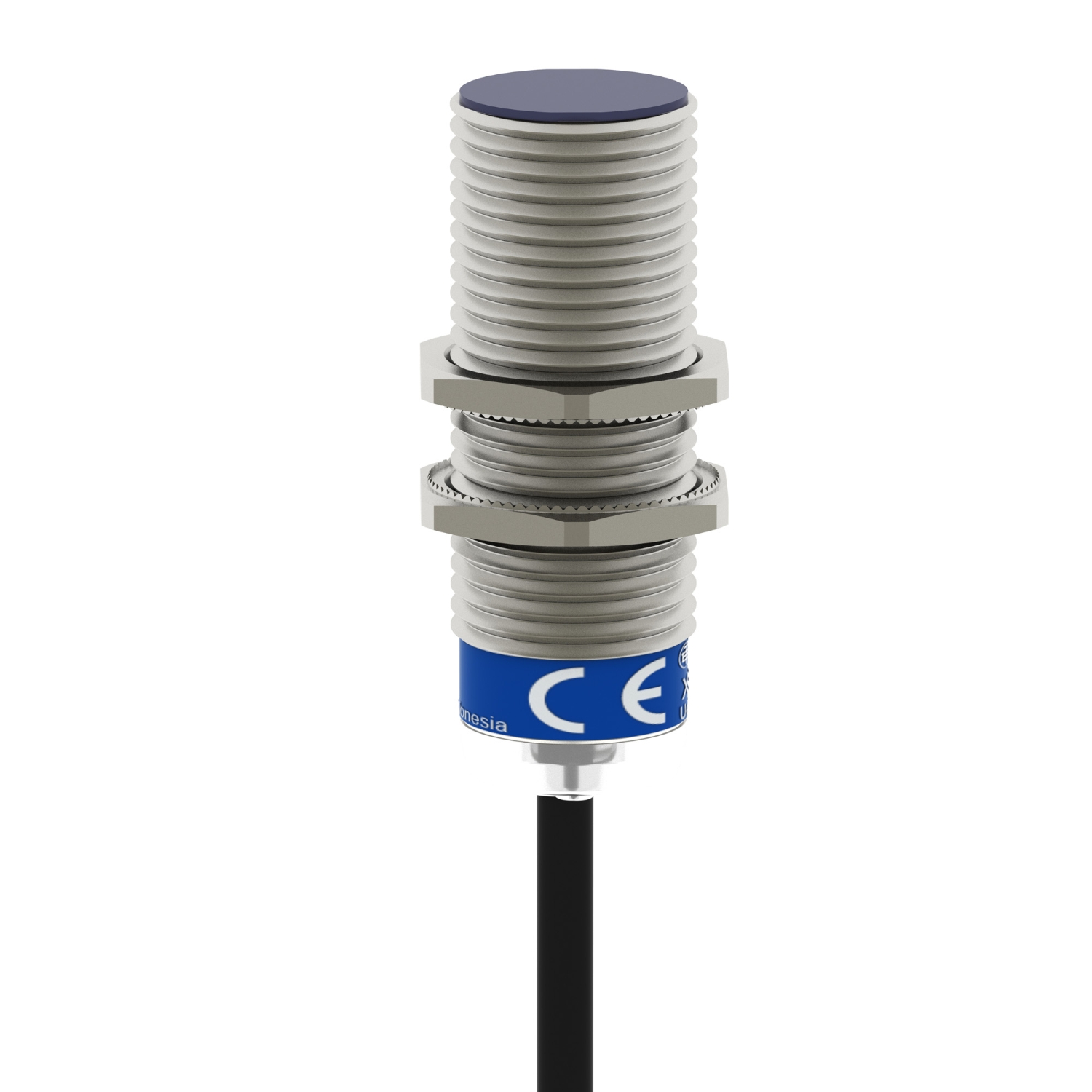

Induktiv giver Ø18 sn=5mm NO,NPN 12-4
Product number
4316912
Induktiv givere .Ø18,sn=5mm NO,NPN
Induktiv givere .Ø18,sn=5mm NO,NPN 12-48Vdc
Product details
Technical specifications
Width sensor0 mm
Height of sensor0 mm
Length of sensor62 mm
Diameter sensor18 mm
Mechanical mounting condition for sensorConcise
Switching distance5 mm
Suitable for safety functionsno
Type of switch functionNormally open contact (NO)
Type of switching outputNPN/NPN
Type of electric connectionCable radial
Number of semiconductor outputs with signalling function1
Number of contact energized outputs with signalling function0
Number of protected semiconductor outputs1
Number of protected contact energized outputs0
Type of actuationMetallic Target
Product codes
SAPGCN656
El number4316912
Product number4316912
GTIN/EAN3666916014240
Manufacturer part numberXS518BLNAL2
Vendor material numberXS518BLNAL2
Basic information
Package measurements (L x W x H)41 x 94 x 130 mm
Package volume0.501 l
Package weight0.128 kg
Base uniteach
Package units1 / 22
Usage quantity1
UNSPSC39121550
BrandTELEMECANIQUE
Country of OriginFR France
Customs tariff code85364900
