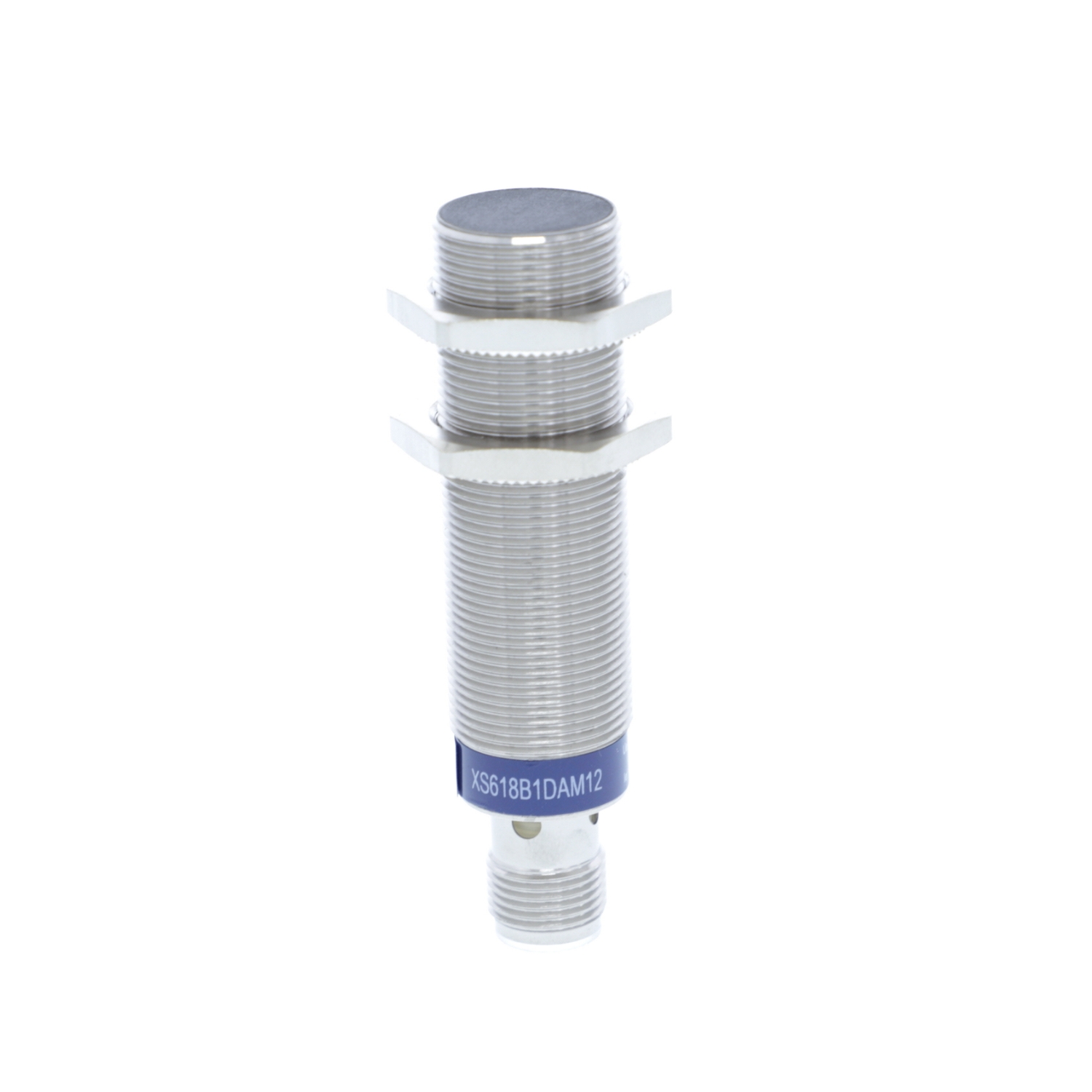

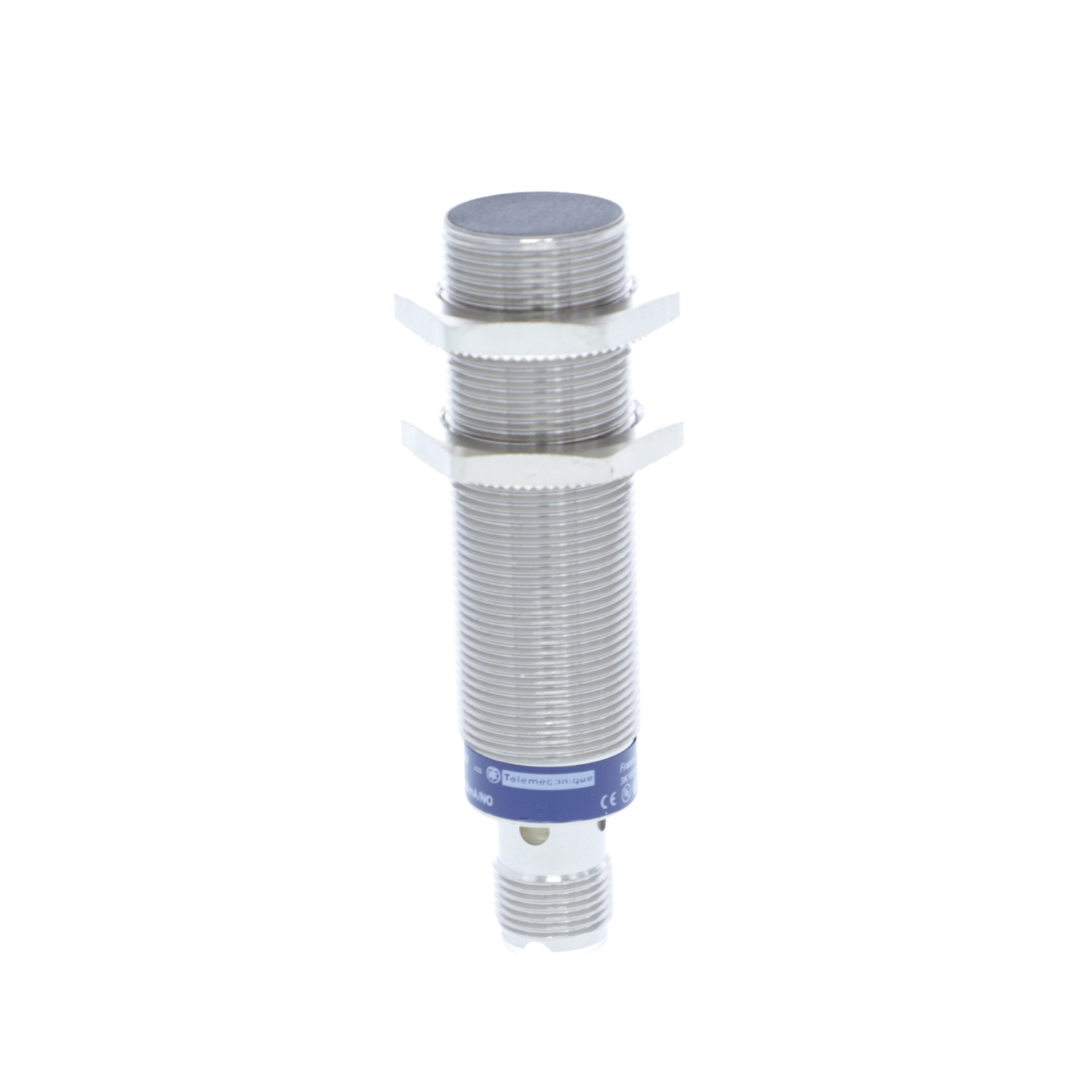

Induktiv giver Ø18 sn=8mm NO,12-48VDC
Product number
4316953
Induktiv givere .Ø18,sn=8mm NO,12-48VDC
Induktiv givere Ø18,sn=8m kabelm NO,12-48VDC,M12 plugg
Product details
Technical specifications
Width sensor0 mm
Height of sensor0 mm
Length of sensor74 mm
Diameter sensor18 mm
Mechanical mounting condition for sensorConcise
Switching distance8 mm
Suitable for safety functionsno
Type of switch functionNormally open contact (NO)
Type of electric connectionConnector M12
Number of semiconductor outputs with signalling function1
Number of contact energized outputs with signalling function0
Number of protected semiconductor outputs1
Number of protected contact energized outputs0
Type of actuationMetallic Target
Type of interfaceNone
Product codes
SAPGAW948
El number4316953
Product number4316953
GTIN/EAN3666916012628
Manufacturer part numberXS618B1DAM12
Vendor material numberXS618B1DAM12
Basic information
Package measurements (L x W x H)41 x 94 x 64 mm
Package volume0.247 l
Package weight0.075 kg
Base uniteach
Package units1 / 22
Usage quantity1
UNSPSC39121512
BrandTELEMECANIQUE
Country of OriginFR France
Customs tariff code85364900
