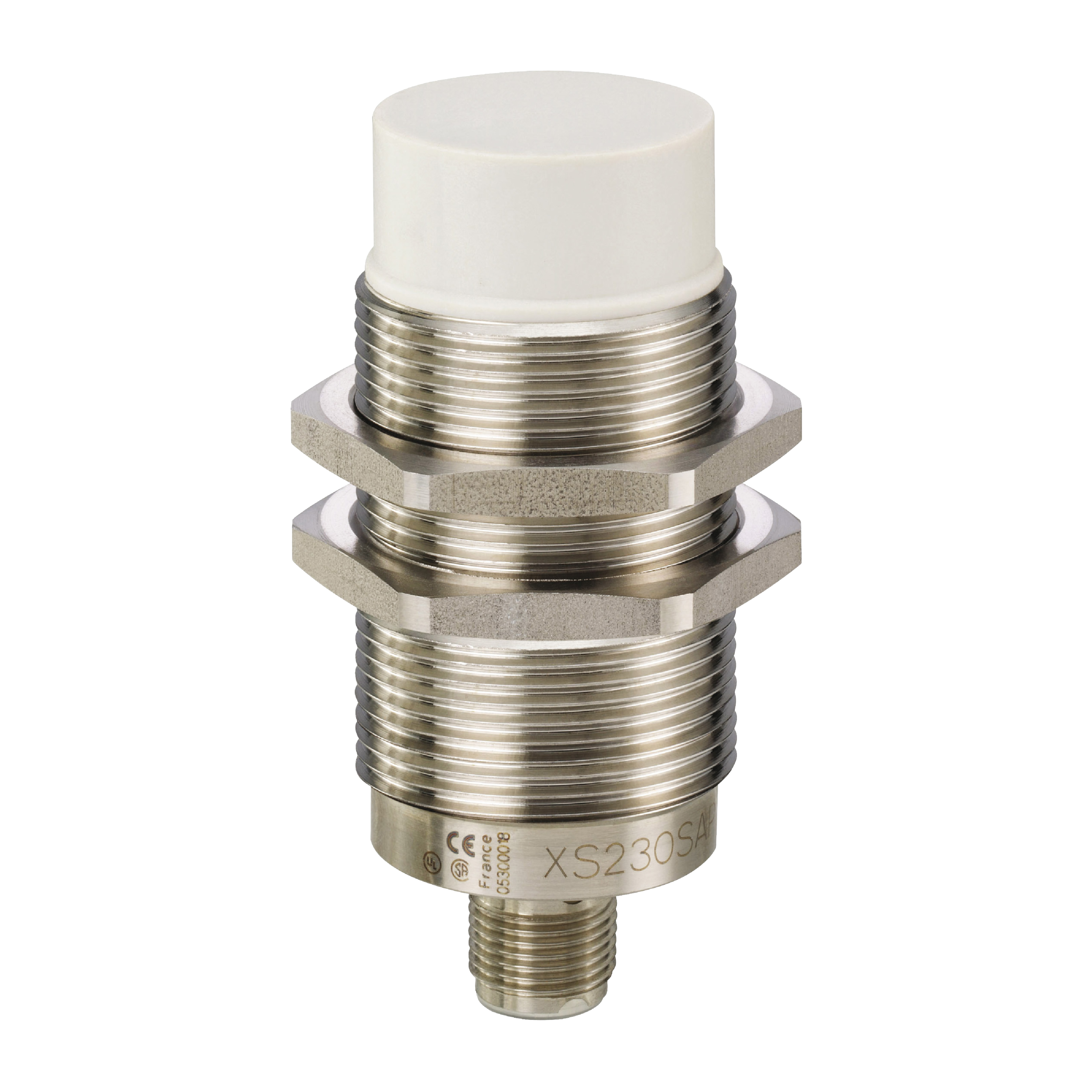

INDUKTIV GIVER Ø30 AC NO PLUGG XS230SAMAU20
Product number
4347601
Induktiv givere Ø30 AC no
Induktiv givere Ø30 AC NO plugg
Product details
Technical specifications
Length of sensor62.5 mm
Diameter sensor30 mm
Mechanical mounting condition for sensorNot flat
Switching distance22 mm
Suitable for safety functionsno
Type of electric connectionConnector 1/2 inch
Number of semiconductor outputs with signalling function1
Number of contact energized outputs with signalling function0
Number of protected semiconductor outputs0
Number of protected contact energized outputs0
Type of actuationMetallic Target
Type of interfaceNone
Type of interface for safety communicationNone
Construction type housingCylinder, screw-thread
Coating housingOther
Product codes
SAPGCN532
Product number4347601
El number4347601
GTIN/EAN3389119113410
Manufacturer part numberXS230SAMAU20
Vendor material numberXS230SAMAU20
Basic information
Package measurements (L x W x H)65 x 95 x 42 mm
Package volume0.259 l
Package weight0.16 kg
Base uniteach
Package units1
Usage quantity–
UNSPSC39121550
BrandTELEMECANIQUE
Country of OriginFR France
Customs tariff code85364900
