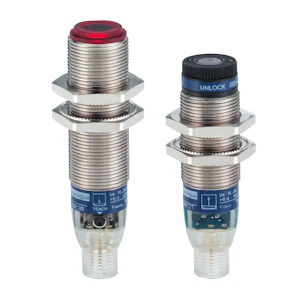

LASER Ø18 NPN METALL M12 XUBLBNCNM12
Product number
4317190
Fotocell laser Ø18 NPN Metall M12
Fotocell laser Ø18 NPN metall M12 plugg
Product details
Technical specifications
Scope of delivery of the one-way systemTransmitter and receiver
Max. opening angle0 °
Pre failure noticeno
With time functionno
Rated switching distance100000 mm
Max. switching distance100000 mm
Max. output current100 mA
With reflectorno
Analogue output 0 V ... 10 Vno
Analogue output 0 mA ... 20 mAno
Analogue output 4 mA ... 20 mAno
Analogue output -10 V ... +10 Vno
With other analogue outputno
Setting procedureOther
With communication interface analogueno
Product codes
SAPGCN908
El number4317190
Product number4317190
GTIN/EAN3666916032794
Manufacturer part numberXUBLBNCNM12
Vendor material numberXUBLBNCNM12
Basic information
Package measurements (L x W x H)70 x 130 x 36 mm
Package volume0.328 l
Package weight0.127 kg
Base uniteach
Package units1
Usage quantity1
UNSPSC32000000
BrandTELEMECANIQUE
Country of OriginNO Norway
Customs tariff code85364900
