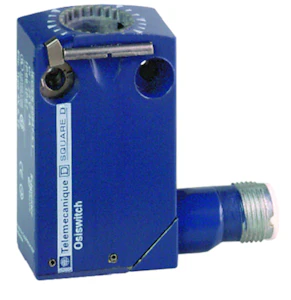

MET.KROPP C/O, 5-PIN M12 ZCMD29C12
Product number
4394276
Metallkropp C/O, 5-pin M12
Endebryter metallkropp C/O, 5-polet M12
Product details
Technical specifications
Width sensor52 mm
Diameter sensor0 mm
Height of sensor74 mm
Length of sensor16 mm
Rated operation current Ie at AC-15, 24 V0 A
Rated operation current Ie at AC-15, 125 V0 A
Rated operation current Ie at AC-15, 230 V1.5 A
Rated operation current Ie at DC-13, 24 V0 A
Rated operation current Ie at DC-13, 125 V0 A
Rated operation current Ie at DC-13, 230 V0.1 A
Switching functionQuick-break switch
Switching function latchingno
Output electronicno
Forced openingyes
Number of safety auxiliary contacts0
Product codes
SAPGCO263
El number4394276
Product number4394276
GTIN/EAN3666916042571
Manufacturer part numberZCMD29C12
Vendor material numberZCMD29C12
Basic information
Package measurements (L x W x H)50 x 52 x 16 mm
Package volume0.042 l
Package weight0.078 kg
Base uniteach
Package units1
Usage quantity1
UNSPSC39121500
BrandTELEMECANIQUE
Country of OriginNO Norway
Customs tariff code85364900
Sustainability info
Global Warming Potential (GWP)
GWP value for A1– A30.4177
GWP uniteach
Data source for GWPEandoX
