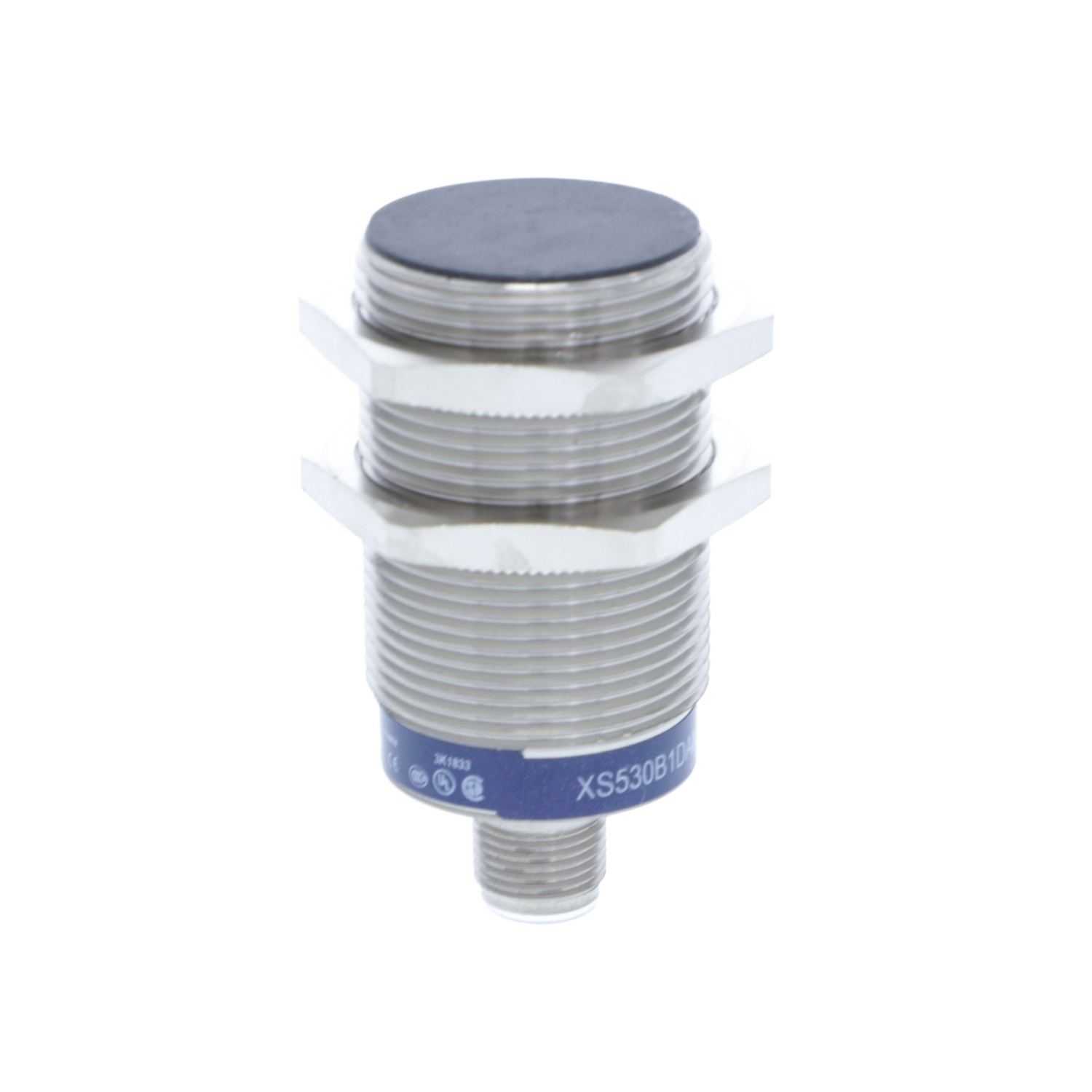

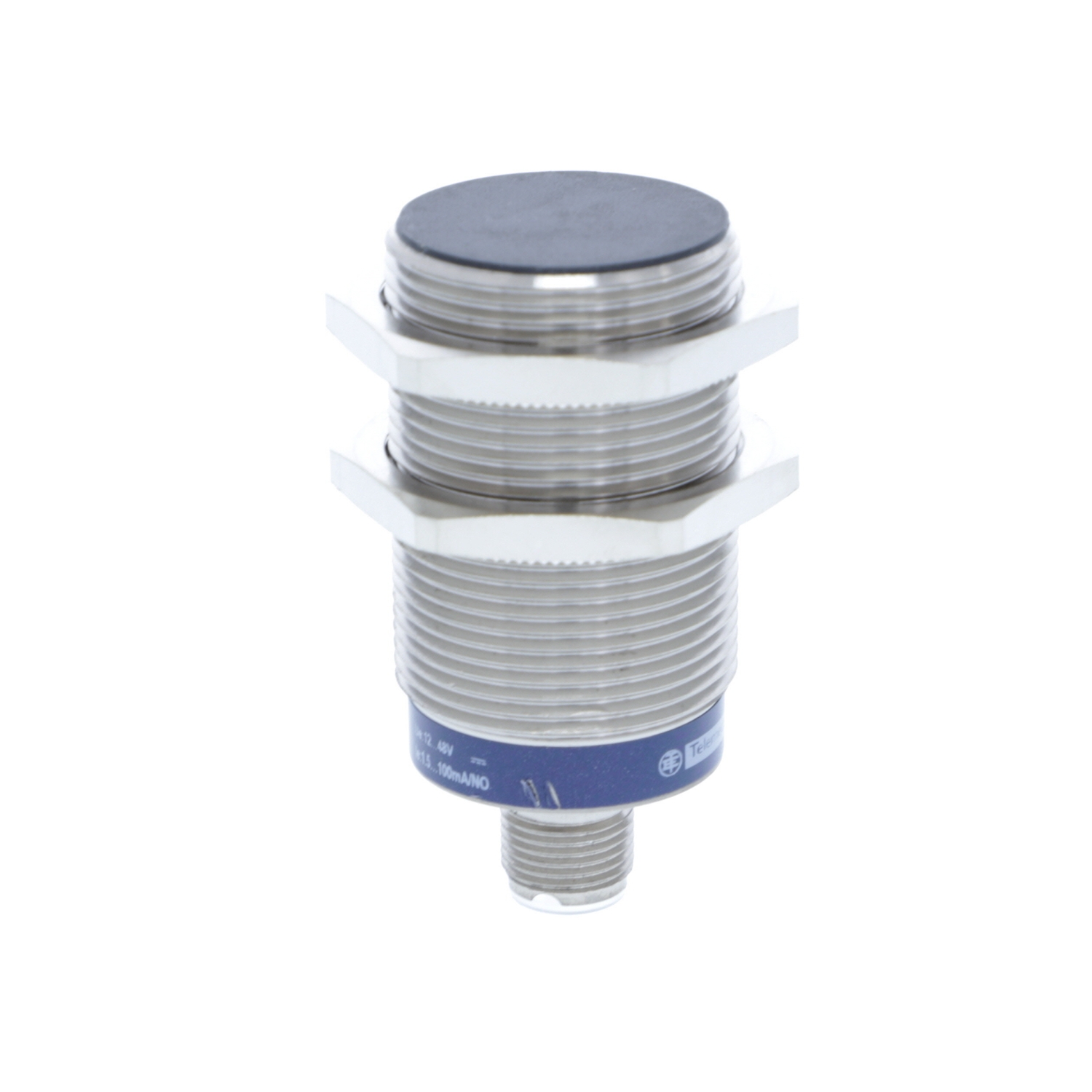

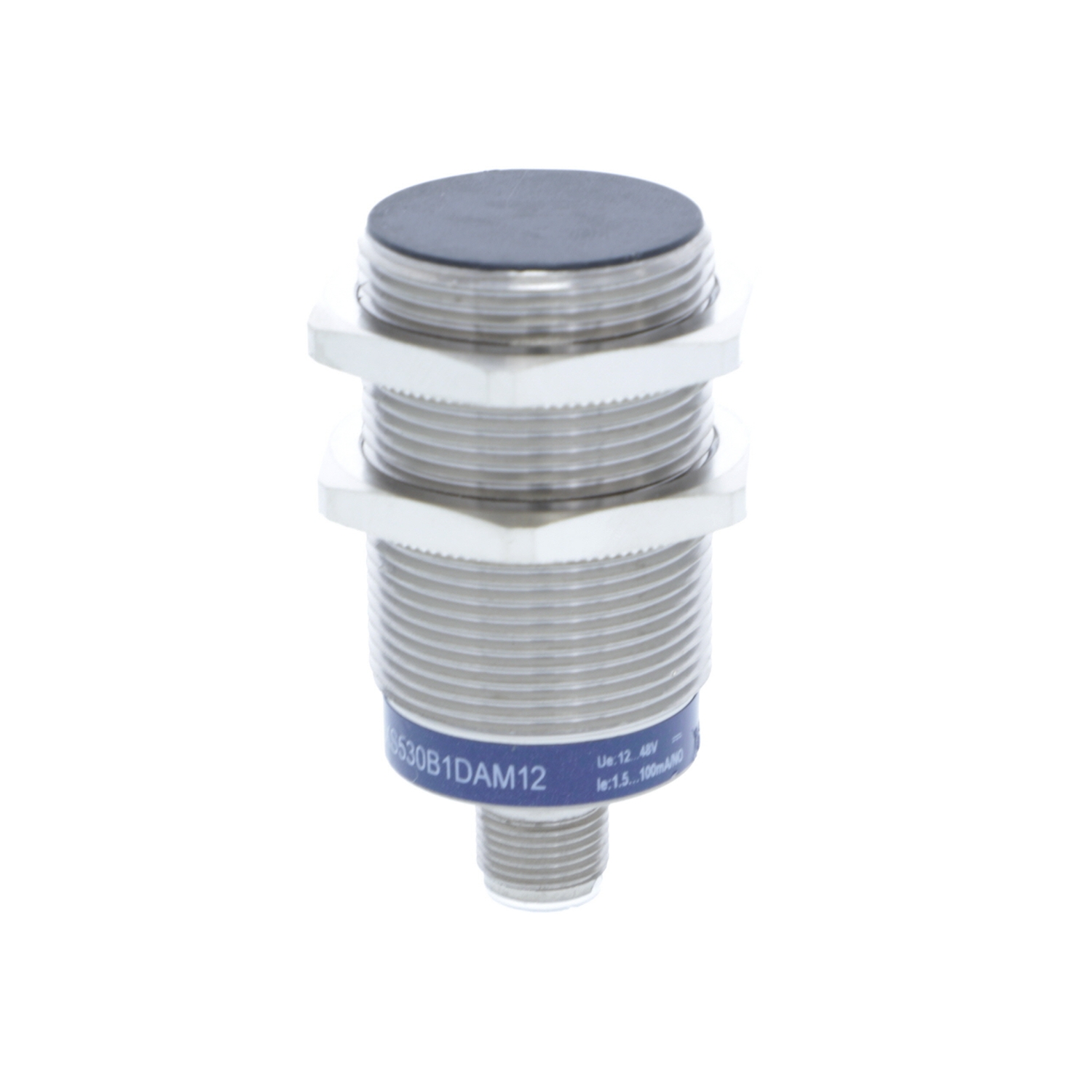

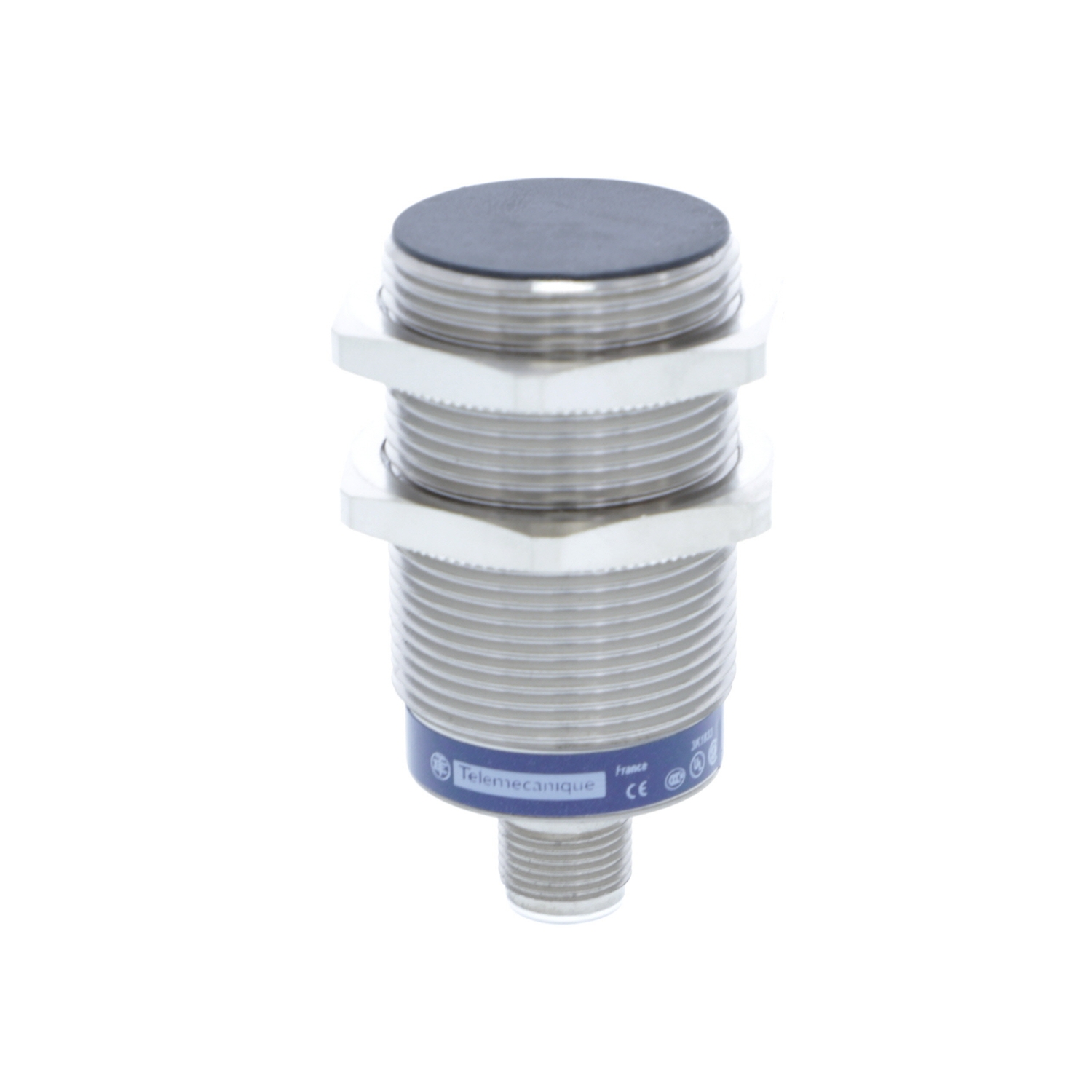

OPTIM.Ø30,PNP,NC,M/PLU.SN=10 XS530B1PBM12
Product number
4350224
Induktiv givere PNP nc m/
Induktiv givere PNP NC M12 plugg
Product details
Technical specifications
Width sensor0 mm
Height of sensor0 mm
Length of sensor54.3 mm
Diameter sensor30 mm
Mechanical mounting condition for sensorConcise
Switching distance10 mm
Suitable for safety functionsno
Type of switch functionBreaker contact (NC)
Type of switching outputPNP/PNP
Type of electric connectionConnector M12
Number of semiconductor outputs with signalling function1
Number of contact energized outputs with signalling function0
Number of protected semiconductor outputs1
Number of protected contact energized outputs0
Type of actuationMetallic Target
Product codes
SAPGAV993
El number4350224
Product number4350224
GTIN/EAN3666916014004
Manufacturer part numberXS530B1PBM12
Vendor material numberXS530B1PBM12
Basic information
Package measurements (L x W x H)97 x 67 x 42 mm
Package volume0.273 l
Package weight0.013 kg
Base uniteach
Package units1
Usage quantity1
UNSPSC41111946
BrandTELEMECANIQUE
Country of OriginNO Norway
Customs tariff code85364900
