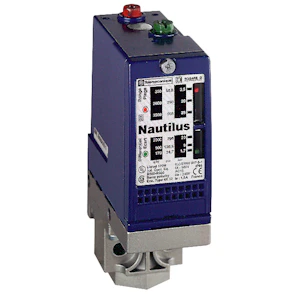

PRESSOSTAT 3 5-35 BAR XMLB035A2S11
Product number
4316788
Pressostat 3 5-35 bar
Pressostat 3 5-35 bar,kabelinngang Pg13
Product details
Technical specifications
Suitable as guardyes
Suitable as 2-point controlleryes
Suitable as limiterno
Engaging pressure3.5 - 35 bar
Initial setting3500 - 35000 hPa
Switch off pressure1.8 - 32.45 bar
End setting1800 - 32450 hPa
Pressure-switching differential17.45 bar
Max. test pressure80 bar
Bursting pressure160 bar
Medium temperature0 - 70 °C
Thread sizeOther
Rated voltage Ue at AC 50 Hz120 - 240 V
Rated voltage Ue at AC 60 Hz120 - 240 V
Rated voltage Ue at DC250 - 250 V
Product codes
SAPGCO291
El number4316788
Product number4316788
GTIN/EAN3666916025147
Manufacturer part numberXMLB035A2S11
Vendor material numberXMLB035A2S11
Basic information
Package measurements (L x W x H)122 x 85 x 40 mm
Package volume0.415 l
Package weight0.733 kg
Base uniteach
Package units1 / 13 / 52
Usage quantity1
UNSPSC39121506
BrandTELEMECANIQUE
Country of OriginNO Norway
Customs tariff code90322000
