TRYKKT.DIS.600BAR 4-20MA 1 PNP
Product number
4306435

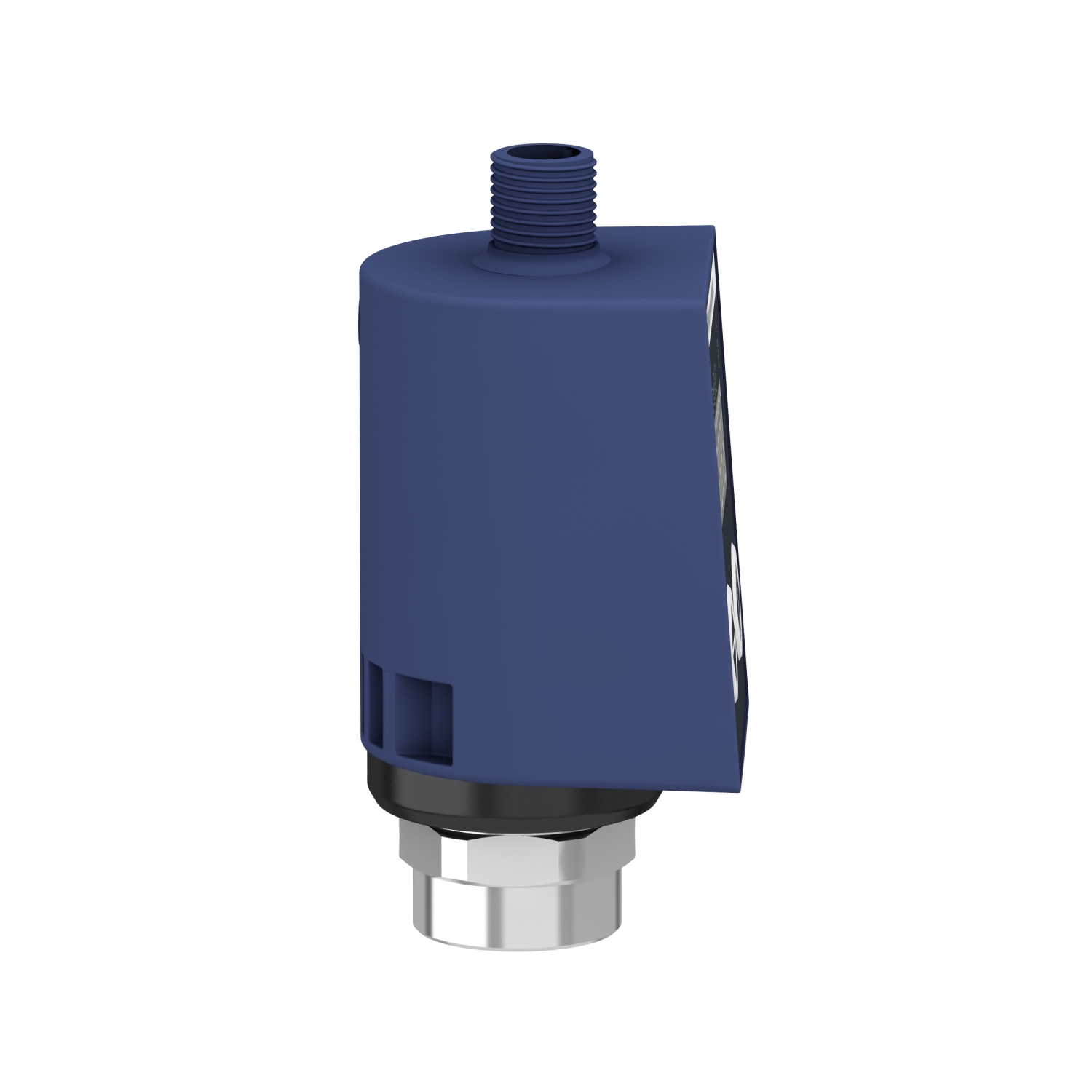

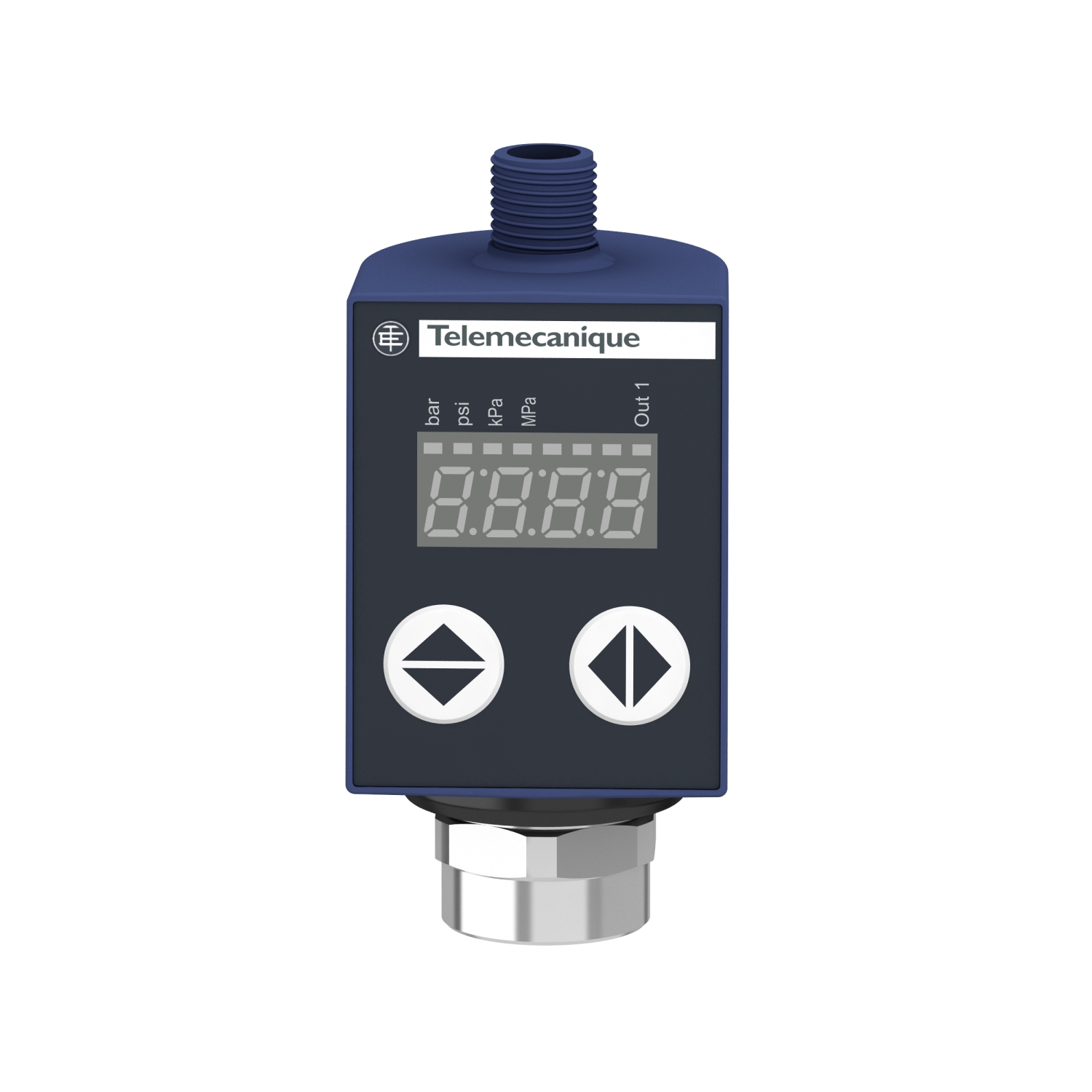

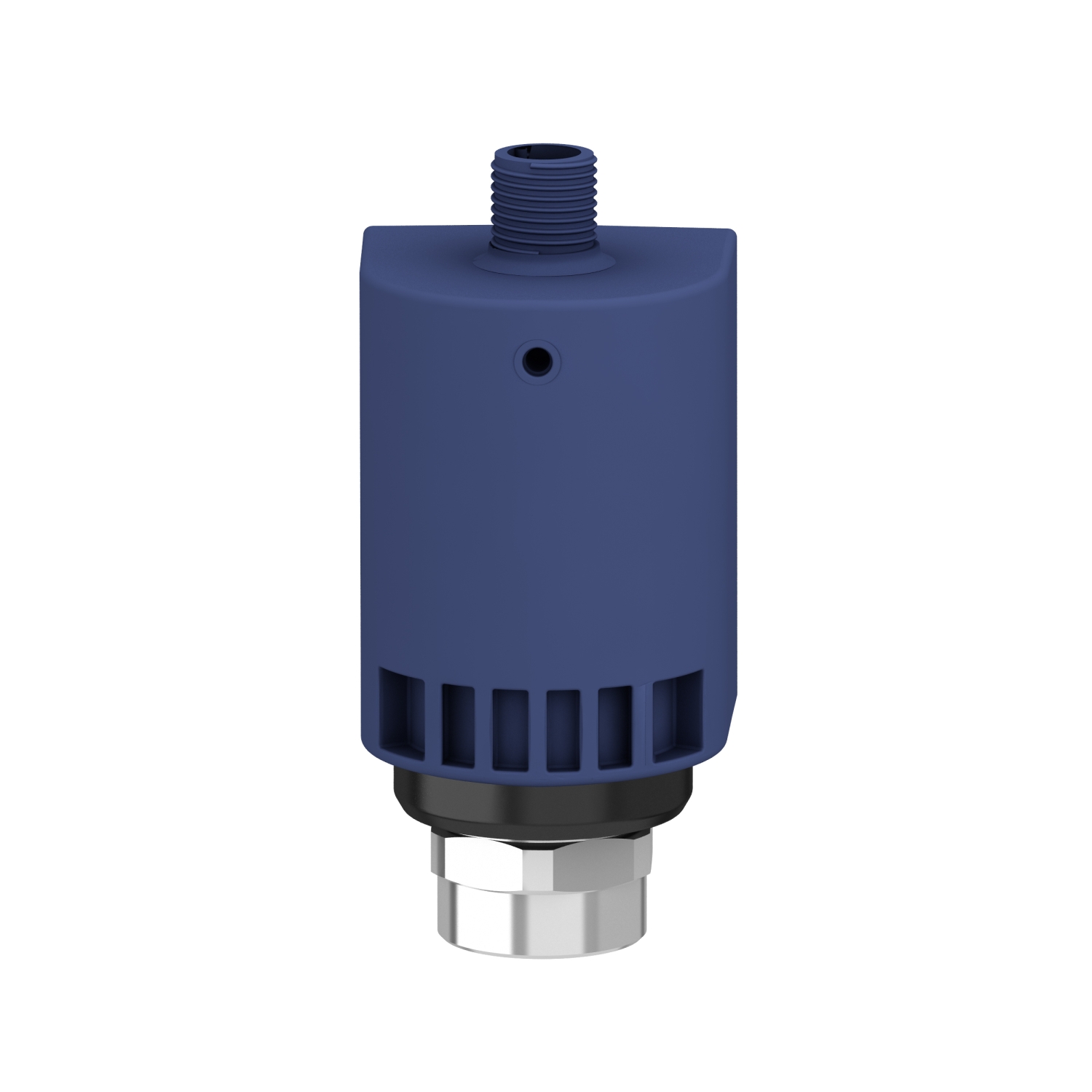

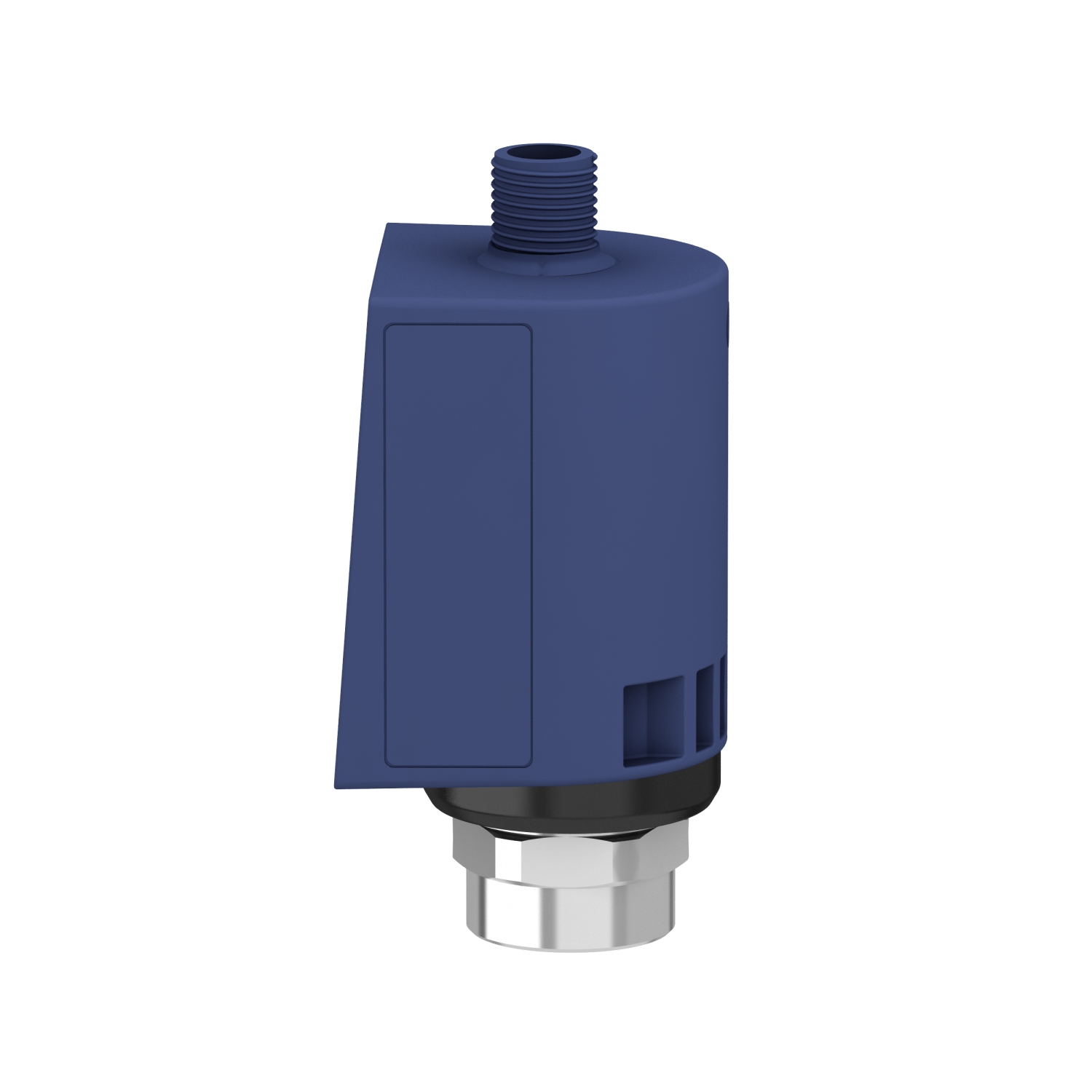

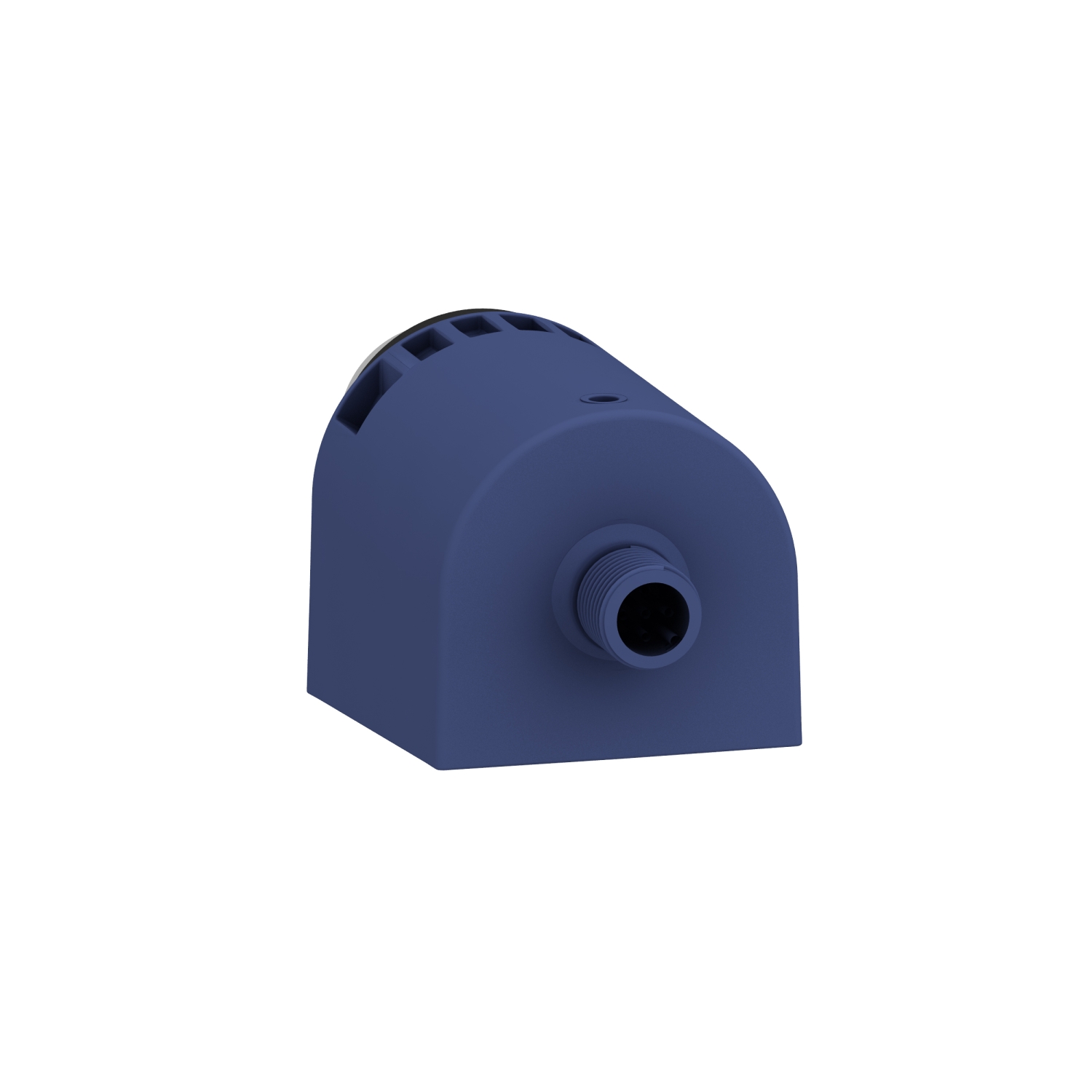

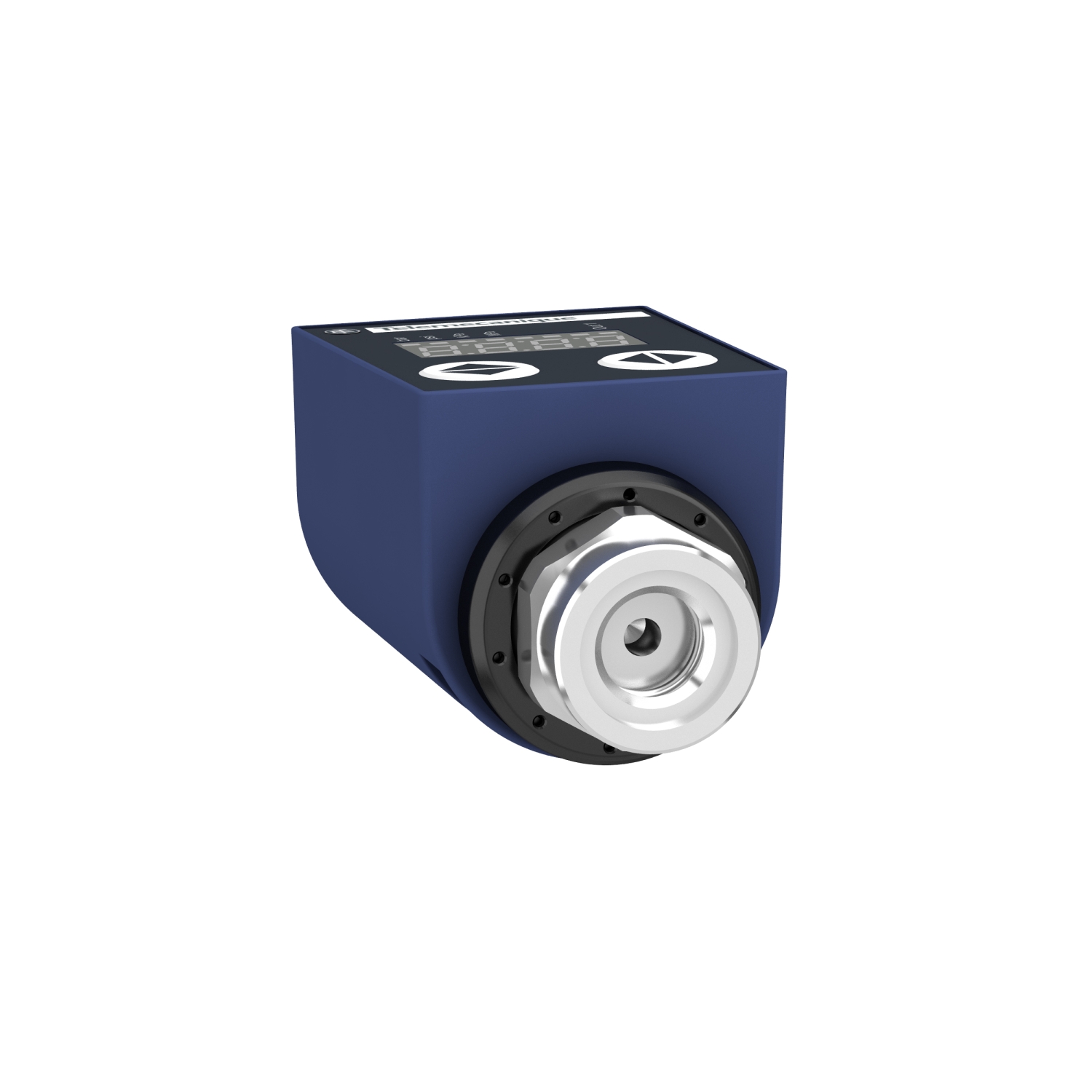

Trykktransmitter display 600Bar 24V 4-20mA 1 PNP
Trykktransmitter display 600Bar 24VDC analog utgang 4-20mA og 1 utgang PNP M12 og vaesketilslutning G1/4"
Product details
Technical specifications
Suitable as guardyes
Suitable as 2-point controllerno
Suitable as limiterno
Engaging pressure30 - 600 bar
Initial setting0 - 600000 hPa
Switch off pressure48 - 600 bar
End setting0 - 600000 hPa
Pressure-switching differential18 bar
Max. test pressure1500 bar
Bursting pressure2500 bar
Medium temperature-20 - 80 °C
Thread sizeOther
Rated voltage Ue at DC24 - 24 V
Initial value measuring range pressure3000000 Pa
End value measuring range pressure9999999.999 Pa
Product codes
SAPCCL636
El number4306435
Product number4306435
GTIN/EAN3666916020388
Manufacturer part numberXMLR600M1P25
Vendor material numberXMLR600M1P25
Basic information
Package measurements (L x W x H)75 x 127 x 65 mm
Package volume0.619 l
Package weight0.181 kg
Base uniteach
Package units1
Usage quantity–
UNSPSC41112410
BrandTELEMECANIQUE
Country of OriginCH Switzerland
Customs tariff code90322000
Documents (11)
Sustainability info
Global Warming Potential (GWP)
GWP value for A1– A31.4972
GWP uniteach
Data source for GWPEandoX
