TRYKKTR.DISPLAY 600BAR 4-20MA
Product number
4306433

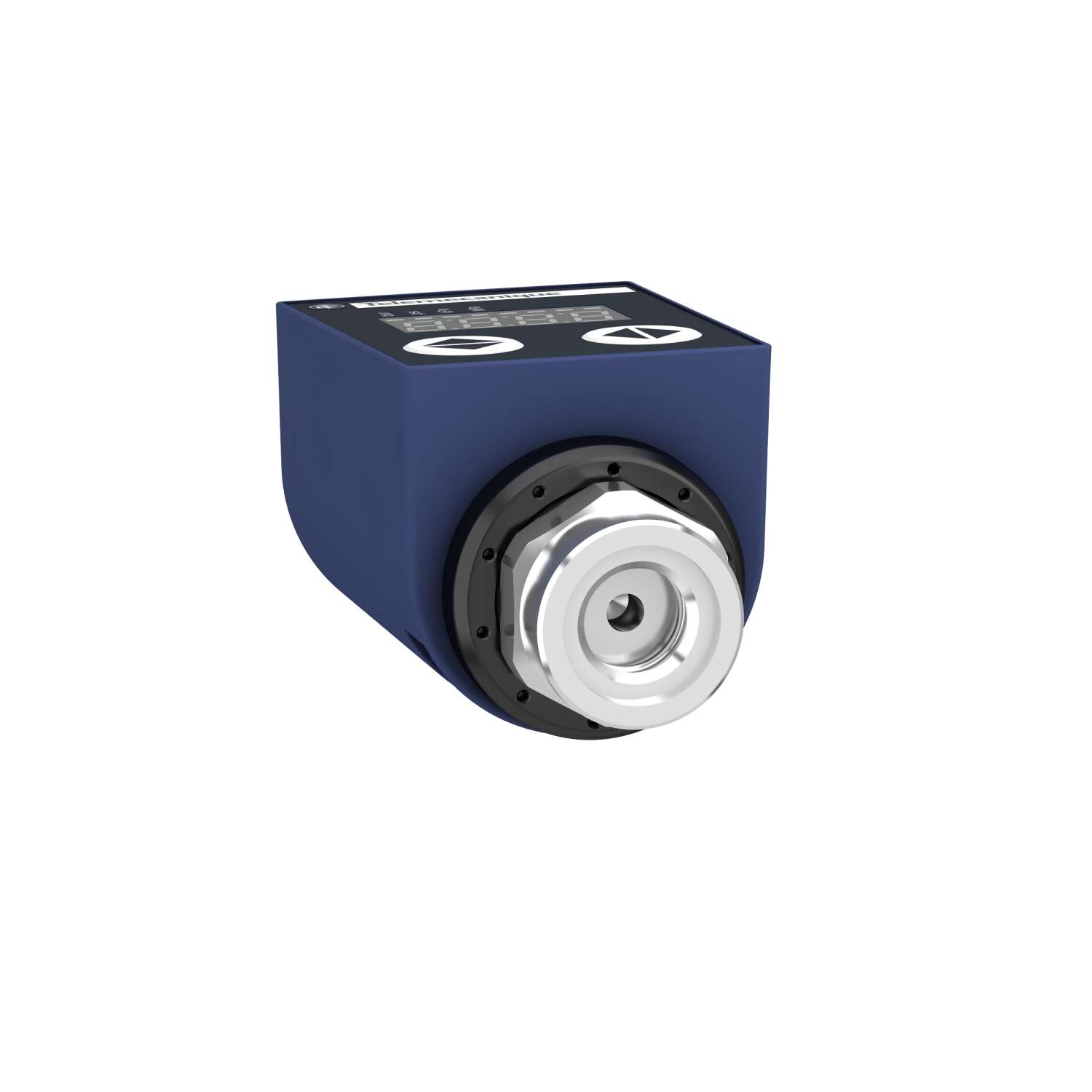

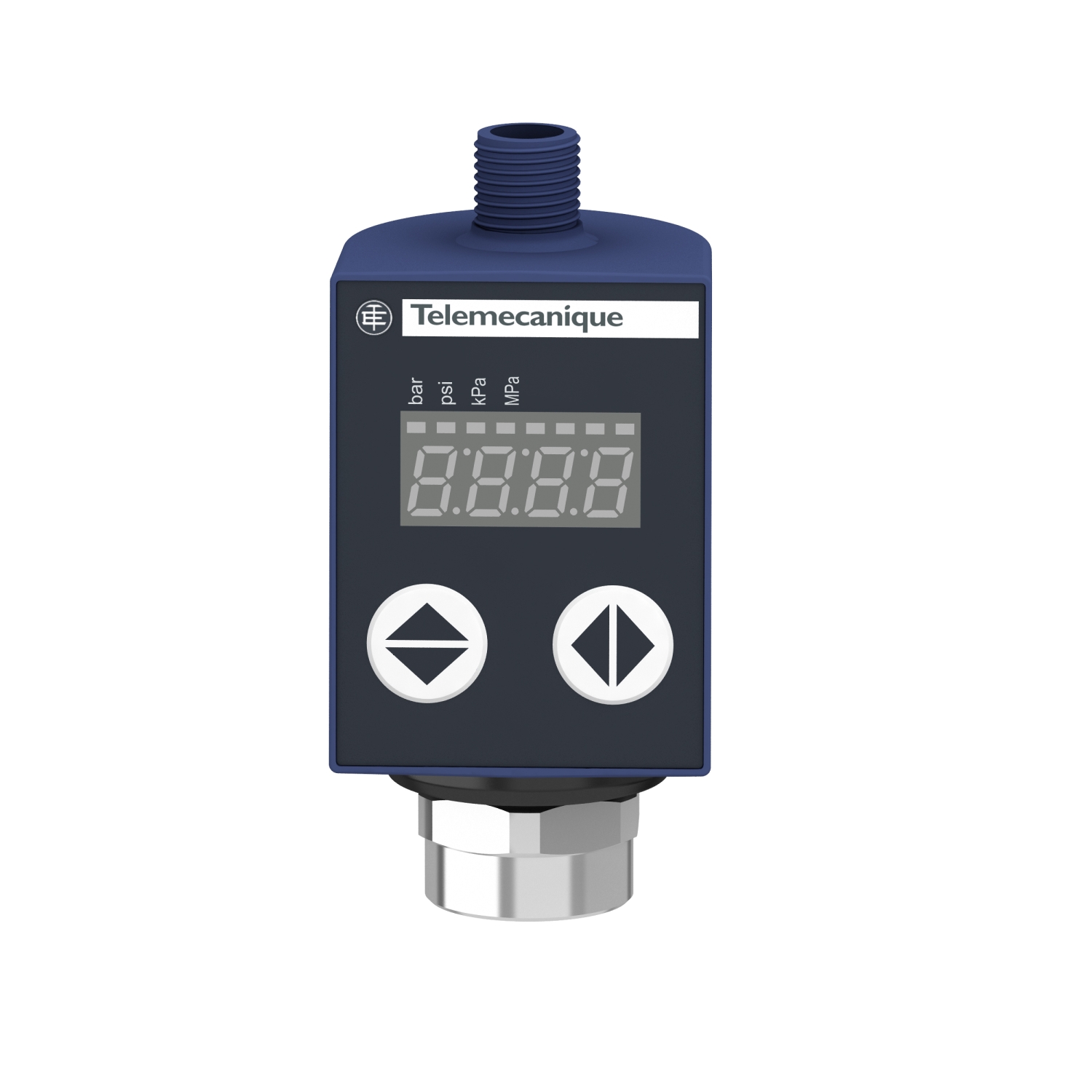

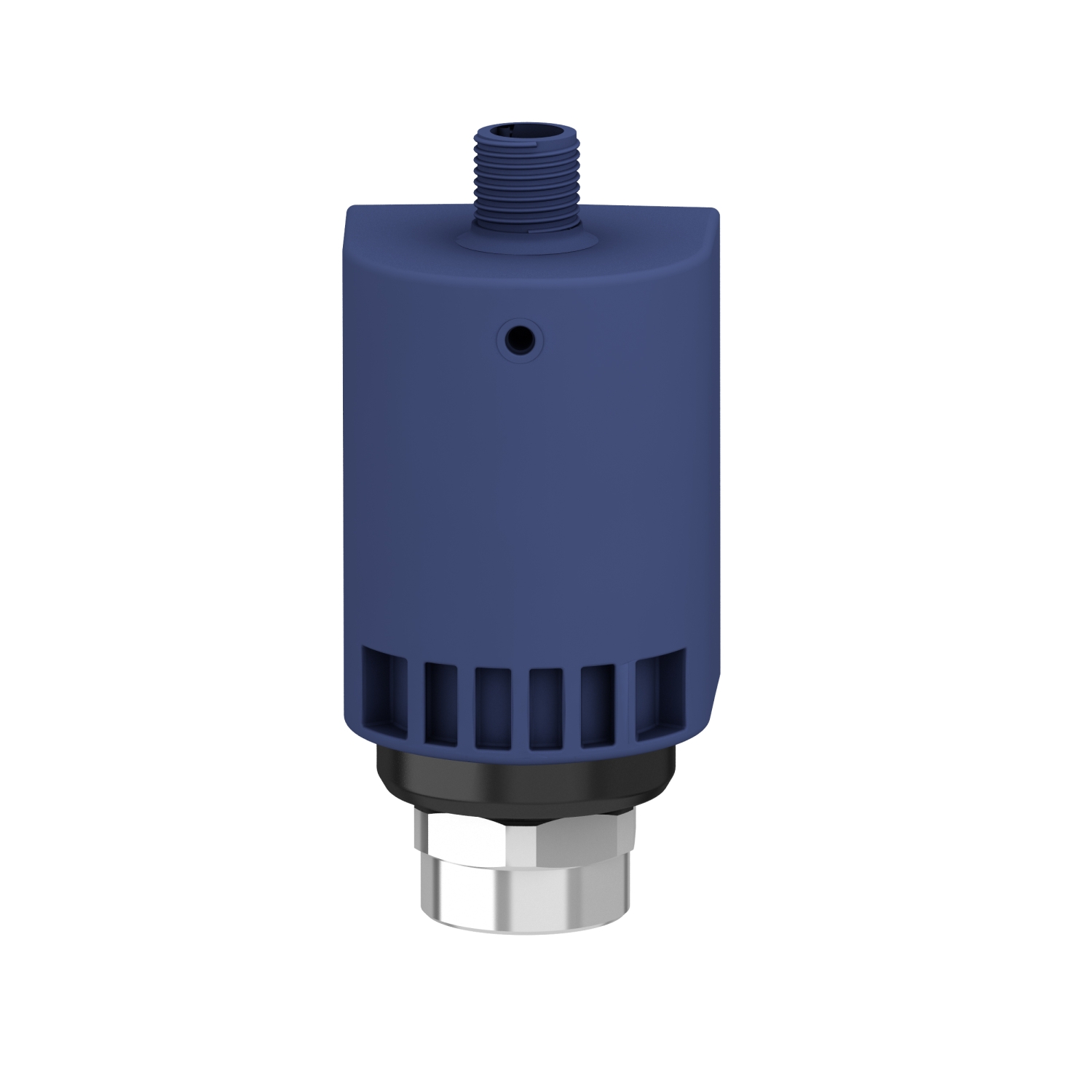

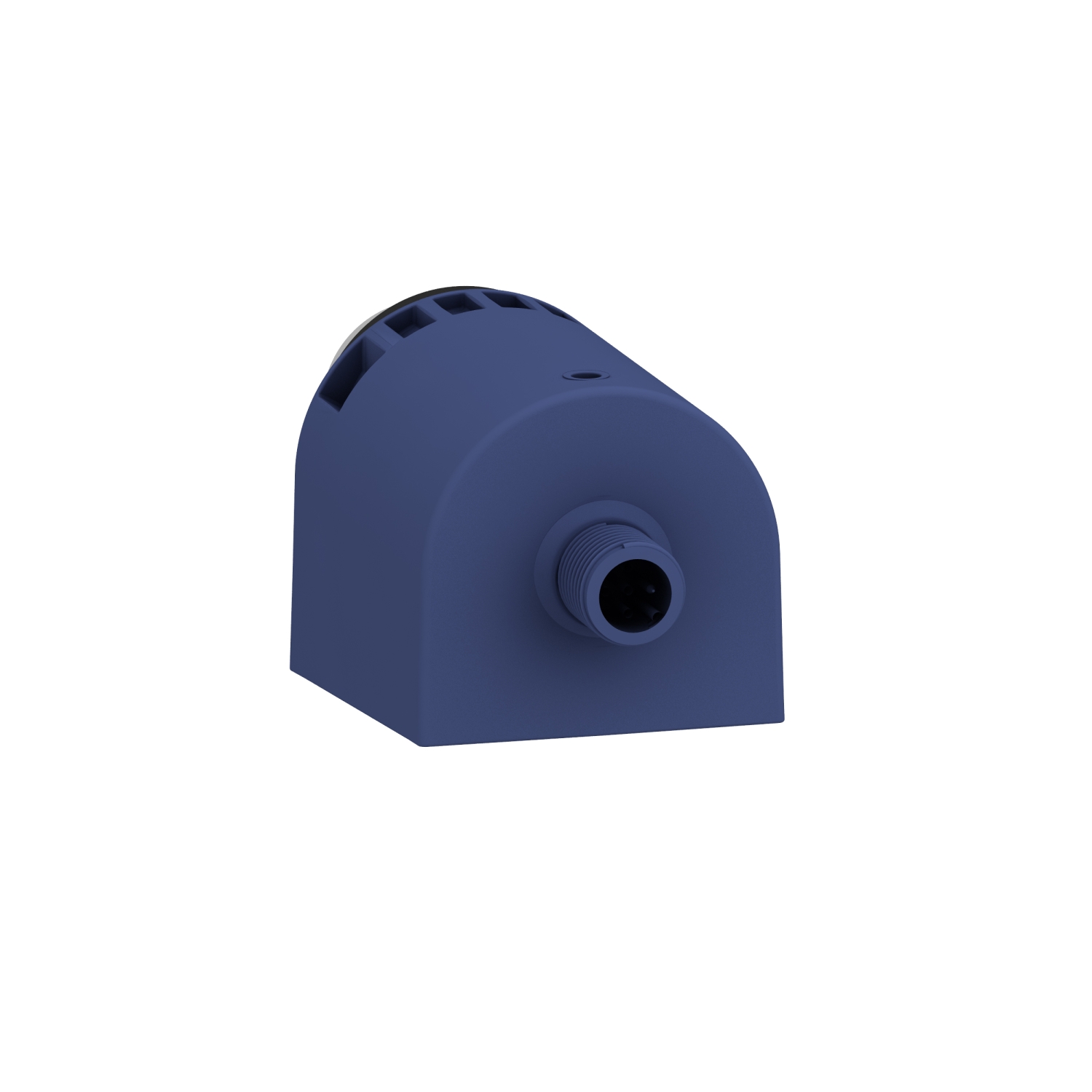

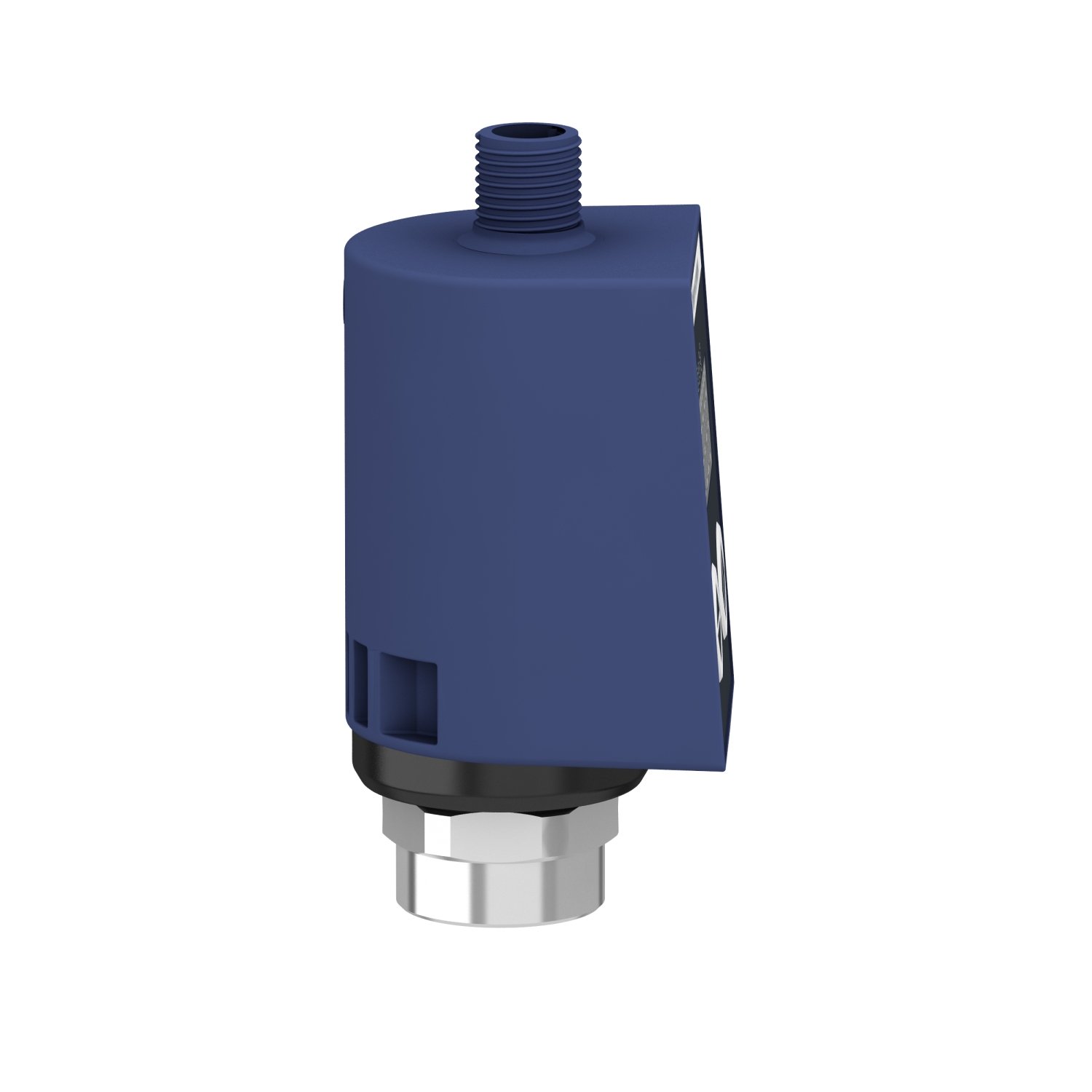

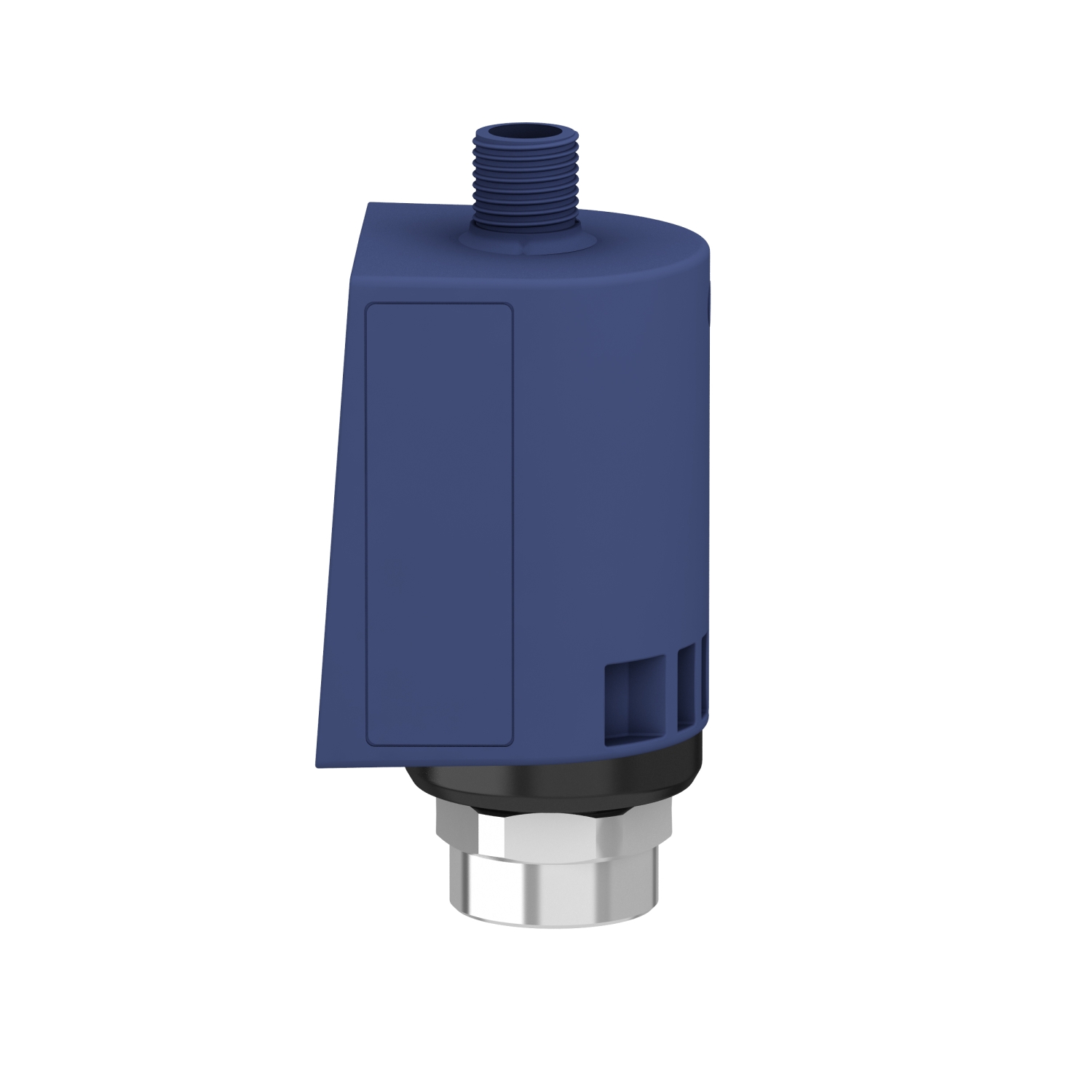

Trykktransmitter display 600Bar 24VDC 4-20mA
Trykktransmitter display 600Bar 24VDC analog utgang 4-20mA M12 han og vaesketilslutning G1/4"
Product details
Technical specifications
Suitable as guardyes
Suitable as 2-point controllerno
Suitable as limiterno
Engaging pressure0 - 600 bar
Initial setting0 - 600000 hPa
Switch off pressure0 - 600 bar
End setting0 - 600000 hPa
Pressure-switching differential18 bar
Max. test pressure1500 bar
Bursting pressure2500 bar
Medium temperature-20 - 80 °C
Thread sizeOther
Rated voltage Ue at DC24 - 24 V
Initial value measuring range pressure3000000 Pa
End value measuring range pressure9999999.999 Pa
Product codes
SAPCCL995
El number4306433
Product number4306433
GTIN/EAN3666916020395
Manufacturer part numberXMLR600M0T25
Vendor material numberXMLR600M0T25
Basic information
Package measurements (L x W x H)75 x 130 x 65 mm
Package volume0.634 l
Package weight0.184 kg
Base uniteach
Package units1 / 20
Usage quantity–
UNSPSC41112410
BrandTELEMECANIQUE
Country of OriginCH Switzerland
Customs tariff code90262000
