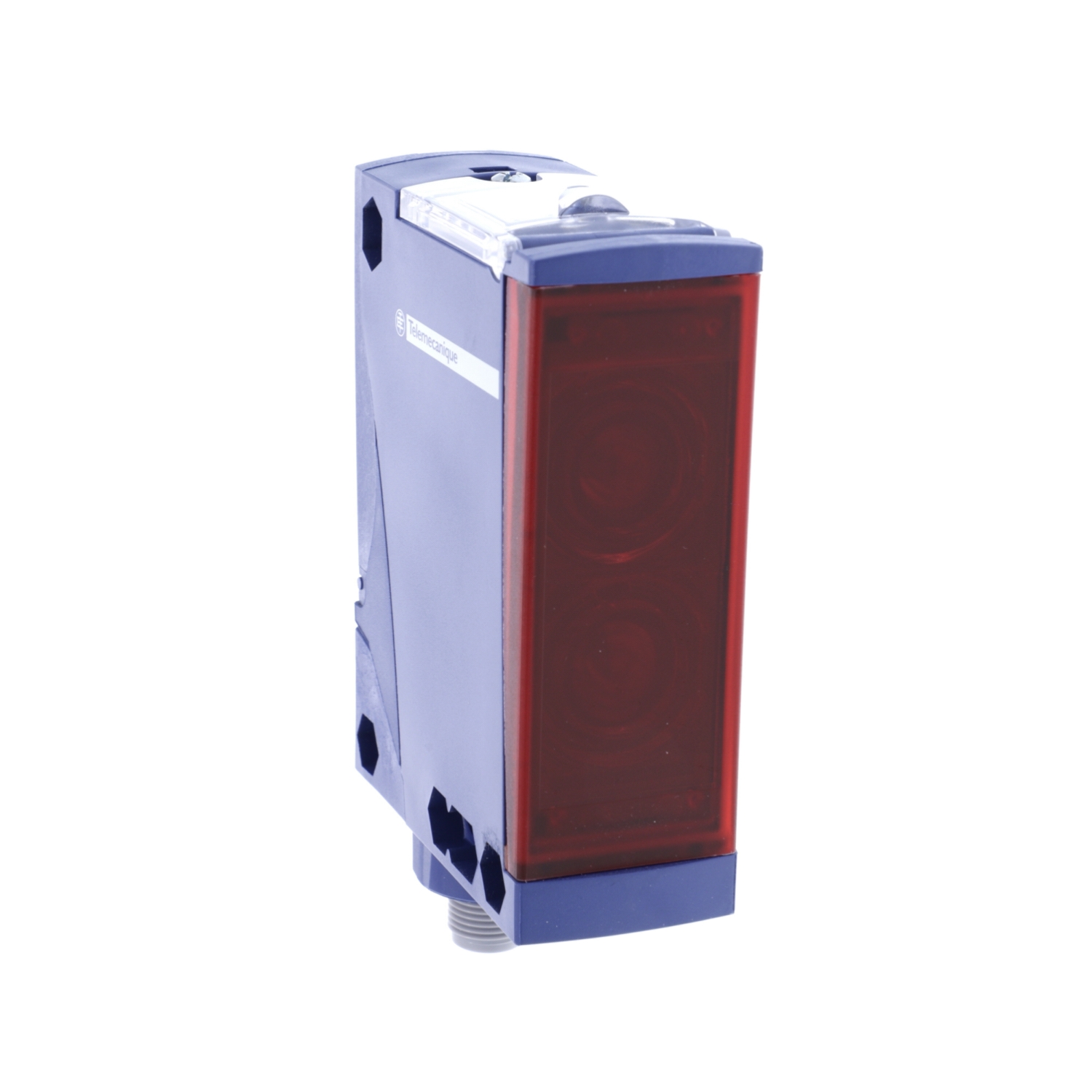

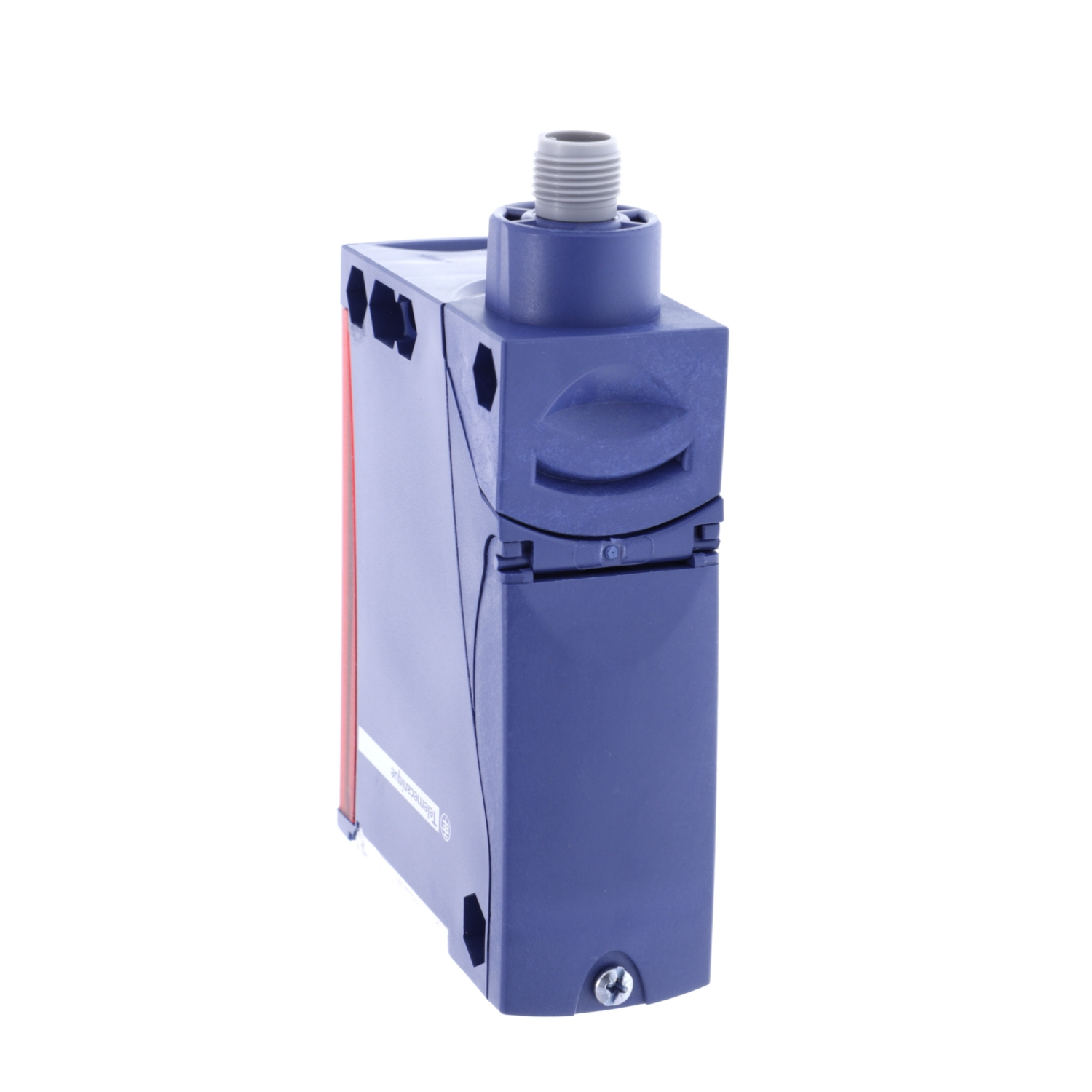

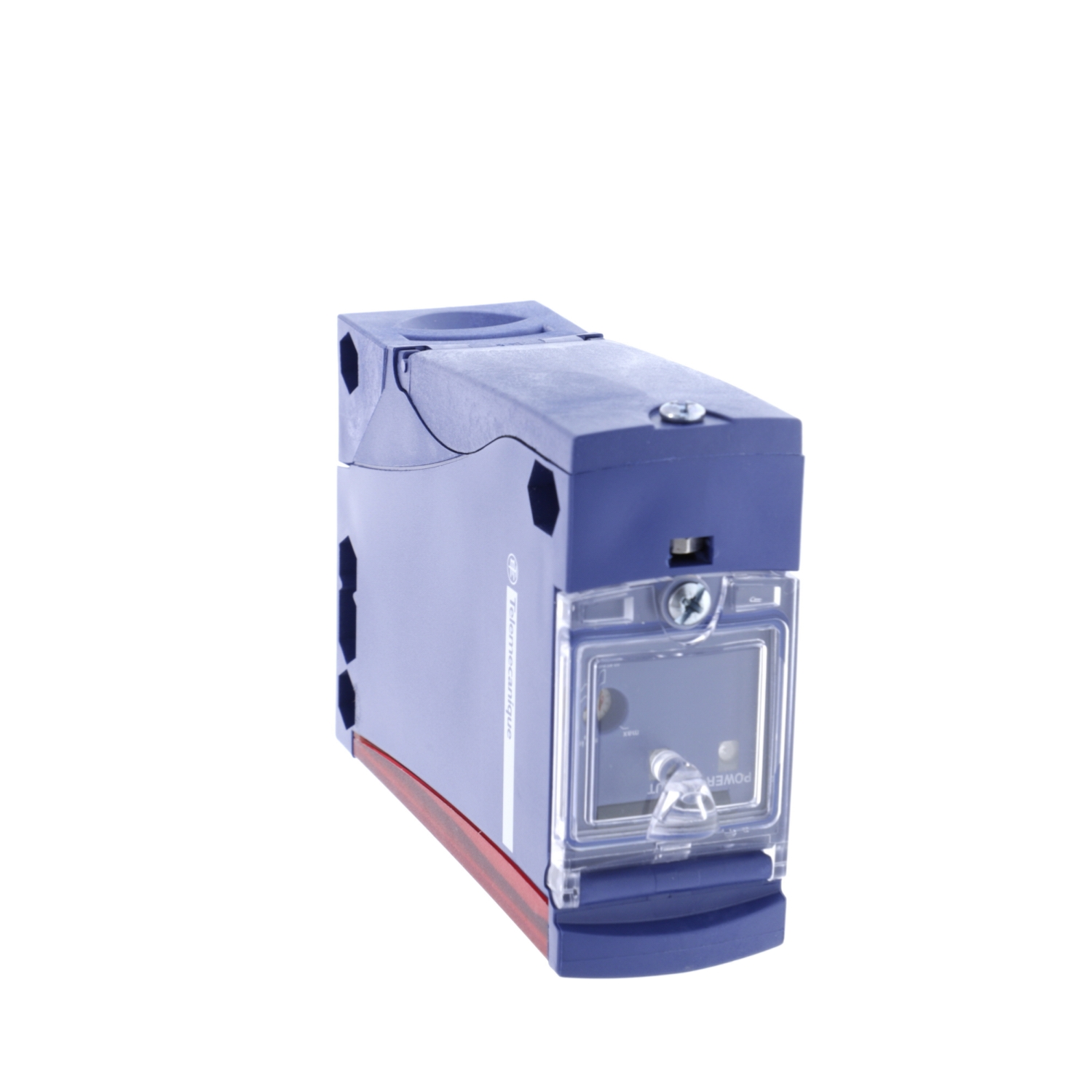

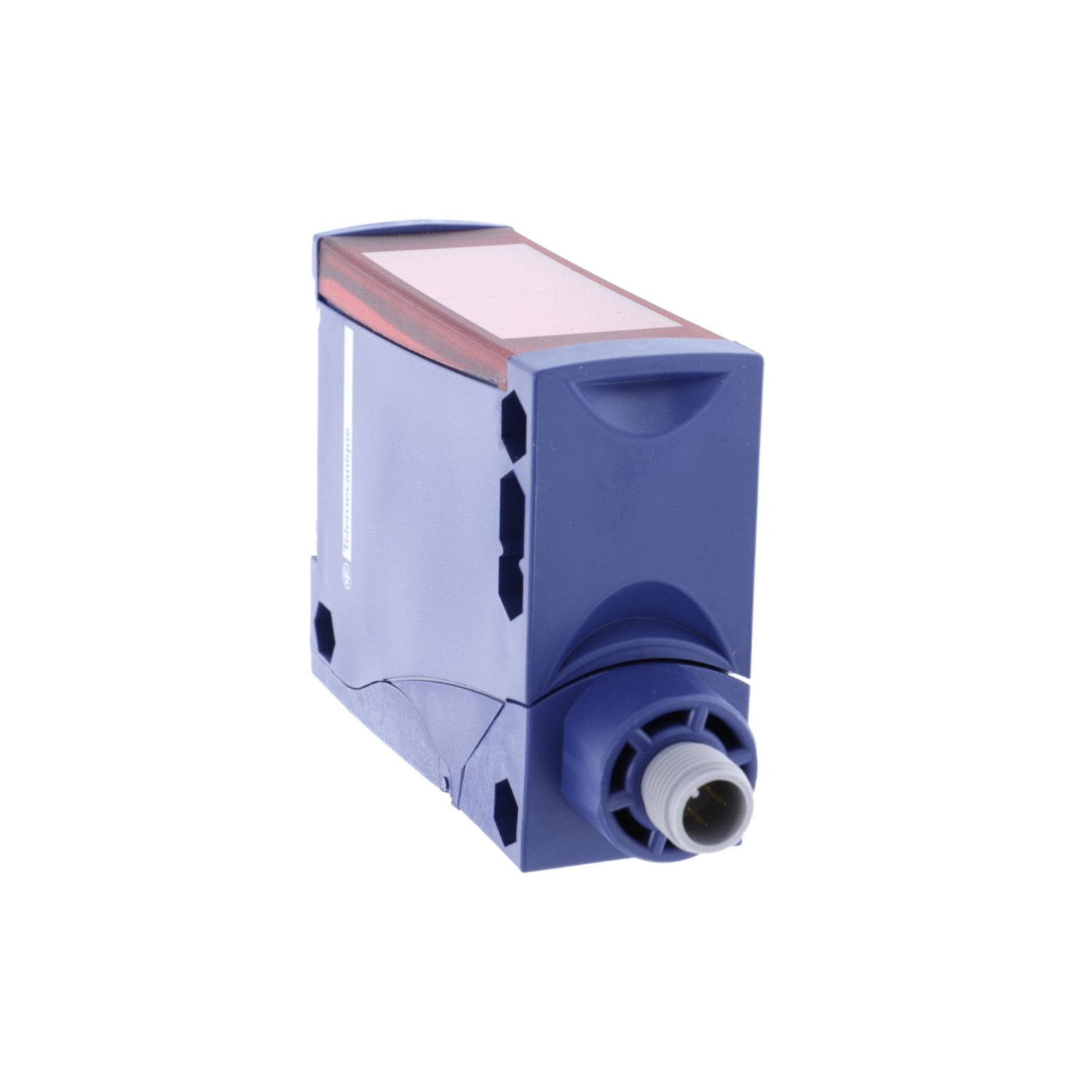

XUX POL.REF. PNP NO M/PLUGG XUX9APANM12
Product number
4350484
Fotocelle pol.ref. PNP no m/
Fotocelle polarisert refleks PNP NO med m12 plugg
Product details
Technical specifications
Pre failure noticeno
With time functionno
Rated switching distance11000 mm
Max. switching distance15000 mm
Max. output current100 mA
With reflectorno
Analogue output 0 V ... 10 Vno
Analogue output 0 mA ... 20 mAno
Analogue output 4 mA ... 20 mAno
Analogue output -10 V ... +10 Vno
With other analogue outputno
Setting procedureManual adjustment
With communication interface analogueno
With communication interface AS-Interfaceno
With communication interface CANOpenno
Product codes
SAPGAW429
El number4350484
Product number4350484
GTIN/EAN3666916035597
Manufacturer part numberXUX9APANM12
Vendor material numberXUX9APANM12
Basic information
Package measurements (L x W x H)96 x 132 x 42 mm
Package volume0.532 l
Package weight0.018 kg
Base uniteach
Package units1 / 11
Usage quantity1
UNSPSC32000000
BrandTELEMECANIQUE
Country of OriginNO Norway
Customs tariff code85364900
