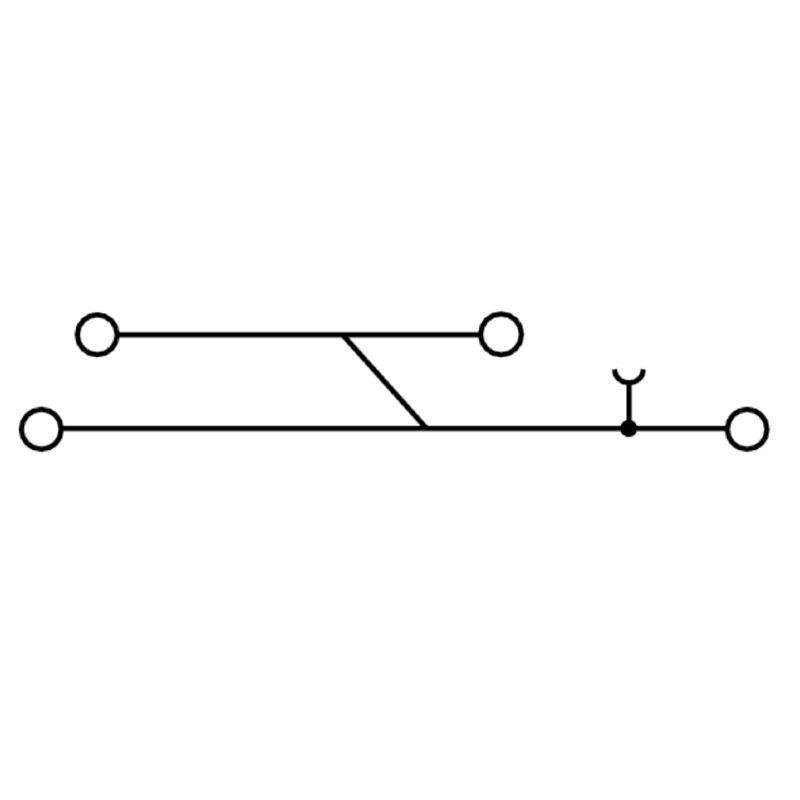

ETASJEKLEMME 2.5 MM², SKRUTILKOBLING, BEIGE
Product number
1270032
ETASJEKLEMME 2.5 MM²,
Gjennomgangsklemme, Merketverrsnitt: 2.5 mm², Tilkoblingstype: Skru tilkobling, Isolasjonsmateriale: Wemid, Farge på Isolasjonsmateriale: Beige, Installasjon: TS 35
Product details
Technical specifications
Connectable conductor cross section fine-strand without cable end sleeve0.5 - 4 mm²
Connectable conductor cross section fine-strand with cable end sleeve0.5 - 2.5 mm²
Connectable conductor cross section solid-core0.5 - 4 mm²
Connectable conductor cross section multi-wired1.5 - 4 mm²
Rated current In24 A
Rated voltage800 V
Type of electrical connection 1Screw connection
Number of levels2
Number of clamp positions per level2
Suitable for conductor materialCopper
Mounting methodDIN rail (top hat rail) 35 mm
Material insulation bodyThermoplastic
Width5.1 mm
Height61 mm
Depth62 mm
Product codes
SAPDCI177
El number1270032
Product number1270032
GTIN/EAN4032248138746
Manufacturer part number1041610000
Vendor material number1041610000
Basic information
Package measurements (L x W x H)158 x 132 x 72 mm
Package volume1.502 l
Package weight0.663 kg
Base uniteach
Package units50
Usage quantity–
UNSPSC39121432
BrandWEIDMÜLLER
Country of OriginRO Romania
Customs tariff code85369010
