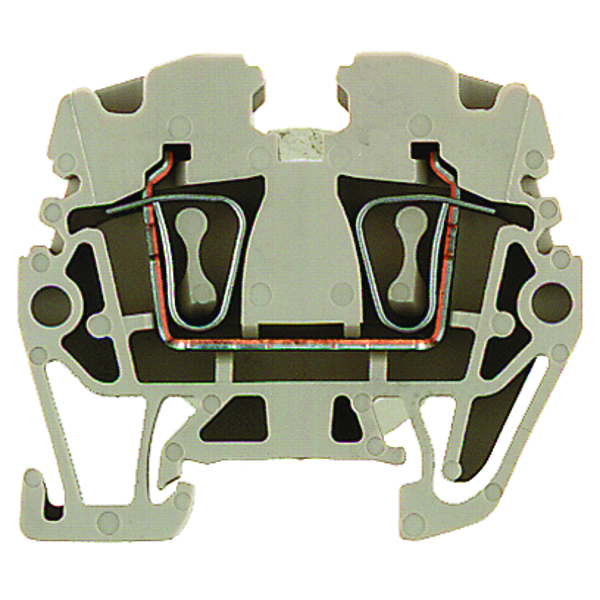

GJENNOMGANGSKLEMME 2.5 MM², 2 PUSH-IN, BEIGE
Product number
1270866
GJENNOMGANGSKLEMME 2.5 MM², 2
Tilbehør
Product details
Technical specifications
Connectable conductor cross section fine-strand without cable end sleeve0.5 - 2.5 mm²
Connectable conductor cross section fine-strand with cable end sleeve0.5 - 2.5 mm²
Connectable conductor cross section solid-core0.5 - 4 mm²
Connectable conductor cross section multi-wired0.5 - 2.5 mm²
Rated current In24 A
Rated voltage500 V
Type of electrical connection 1Spring clamp connection
Number of levels1
Number of clamp positions per level2
Suitable for conductor materialCopper
Mounting methodDIN rail (top hat rail) 15 mm
Material insulation bodyThermoplastic
Width5.1 mm
Height35 mm
Depth30 mm
Product codes
SAPDCI088
El number1270866
Product number1270866
GTIN/EAN4008190376789
Manufacturer part number1720920000
Vendor material number1720920000
Basic information
Package measurements (L x W x H)38 x 110 x 186 mm
Package volume0.777 l
Package weight0.388 kg
Base uniteach
Package units100
Usage quantity–
UNSPSC39121432
BrandWEIDMÜLLER
Country of OriginCZ Czech Republic
Customs tariff code85369010
