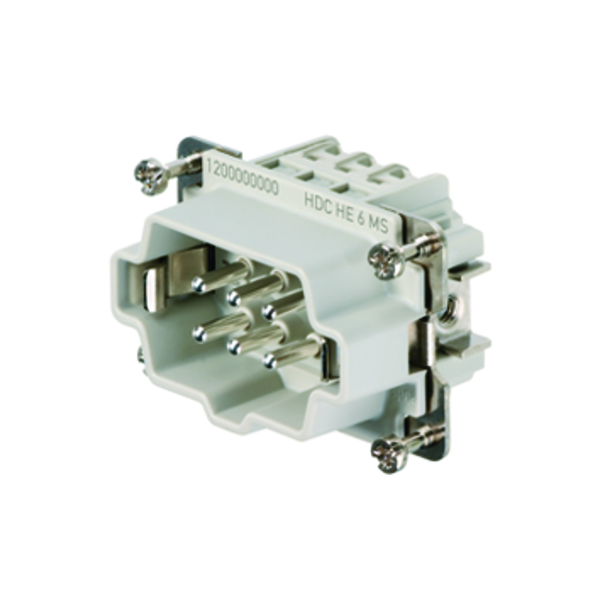

HDC INNSATS, HANN, 500 V, 24 A, 6 + PE, SKRU, STR: 3
Product number
1572110
HDC INNSATS, HANN, 500 V, 24
Innsats for maskinkontakter, Type: Male, Nominell spenning (DIN EN 61984): 500 V, Nominell strøm (DIN EN 61984): 24 A, Poler: 6 + PE, Tilkoblingsteknikk: Skrutilkobling, Størrelse: 3
Product details
Technical specifications
Contact insert without contactsno
Contact typePin
Number of poles6
Material connector insertThermoplastic
Rated current In24 A
Rated voltage500 V
Rated surge voltage6 kV
Pollution degree3
Type of electric connectionScrew connection
With wire protectionyes
Connectable conductor cross section fine-strand without cable end sleeve0.5 - 2.5 mm²
Connectable conductor cross section fine-strand with cable end sleeve2.5 - 2.5 mm²
Connectable conductor cross section solid-core0.5 - 2.5 mm²
Connectable conductor cross section multi-wired0.5 - 2.5 mm²
Material of contact surfaceSilver
Product codes
SAPDCH989
El number1572110
Product number1572110
GTIN/EAN4008190067564
Manufacturer part number1200000000
Vendor material number1200000000
Basic information
Package measurements (L x W x H)52 x 36 x 38 mm
Package volume0.071 l
Package weight0.049 kg
Base uniteach
Package units1
Usage quantity–
UNSPSC39121522
BrandWEIDMÜLLER
Country of OriginCN China
Customs tariff code85366900
Sustainability info
Global Warming Potential (GWP)
GWP value for A1– A30.4667
GWP uniteach
Data source for GWPEandoX
