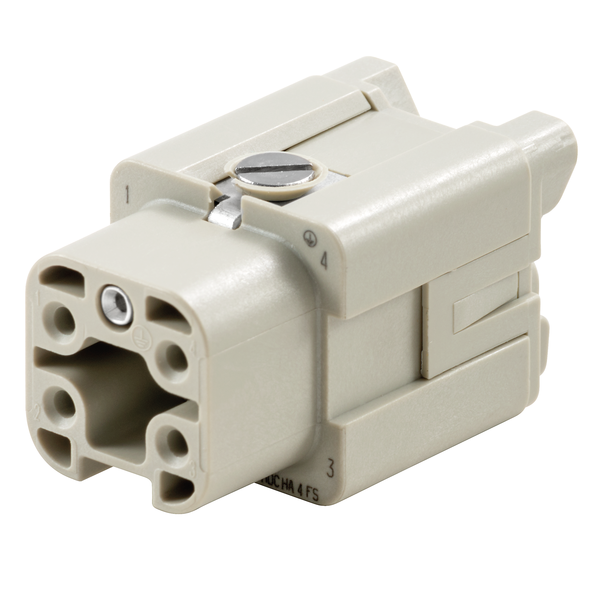

HDC INNSATS, HUNN, 250 V, 22 A, 4 + PE, SKRU, STR: 1
Product number
1572109
HDC INNSATS, HUNN, 250 V, 22
RockStar, HDC innsats, Type: Hunn, Nominell spenning (DIN EN 61984): 250 V, Nominell strøm (DIN EN 61984): 22 A, Antall poler: 4 + PE, Type tilkobling: skrue tilkobling, Str: 1
Product details
Technical specifications
Contact insert without contactsno
Contact typeBus
Number of poles4
Material connector insertThermoplastic
Rated current In16 A
Rated voltage400 V
Rated surge voltage4 kV
Pollution degree3
Type of electric connectionScrew connection
With wire protectionyes
Connectable conductor cross section fine-strand without cable end sleeve0.5 - 2.5 mm²
Connectable conductor cross section solid-core0.5 - 2.5 mm²
Connectable conductor cross section multi-wired0.5 - 2.5 mm²
Material of contact surfaceSilver
Material of contact insertThermoplastic
Product codes
SAPDCH988
El number1572109
Product number1572109
GTIN/EAN4008190178741
Manufacturer part number1498400000
Vendor material number1498400000
Basic information
Package measurements (L x W x H)28 x 21 x 21 mm
Package volume0.012 l
Package weight0.024 kg
Base uniteach
Package units1
Usage quantity–
UNSPSC39121522
BrandWEIDMÜLLER
Country of OriginCN China
Customs tariff code85366900
