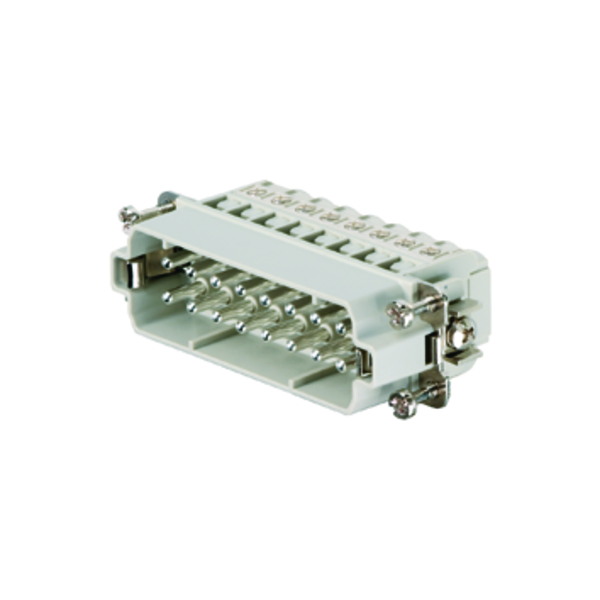

HDC INNSATS, STR: 5, HANN, 22 A, ANTALL POLER: 16 + PE, SKRU
Product number
1500227
HDC INNSATS, STR: 5, HANN, 22
RockStar, HDC innsats, Type: Hann, Nominell spenning (DIN EN 61984): 250 V, Nominell strøm (DIN EN 61984): 22 A, Antall poler: 16 + PE, Type tilkobling: skrue tilkobling, Str: 5
Product details
Technical specifications
Contact insert without contactsno
Contact typePin
Number of poles16
Material connector insertThermoplastic
Rated current In16 A
Rated voltage250 V
Rated surge voltage4 kV
Pollution degree3
Type of electric connectionScrew connection
With wire protectionyes
Connectable conductor cross section fine-strand without cable end sleeve0.5 - 2.5 mm²
Connectable conductor cross section fine-strand with cable end sleeve0.5 - 2.5 mm²
Connectable conductor cross section solid-core0.5 - 2.5 mm²
Connectable conductor cross section multi-wired0.5 - 2.5 mm²
Material of contact surfaceSilver
Product codes
SAPDCI280
El number1500227
Product number1500227
GTIN/EAN4008190299392
Manufacturer part number1650770000
Vendor material number1650770000
Basic information
Package measurements (L x W x H)73 x 35 x 24 mm
Package volume0.061 l
Package weight0.067 kg
Base uniteach
Package units1
Usage quantity–
UNSPSC39121522
BrandWEIDMÜLLER
Country of OriginCN China
Customs tariff code85366900
Sustainability info
Global Warming Potential (GWP)
GWP value for A1– A30.6347
GWP uniteach
Data source for GWPEandoX
