Multi level instalasjonsklemme AITB 2.5 BB N-L-PE
Product number
1207178
AITB 2.5 BB N-L-PE

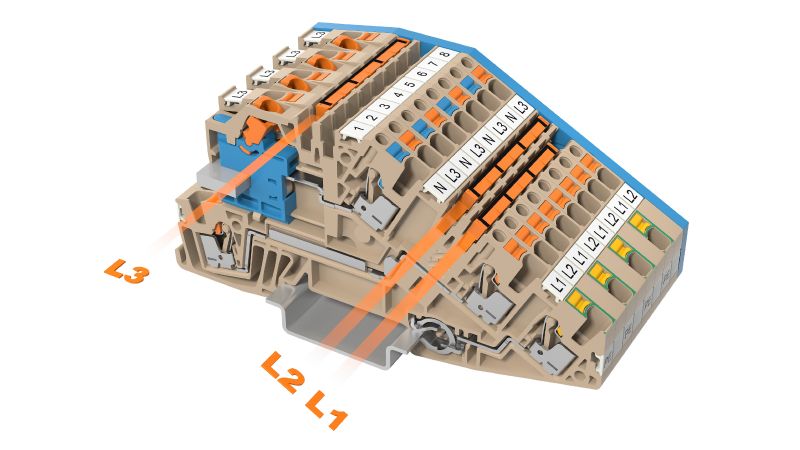

Multi level installation klemme, PUSH IN
AITB 2.5 BB N-L-PE
Multi level installation klemme, PUSH IN, mørk beige, 2.5 mm², 24 A, 250 V, Antall tilkoblinger: 5, Antall nivåer: 3
Product details
Technical specifications
Connectable conductor cross section fine-strand without cable end sleeve0.14 - 4 mm²
Connectable conductor cross section fine-strand with cable end sleeve0.14 - 2.5 mm²
Connectable conductor cross section solid-core0.14 - 4 mm²
Connectable conductor cross section multi-wired0.14 - 4 mm²
Rated current In24 A
Rated voltage250 V
Type of electrical connection 1Push-in clamp connection
Type of electrical connection 2Push-in clamp connection
Number of potentials3
Material insulation bodyOther
Operating temperature-60 - 130 °C
Inflammability class of insulation material according to UL94V0
Width5.1 mm
Height103 mm
Depth50.1 mm
Product codes
SAPDPW680
El number1207178
Product number1207178
GTIN/EAN4064675030522
Manufacturer part number2668940000
Vendor material number2668940000
Basic information
Package measurements (L x W x H)150 x 50 x 5 mm
Package volume0.038 l
Package weight0.02 kg
Base uniteach
Package units1 / 50
Usage quantity–
UNSPSC32000000
BrandWEIDMÜLLER
Country of OriginDE Germany
Customs tariff code85369010
