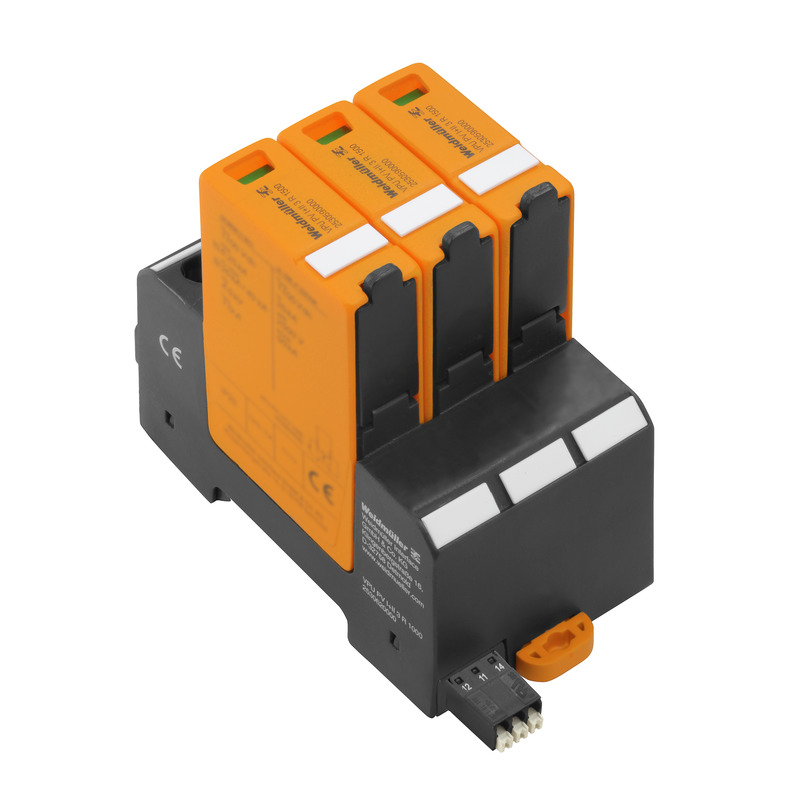

Overspenningsvern m/ fjernk. VPU PV I+II 3 R 1500
Product number
6610069
Surge voltage arrester, with remote contact, Type I + II
Device for surge protection in energy engineering and power supply. The device should be installed close to the feed-in of the system to be protected.
Product details
Technical specifications
System configuration DCyes
Number of conductors (without earthing)3
Nominal voltage DC1500 V
Integrated short-circuit protectionno
Integrated backup fuseno
Mounting methodDIN rail (top hat rail) 35 mm
Construction size3 modular spacing
Max. conductor cross section solid (solid, stranded)35 mm²
Max. conductor cross section flexible (fine-strand)25 mm²
With remote signalling contactyes
Signalling at the deviceOptical
Category type 2yes
Degree of protection (IP)IP20
Product codes
SAPDGU477
El number6610069
Product number6610069
GTIN/EAN4050118540802
Manufacturer part number2530590000
Vendor material number2530590000
Basic information
Package measurements (L x W x H)111 x 102 x 66 mm
Package volume0.747 l
Package weight0.48 kg
Base uniteach
Package units1
Usage quantity–
UNSPSC32000000
BrandWEIDMÜLLER
Country of OriginSI Slovenia
Customs tariff code85363000
Documents (2)
Sustainability info
Global Warming Potential (GWP)
GWP value for A1– A32.4091
GWP uniteach
Data source for GWPEandoX
