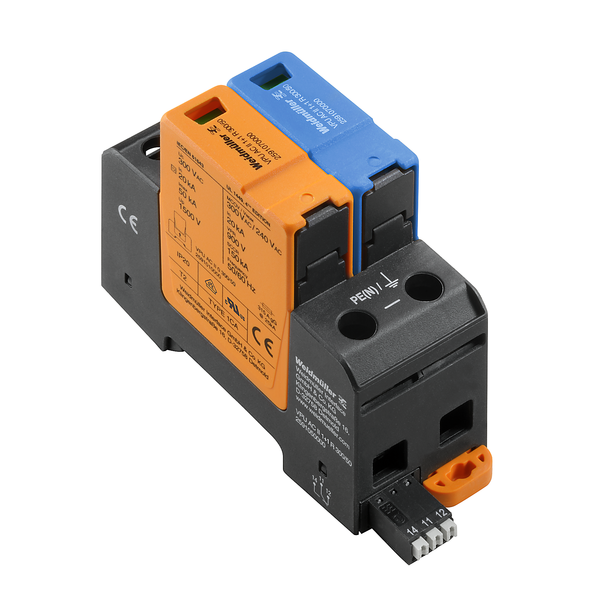

OVERSPENNINGSVERN VPU AC II 1+1 R 300/50 KA
Product number
1224464
OVERSPENNINGSVERN VPU AC II
Overspenningsvern VPU AC II 1+1 R 300/50 kA
Product details
Technical specifications
System configuration DCno
System configuration ITyes
System configuration TNyes
System configuration TN-Cno
System configuration TN-C-Syes
System configuration TN-Syes
System configuration TTyes
System configuration otheryes
Number of conductors (without earthing)2
Nominal discharge surge current (8/20)20 kA
Max. discharge surge current (8/20)20 kA
Nominal voltage AC230 V
Max. continuous voltage AC300 V
Short-circuit breaking capacity (Isccr)50 kA
Integrated short-circuit protectionyes
Product codes
SAPDCI232
El number1224464
Product number1224464
GTIN/EAN4050118599862
Manufacturer part number2591070000
Vendor material number2591070000
Basic information
Package measurements (L x W x H)110 x 102 x 48 mm
Package volume0.539 l
Package weight0.269 kg
Base uniteach
Package units1
Usage quantity–
UNSPSC39121610
BrandWEIDMÜLLER
Country of OriginSI Slovenia
Customs tariff code85363000
