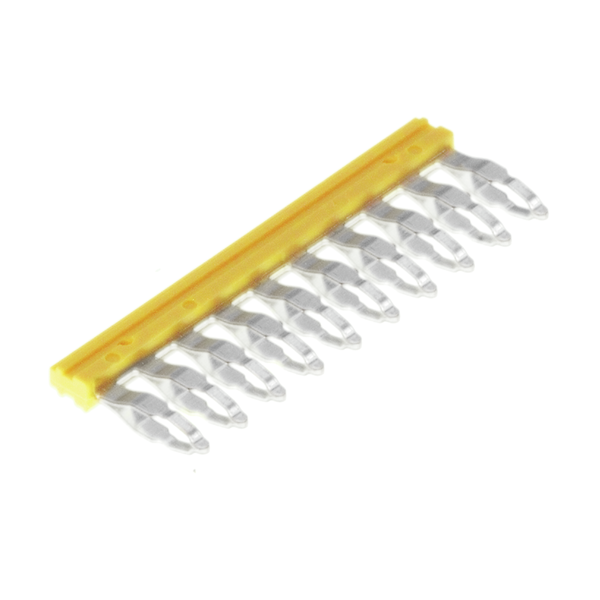

PARALLEL CONNECTOR ZQV 1,5 / R3,5/10 10-NAPAINEN
Product number
1203877
Cross-connector (terminal), Plugged, No. of poles: 10, Pitch, in mm: 3.50, Insulated: Yes, 17.5 A, Yellow
Cross-connection for flexible potential distribution.
Product details
Technical specifications
ModelTransverse connector
Number of bridged clamps10
Explosion-tested version 'Ex e'yes
Rated current In17.5 A
Rated voltage0 V
Insulatedyes
With contact protectionyes
Mounting methodPluggable
Modular spacing3.5 mm
ColourYellow
Product codes
SAPANO177
El number1203877
Product number1203877
GTIN/EAN4032248027415
Manufacturer part number1754290000
Vendor material number1754290000
Basic information
Package measurements (L x W x H)0 x 0 x 0 mm
Package volume0.013 l
Package weight0.002 kg
Base uniteach
Package units1 / 20
Usage quantity–
UNSPSC39121421
BrandWEIDMÜLLER
Country of OriginCZ Czech Republic
Customs tariff code85389000
