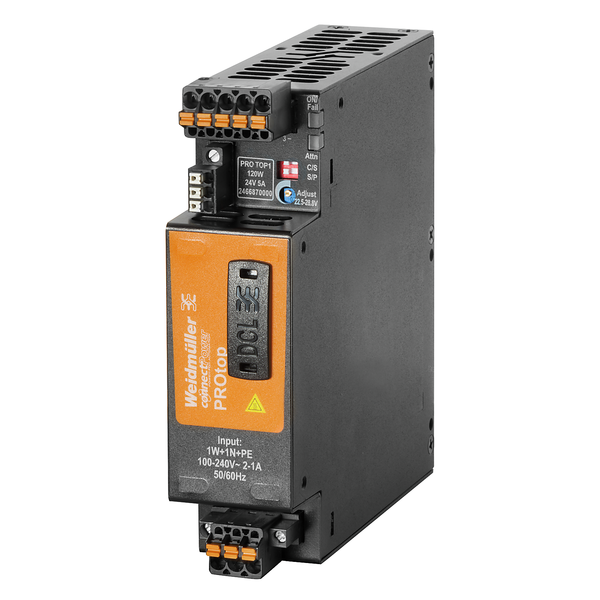

PRO TOP1 120W 24V 5A
Product number
6601363
Power supply, 120 W
Power supply unit for providing DC voltage.
Product details
Technical specifications
Voltage type (supply voltage)AC/DC
1st secondary output voltage24 - 24 V
Secondary voltage adjustableyes
Nominal value output voltage 124 V
Short-circuit-proofyes
Rated supply voltage AC 50 Hz100 - 240 V
Rated supply voltage AC 60 Hz100 - 240 V
Rated supply voltage DC120 - 340 V
Output voltage stabilizedyes
Power consumption131.9 VA
Power output120 W
Stabilizedyes
Type of electric connectionSpring clamp connection
Suitable for distribution boardno
Width34 mm
Product codes
SAPDGU424
El number6601363
Product number6601363
GTIN/EAN4050118481457
Manufacturer part number2466870000
Vendor material number2466870000
Basic information
Package measurements (L x W x H)185 x 167 x 98 mm
Package volume3.028 l
Package weight0.85 kg
Base uniteach
Package units1
Usage quantity–
UNSPSC32000000
BrandWEIDMÜLLER
Country of OriginCN China
Customs tariff code85044090
