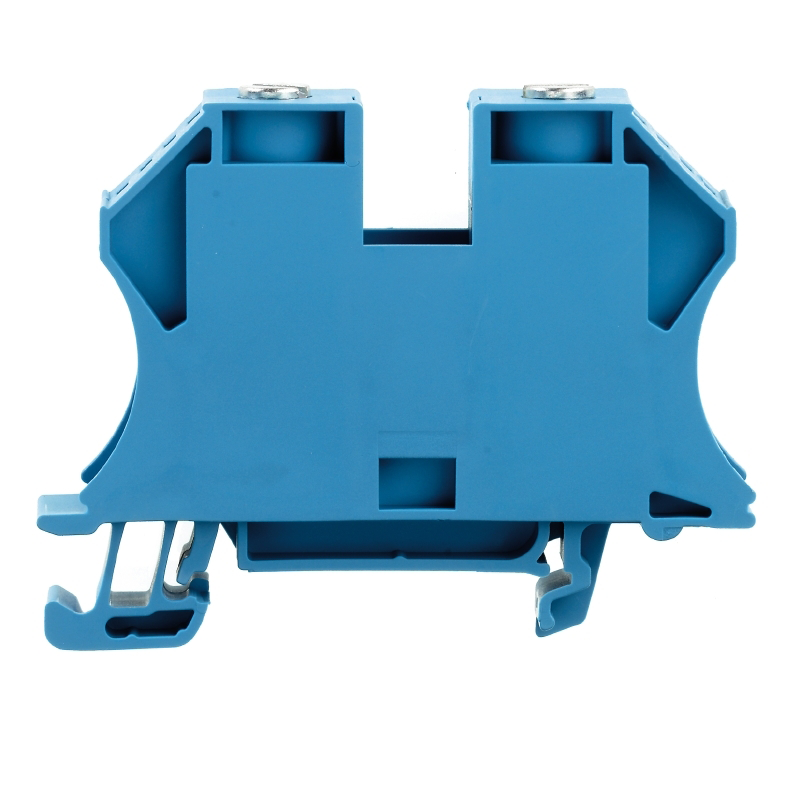

TERMINAL BLOCK 1040580000 WDU 35N BL
Product number
1270065
Feed-through terminal block, Screw connection, 35 mm², 500 V, 125 A, Number of connections: 2
Terminal for connection or joining of wires, cores and cables with a durable secure contact. Hardened steel for the mechanical strength and high-grade tin-coated copper for optimum conductivity.
Product details
Technical specifications
Connectable conductor cross section fine-strand without cable end sleeve2.5 - 35 mm²
Connectable conductor cross section fine-strand with cable end sleeve2.5 - 35 mm²
Connectable conductor cross section solid-core2.5 - 16 mm²
Connectable conductor cross section multi-wired2.5 - 50 mm²
Rated current In125 A
Rated voltage500 V
Type of electrical connection 1Screw connection
Number of levels1
Number of clamp positions per level2
Suitable for conductor materialCopper
Mounting methodDIN rail (top hat rail) 35 mm
Material insulation bodyThermoplastic
Operating temperature-60 - 130 °C
Width16 mm
Height66 mm
Product codes
SAPANM741
El number1270065
Product number1270065
GTIN/EAN4008190353834
Manufacturer part number1040480000
Vendor material number1040480000
Basic information
Package measurements (L x W x H)0 x 0 x 0 mm
Package volume0.03 l
Package weight0.021 kg
Base uniteach
Package units1 / 20
Usage quantity–
UNSPSC39121410
BrandWEIDMÜLLER
Country of OriginRO Romania
Customs tariff code85369010
