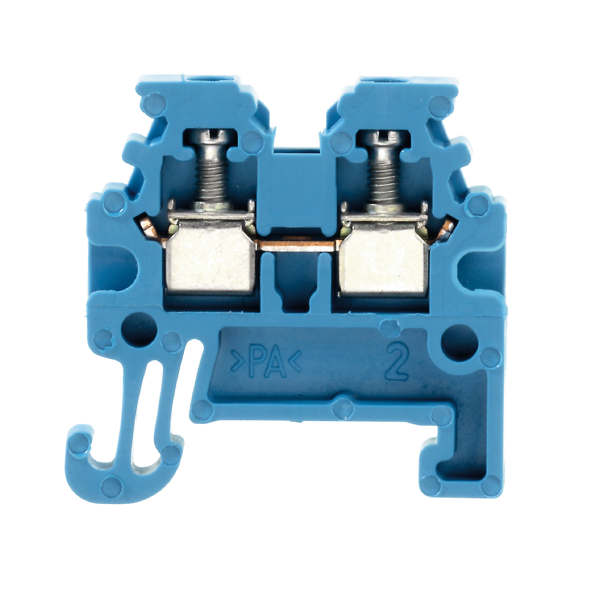

TERMINAL BLOCK 1754170000 / WDU 1,5/R3,5
Product number
1203871
Feed-through terminal block, Screw connection, 1.5 mm², 400 V, 17.5 A, Number of connections: 2
Terminal for connection or joining of wires, cores and cables with a durable secure contact. Hardened steel for the mechanical strength and high-grade tin-coated copper for optimum conductivity.
Product details
Technical specifications
Connectable conductor cross section fine-strand without cable end sleeve0.5 - 1.5 mm²
Connectable conductor cross section fine-strand with cable end sleeve0.5 - 1.5 mm²
Connectable conductor cross section solid-core0.5 - 1.5 mm²
Connectable conductor cross section multi-wired1.5 - 1.5 mm²
Rated current In17.5 A
Rated voltage400 V
Type of electrical connection 1Screw connection
Number of levels1
Number of clamp positions per level2
Suitable for conductor materialCopper
Mounting methodDIN rail (top hat rail) 15 mm
Material insulation bodyThermoplastic
Operating temperature-60 - 130 °C
Width3.5 mm
Height24.5 mm
Product codes
SAPANM709
El number1203871
Product number1203871
GTIN/EAN4032248020744
Manufacturer part number1754170000
Vendor material number1754170000
Basic information
Package measurements (L x W x H)0 x 0 x 0 mm
Package volume0.003 l
Package weight0.002 kg
Base uniteach
Package units1 / 100
Usage quantity–
UNSPSC39121410
BrandWEIDMÜLLER
Country of OriginCZ Czech Republic
Customs tariff code85369010
