schneider Tidsmodul, elektronisk la2kt2e

TIDSMODUL, ELEKTRONISK LA2KT2E

Produktnummer
4176040

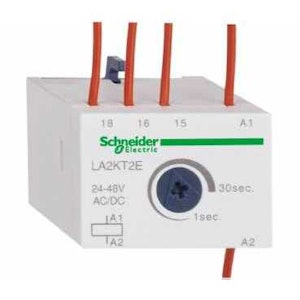

TeSys K -Time delay auxiliary contact block, 1 C/O, 24...48 V, 1…30s
TeSys K -Time delay auxiliary contact block, 1 C/O, 24...48 V, 1…30s. range of product: TeSys K, TeSys K control relay - range: TeSys - device short name: LA1 - product or component type: time delay auxiliary contact block - pole contact composition: 1 C/O. Benefits: .. Applications: .. Benefits: .. Applications: Machine manufacturers (all segments) and control system panel builders.... Benefits: Tesys k forms a complete range of reversing or non-reversing contactors, offering the best performance/compactness ratio and seamless integration in all your applications.... Applications: Industry, infrastructure, building, etc:, Simple control systems, Zones sensitive to noise, disturbed mains supplies: silent contactor, Use compatible with programmable controller outputs: low-consumption contactor, Switching contactor or relay coils, Powering control and signalling equipment..
Utgått
Produktnummer
Standard informasjon
Teknisk spesifikasjon
Dokumenter (4)
SAPGAV001
Produktnummer4176040
Elnummer4176040
EAN/GTIN3389110230048
ProdusentnummerLA2KT2E
LeverandørnummerLA2KT2E
Pakkestørrelse (LxBxH)48 x 48 x 50 mm
Volum0.115 l
Vekt0.004 kg
Baseenhetstk
Pakkeenhet1
Usage quantity1
UNSPSC32000000
MerkeSCHNEIDER
Antall NC-kontakter0
Antall NO-kontakter0
Antall vekselkontakter1
BrytefunksjonMed forsinket innkobling
Innstillingstid fra/til1 ... 30 s
VirkemåteElektronisk
